APPLICATION EXAMPLE
Road lighting with STRADA-IP-8MX-T2-C-PC
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Street lighting |
| Optics: | STRADA-IP-8MX-T2-C-PC |
| LED: | NICHIA 488 |
| Road width: | 10.5 m |
| Number of lanes: | 3 |
| Sidewalk width: | 1.5 m (each side) |
| Arrangement: | Single row, bottom |
| Maintenance factor: | 0.8 |
| Luminous flux (Luminaire): | 7239 lm |
| Pole distance: | 35 m |
| Mounting height: | 9 m |
| Overhang: | 2.4 m |
| Boom angle: | 5° |
| Boom lenght: | 0 m |

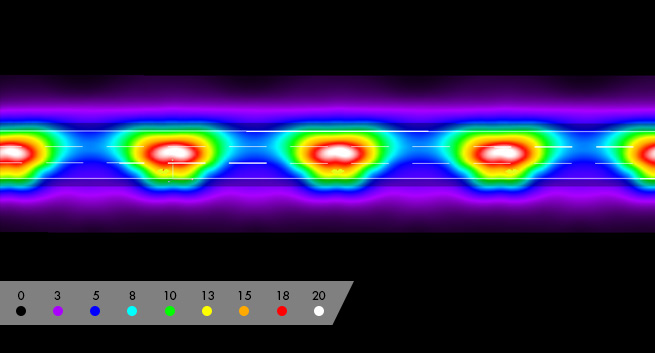

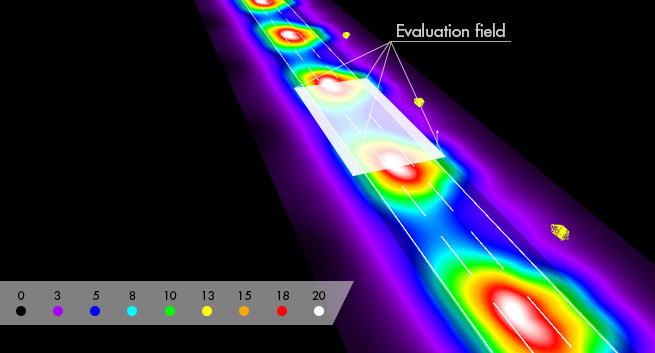

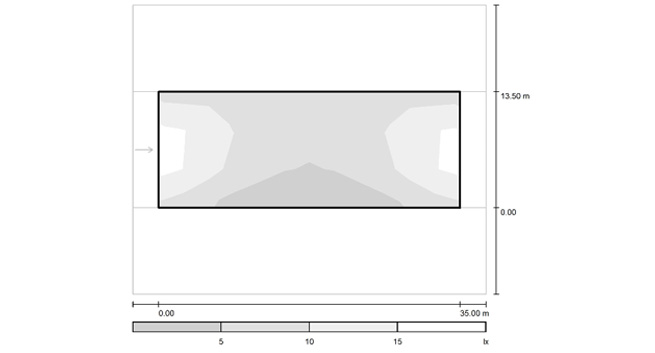

RESULTS:
| Average: | 9.2 lx |
| Min: | 3.8 lx |
| Max: | 20.0 lx |
| Uo: | 0.41 |
| CS16658_STRADA-IP-8MX-T2-C-PC |
