APPLICATION EXAMPLE

ME4a with STRADA-2X2-DNW


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

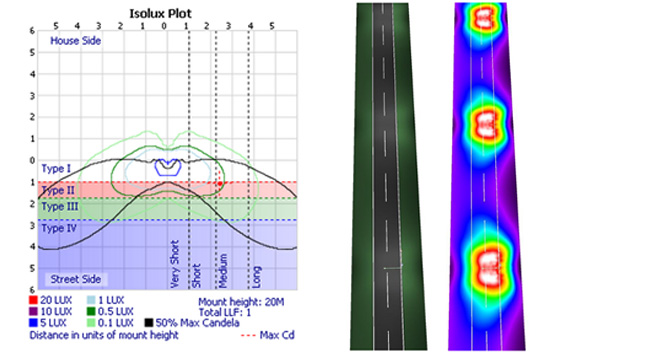

Type IV medium light distribution is suitable for wide roads with wide pole distances.

SETUP:

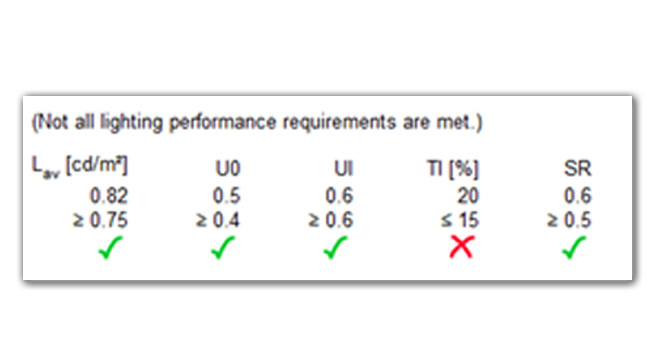

Lighting class: ME4a (EU)
Optics: STRADA-2X2-A-T
LED: CREE XM-L
Road width: 7 m
Number of lanes: 2
Arrangement: Single row, bottom
Maintenance factor: 1.0
Luminous flux (Luminaire): 8000 lm
Pole distance: 40 m
Mounting height: 8 m
Overhang: 0 m
Boom angle:
Boom length: 0 m

GO TO PRODUCT CARDS
C12360_STRADA-2X2-DNW
