APPLICATION EXAMPLE
ME4a with STRADA-2X2-A-T
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

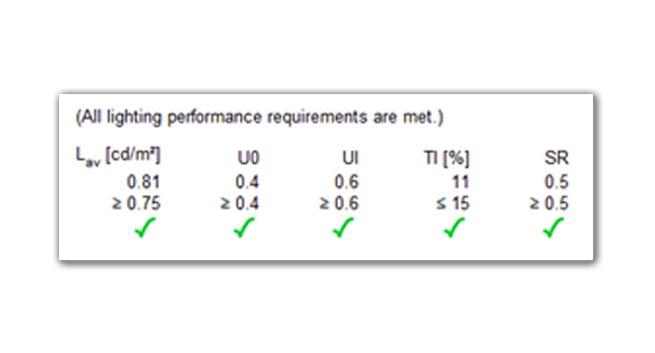

SETUP:
| Lighting class: | ME4a (EU) |
| Optics: | STRADA-2X2-A-T |
| Road width: | 7 m |
| Number of lanes: | 2 |
| Arrangement: | Single row, bottom |
| Maintenance factor: | 1.0 |
| Luminous flux (Luminaire): | 8000 lm |
| Pole distance: | 40 m |
| Mounting height: | 10 m |
| Overhang: | -0.5 m |
| Boom angle: | 5° |
| Boom length: | 0 m |

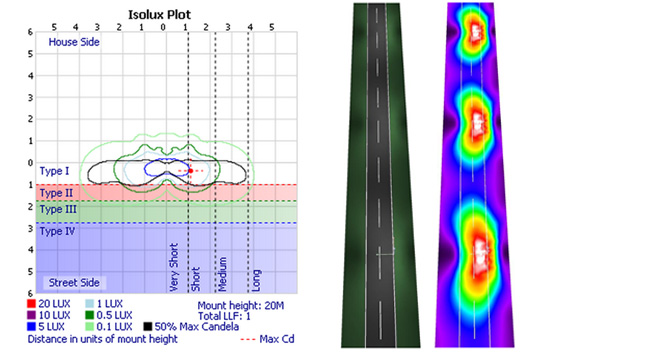

| C12419_STRADA-2X2-A-T |
