APPLICATION EXAMPLE

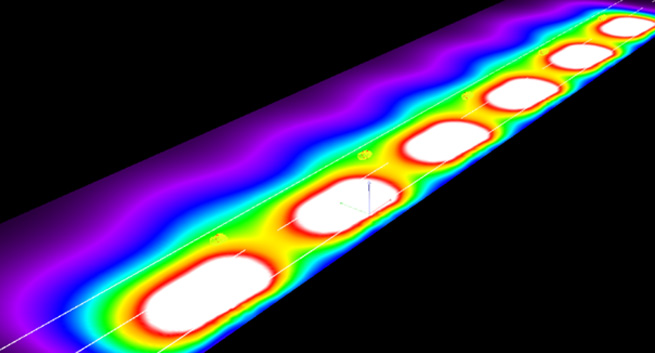

ME4a with JENNY-T4
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Lighting class: | ME4a |
| Optics: | JENNY-T4 |
| Road width: | 12 m |
| Number of lanes: | 2 |
| Arrangement: | Single row, bottom |
| Luminous flux (LEDs): | 9500 lm |
| Pole distance: | 22 m |
| Mounting height: | 8 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom length: | 0 m |
RESULTS:
| Average: | 19 lx |
| Max: | 35 lx |
| Uo: | 0.56 |
| F14563_JENNY-T4 |
