APPLICATION EXAMPLE
ME2 with STRADA-6X1-DWC
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

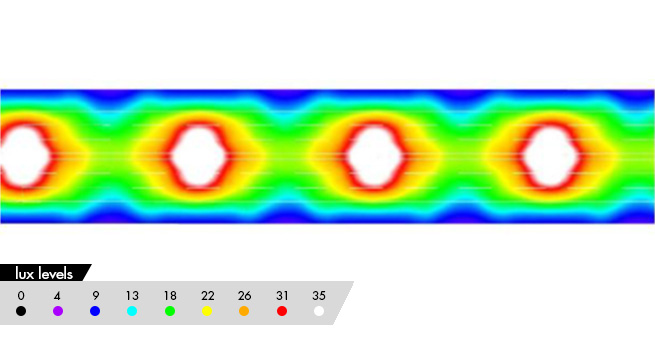

SETUP:

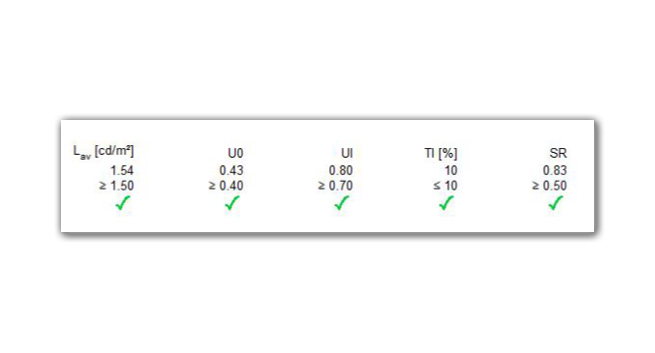

| Lighting class: | ME2 |
| Optics: | STRADA-T-6X1-DWC |
| Road width: | 10.5 m |
| Number of lanes: | 3 |
| Luminous flux (Luminaire): | 17 600 lm |
| Pole distance: | 42 m |
| Mounting height: | 14 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom length: | 0.5 m |
| C12449_STRADA-T-6X1-DWC | ||
| C13140_STRADA-T-6X1-DWC |
