APPLICATION EXAMPLE

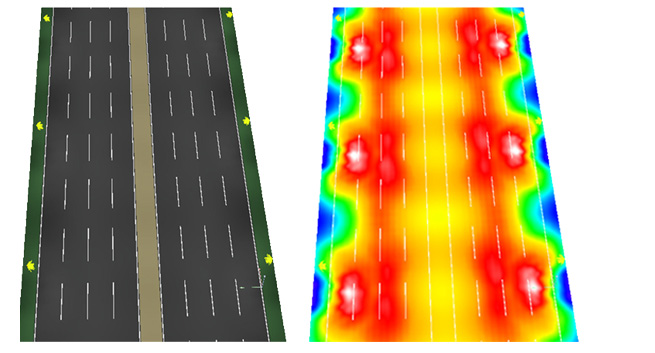

Freeway lighting with STRADA-FT and -FW
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Strong forward throwing optical design removes the need for tilting the luminaire head
SETUP:
Application: | Street lighting - Freeway |
Optics: | STRADA-FW and STRADA-FT mixed in one luminaire |
Street width: | 20 m + 5 m + 20 m |
Pole height: | 10 m |
Pole distance: | 35 m |
RESULTS:
Uo: | around 0.4 |
Ul: | around 0.8 |
C12086_STRADA-FW | ||
C12226_STRADA-FW | ||
CA12087_STRADA-FW | ||
C12049_STRADA-FT | ||
C13476_STRADA-FT | ||
CA12050_STRADA-FT | ||
CA13477_STRADA-FT |
