APPLICATION EXAMPLE
Warehouse lighting with LINNEA-GC
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Warehouse lighting |
| Optics: | LINNEA-GC-90 |
| LED: | Samsung LM561B Plus |
| Luminaire size: | L: 2400 mm / W: 60 mm / H: 50 mm |
| Luminous flux (Luminaire): | 8000 lm |
| Power (Luminaire): | 50 W |
| Luminaire efficiency: | 160 lm/W (Incl. optics 90 % and driver 95 %) |
| Luminaire spacing (all areas): | 3.6 x 3.3 m |

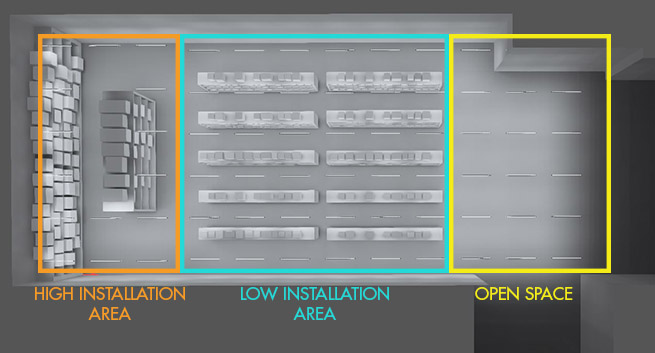

| Low installation area | |
| Mounting height: | 3.5 m |
| Shelf spacing: | 2.1 m |
| Shelf height: | 2 m |
| Number of luminaires: | 36 pcs |
| High installation area | |
| Mounting height: | 4.5 m |
| Number of luminaires: | 14 pcs |
| Open space | |
| Mounting height: | 3.5 m |
| Number of luminaires: | 16 pcs |

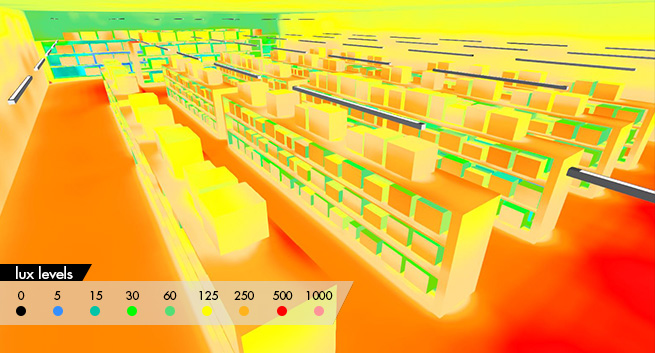

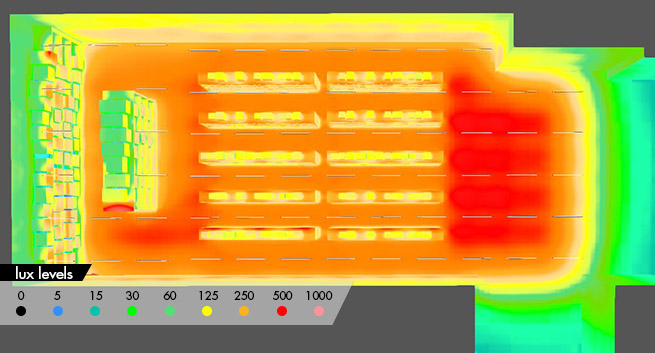

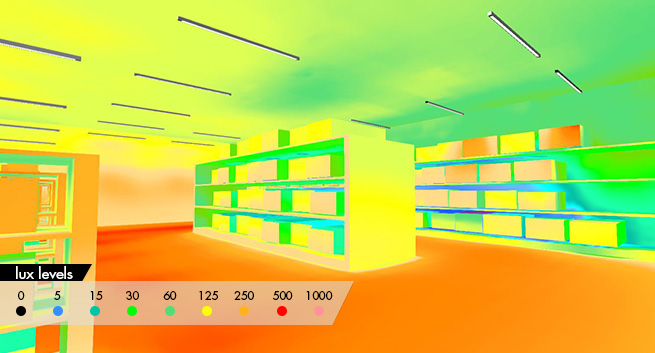

RESULTS:
| Low installation area | |
| Average (Floor between the shelves): | 380 lx |
| Uo: | 0.87 |
| UGR: | 22 |
| Average (Shelf): | 370 lx |
| Uo (Shelf): | 0.70 |
| High installation area | |
| Average (Floor): | 370 lx |
| Average (3 m high shelf): | 180 lx |
| Uo: | 0.50 |
| Uo (3 m high shelf): | 0.50 |
| UGR: | 21 |
| Open space | |
| Average (Floor): | 470 lx |
| Uo: | 0.75 |
| UGR: | 23 |
