APPLICATION EXAMPLE
Warehouse lighting with LINNEA-2R-O
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

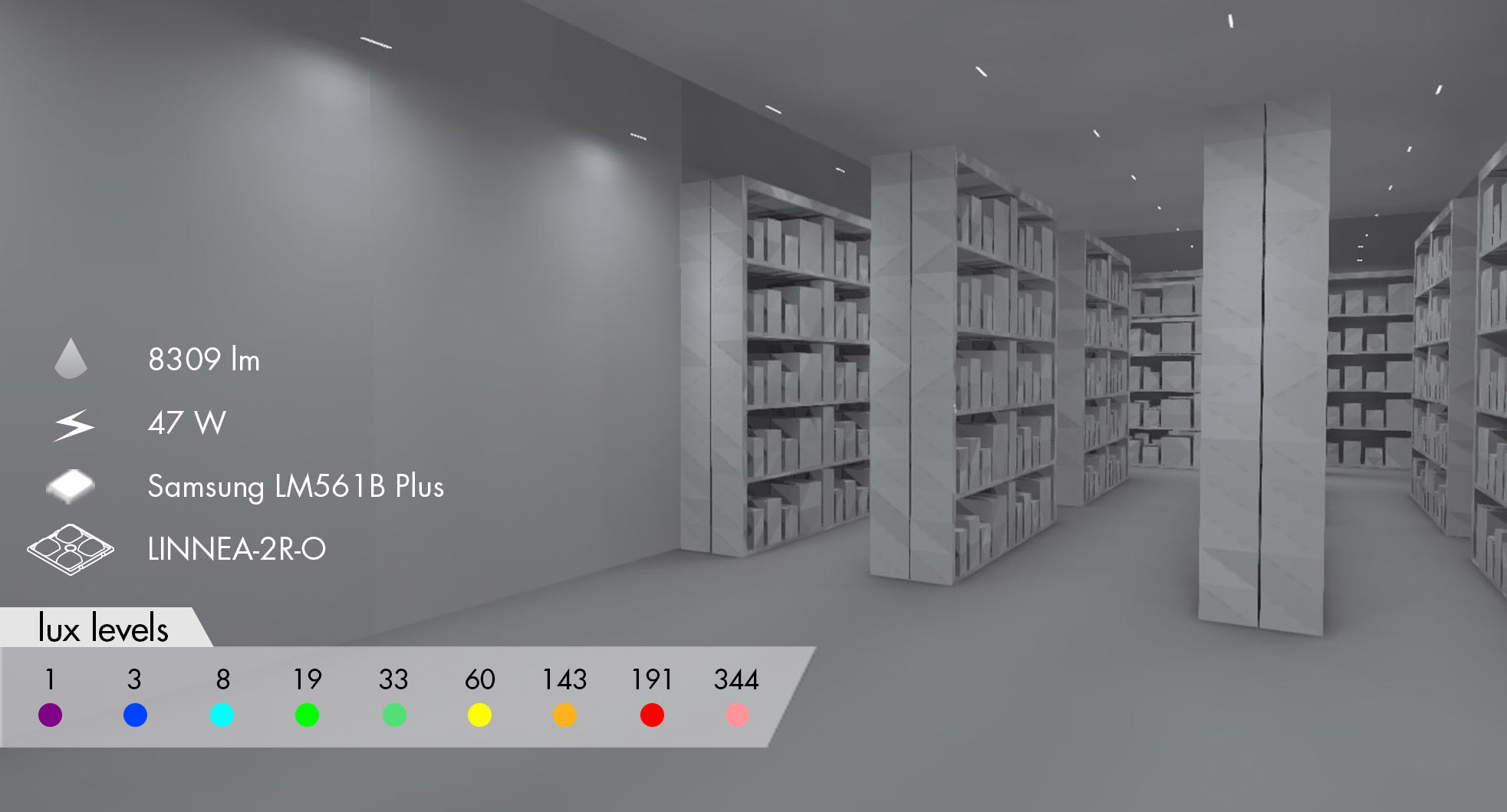

SETUP:
| Application: | Industrial lighting |
| Optics: | LINNEA-2R-O |
| LED: | Samsung LM561B Plus |
| Luminous flux (LEDs): | 9088 lm |
| Luminous flux (luminaire): | 8309 lm |
| Efficiency (Optics): | 91 % |
| Power (LEDs/Luminaire): | 47 W |
| Number of luminaires: | 37 pcs |
| Number of optics in luminaire: | 1 pcs |
| Room height: | 13 m |
| Mounting height: | 10.4 m |
| Distance between luminaire rows (shelves): | 6.6 m |
| Distance between luminaire centers in a row (shelves): | 5.3 m |
| Distance between luminaire rows (open area): | 6.8 m |
| Distance between luminaire centers in a row (open area): | 4.0 m |
| Maintenance factor: | 0.8 |
RESULTS:

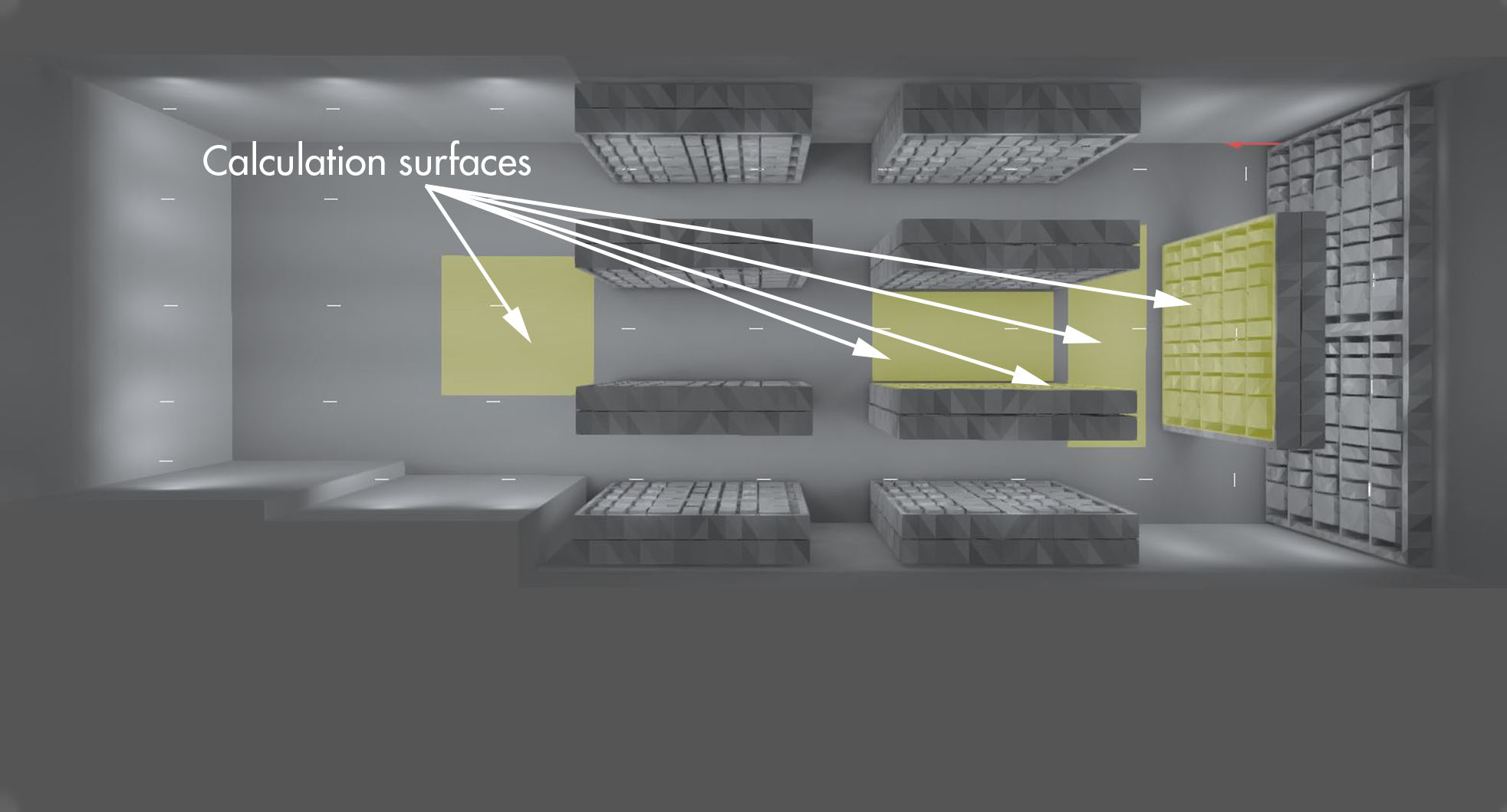

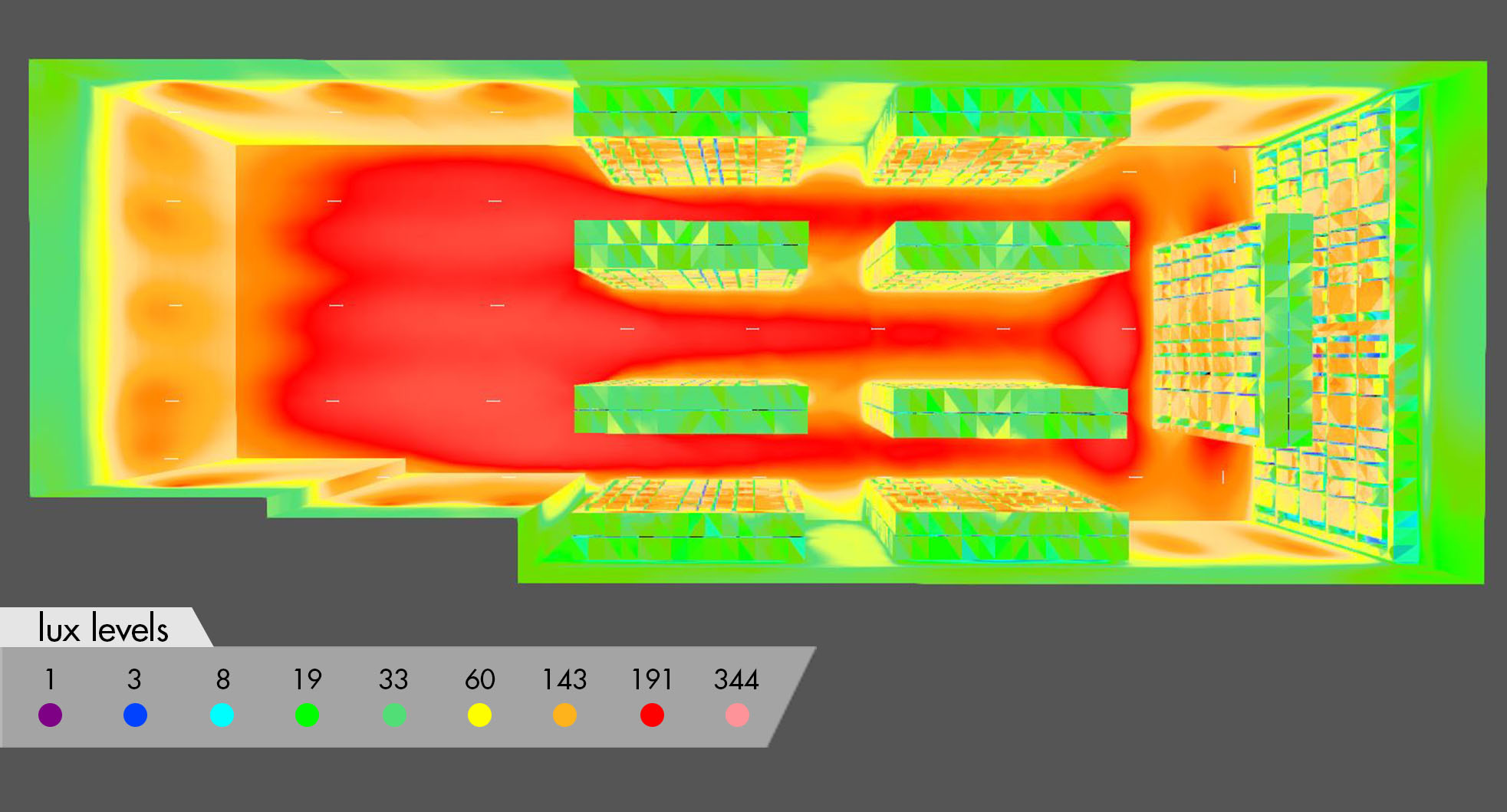

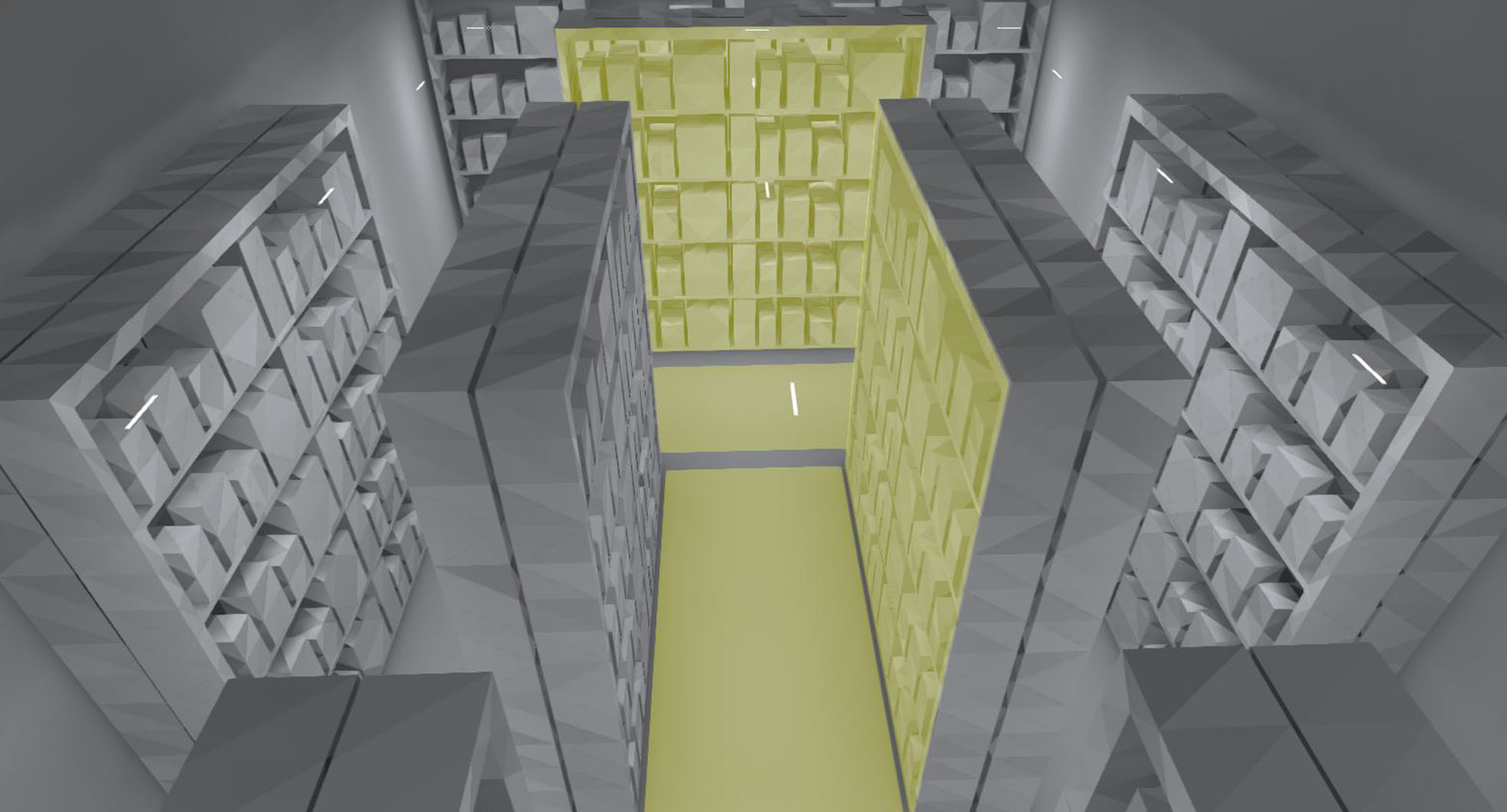

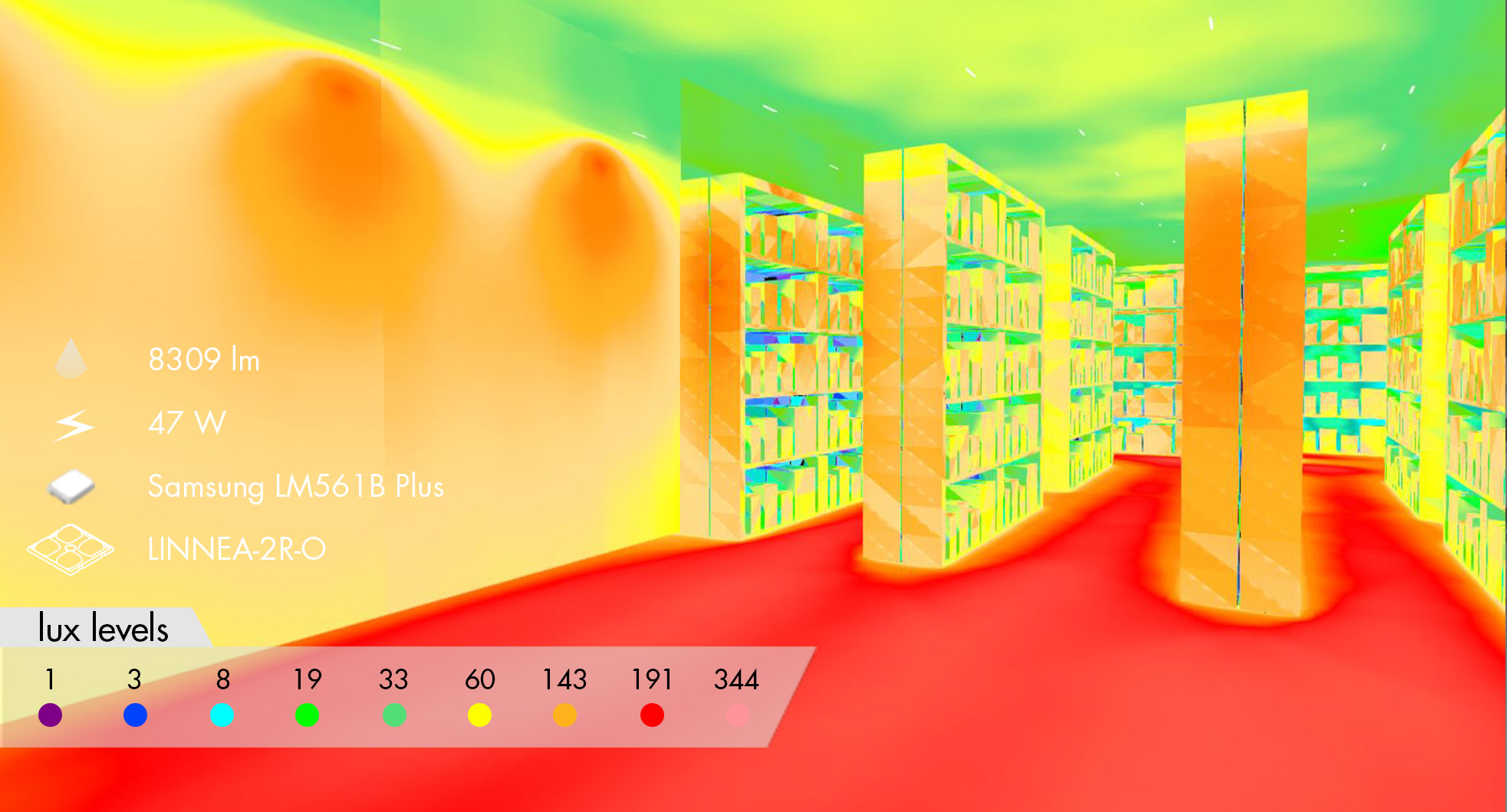

| Open area floor | Shelve on the back | Floor in front of back shelve | Shelve in the middle | Floor between middle shelves | |
| Average horizontal illuminance: | 233 lx | 136 lx | 198 lx | 94 lx | 167 lx |
| Average perpendicular illuminance: | 233 lx | 91 lx | 198 lx | 70 lx | 167 lx |
| Perpendicular Min/average: | 0.82 | 0.57 | 0.64 | 0.79 | 0.78 |
