APPLICATION EXAMPLE

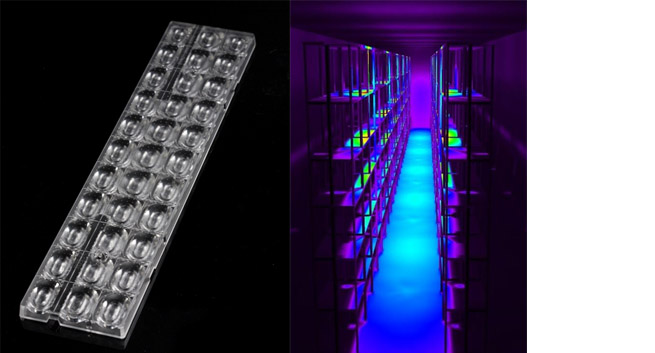

Warehouse aisle lighting with FLORENCE-O
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Warehouse aisle lighting |
| Optics: | FLORENCE-O |
| Luminous flux (LED module): | 3300 lm |
| No. of luminaires: | 6 pcs |
| Installation height: | 8 m |
| Distance between luminaires: | 8.3 m |
| Shelf height: | 7 m |
| Distance between shelves: | 2 m |
RESULTS:
| Average: | 43 lx |
| Min: | 39 lx |
| Max: | 46 lx |
| Uo: | 0.92 |
| F15069_FLORENCE-O |
