APPLICATION EXAMPLE

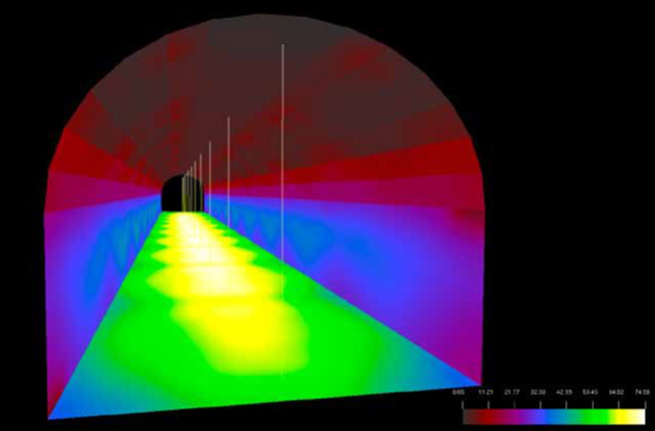

Tunnel lighting with STRADA-SQ-FS2
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Tunnel lighting |
| Optics: | STRADA-SQ-FS2 |
| Beam type: | Symmetrical |
| Tunnel height: | 6 m |
| Installation height: | 5.55 m |
| Distance between luminaires: | 7 m |
| Luminous flux (Luminaire): | 4418 lm |
| Power (LEDs/luminaire): | 33 W |
RESULTS:
| Average: | 4.5 cd/m2 |
| Max: | 6.9 cd/m2 |
| Uo: | 0.63 |
| Ul: | 0.93 |
| Percentage wall luminance / road luminance: | 88 % |
| C14119_STRADA-SQ-FS2 | ||
| CA14120_STRADA-SQ-FS2 |
