LUMINAIRE EXAMPLE
Troffer luminaires with DAISY-7X1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

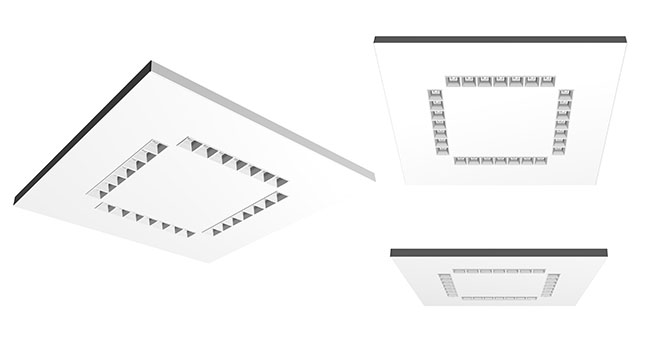

DAISY-7X1 troffer luminaire #1
SETUP:
| Optics: | DAISY-7X1 |
| DAISY-7X1 troffer luminaire #1 | |
| Size: | 600 x 600 mm |
| Number of optics: | 2 pcs |
| LEDs: | 2835 Mid-power / 28 pcs |
| LEDs/each optical element: | 2 pcs |
| Output: | 3150 lm |
| Power: | 25 W |
| Efficiency: | 125 lm/W |

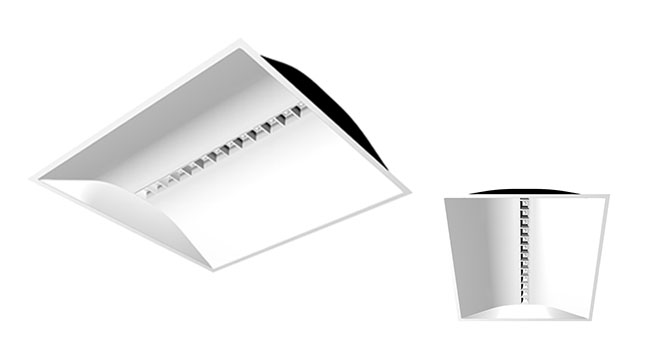

| DAISY-7X1 troffer luminaire #2 | |
| Size: | 600 x 600 mm |
| Number of optics: | 4 pcs |
| LEDs: | 2835 Mid-power / 42 pcs |
| LEDs/each optical element: | 4 pcs |
| Output: | 5700 lm |
| Power: | 36 W |
| Efficiency: | 155 lm/W |
| DAISY-7X1 |
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
