APPLICATION EXAMPLE
Track light luminaires with YASMEEN
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

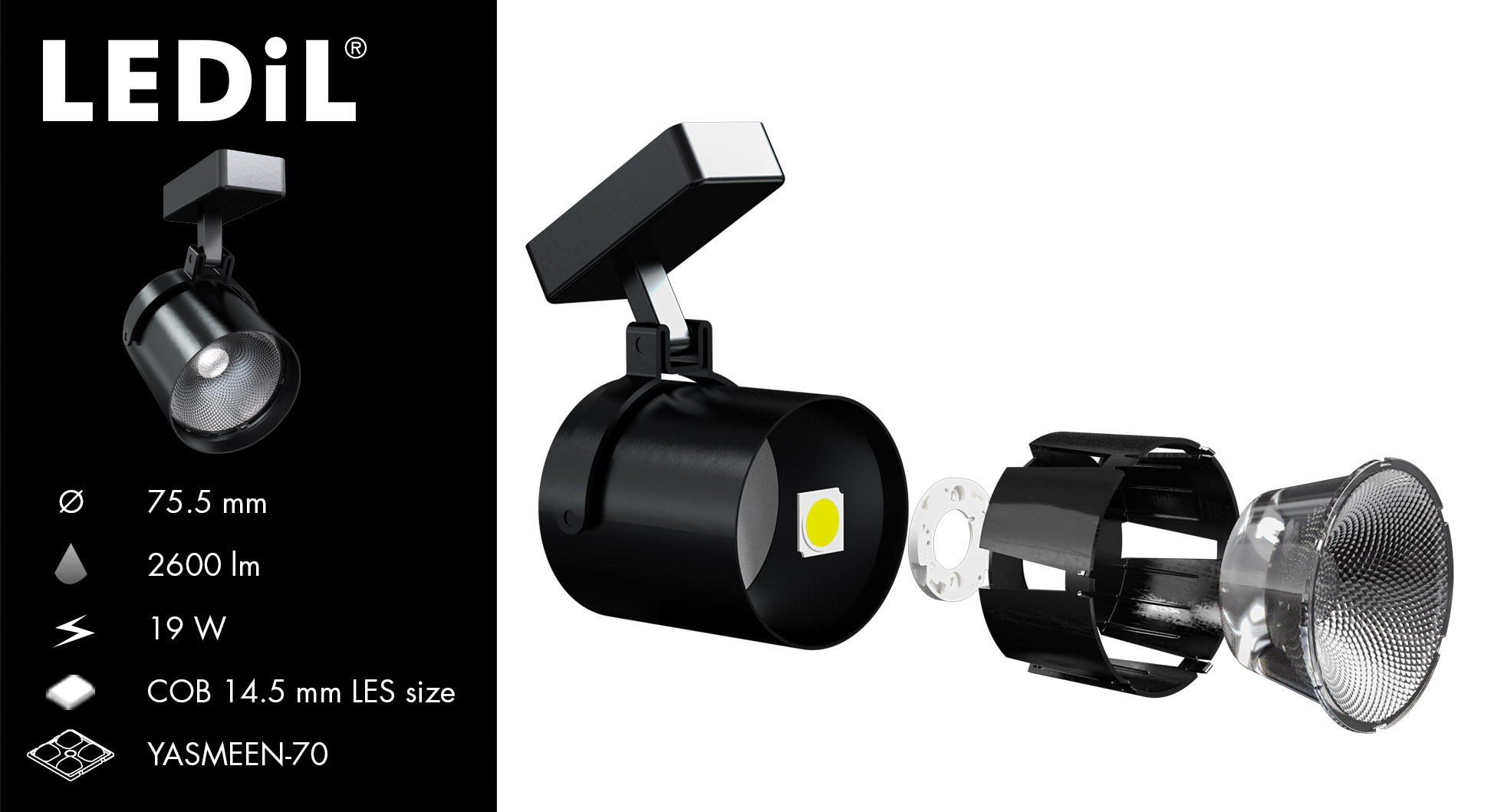

Track light luminaire with YASMEEN-70
Track light luminaire with YASMEEN-70
| Optics: | YASMEEN-70 |
| Optics size: | 70 mm |
| Luminaire size: | 75.5 mm |
| LED: | COB 14.5 mm LES size |
| Connector: | BJB SLIM 47.360 COB CONNECTORS 35mm |
| Luminous flux (Luminaire): | 2600 lm |
| Power (Luminaire): | 19 W |

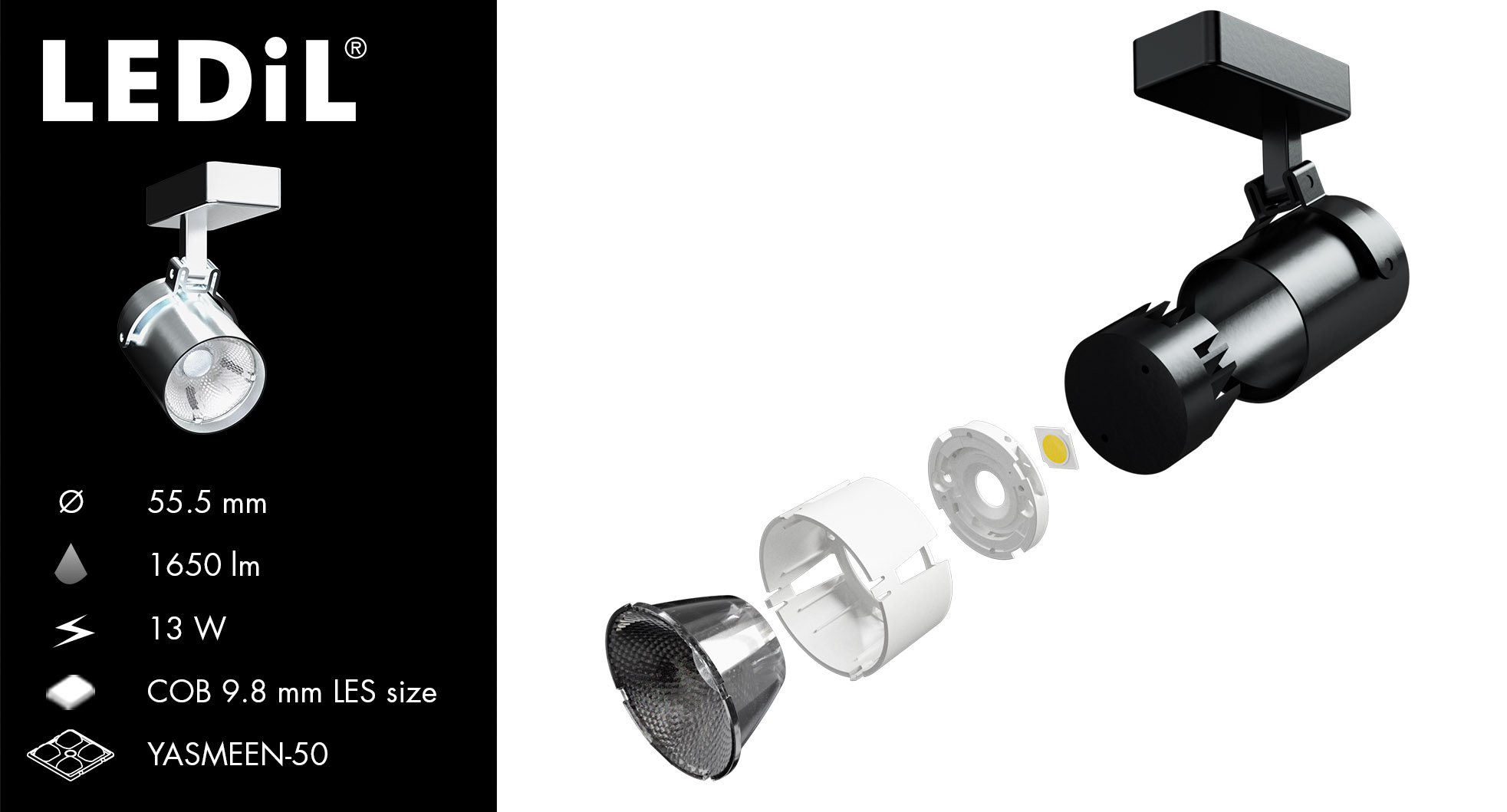

Track light luminaire with YASMEEN-50
| Optics: | YASMEEN-50 |
| Optics size: | 50 mm |
| Luminaire size: | 55.5 mm |
| LED: | COB 9.8 mm LES size |
| Connector: | LEDiL Hekla-G2-C |
| Luminous flux (Luminaire): | 1650 lm |
| Power (Luminaire): | 13 W |
Track light luminaires with YASMEEN
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
