LUMINAIRE EXAMPLE

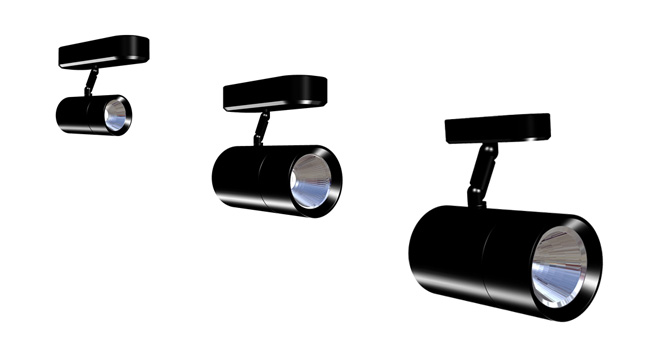

Track light luminaires with ALISE/ELISE
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
ALISE
- Premium light quality in most popular sizes and beams
- Clean and consistent design
- High thermal resistance
ELISE
- Clean and consistent design throughout the whole family
- Precise optical control with HMDS coated
- Easy attached to luminaires with TE connectors specially made for LEDiL
Find all ALISE reflectors.
Find all ELISE reflectors.
Find all our optics for track lighting
SETUP:
Beams: | S, M, W, WW |
LED (ALISE/ELISE-50 / ALISE/ELISE-70 / ALISE/ELISE-110): | COB package 13.5 x 13.5 mm / 19 x 19 mm / 28 x 28 mm |
COB LES size (ALISE/ELISE-50 / ALISE/ELISE-70 / ALISEELISE-110): | 9 mm / 14.5 mm / 22 mm |
Output (ALISE/ELISE-50 / ALISE/ELISE-70 / ALISE/ELISE-110): | 2000 lm / 4800 lm / 6000 lm |
Luminaire power (ALISEELISE-50 / ALISE/ELISE-70 / ALISE/ELISE-110): | 15 W / 33 W / 40 W |
ALISE-50 | ||
ALISE-70 | ||
ALISE-110 | ||
ELISE-50 | ||
ELISE-70 | ||
ELISE-110 |
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
