LUMINAIRE EXAMPLE

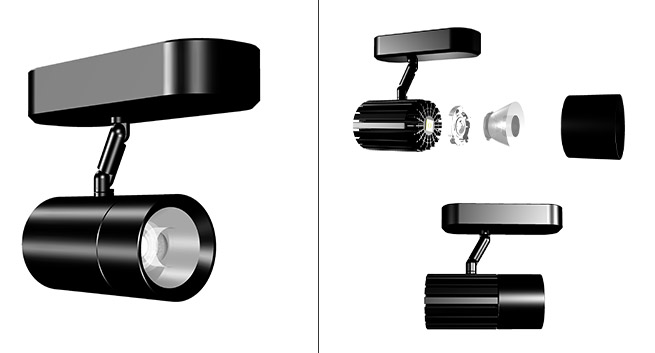

Track light luminaire with ILONA


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

In this setup, the LED can be driven about 520mA (> 2000 lm) at room temperature before the lens will reach max recommended service temperature for PMMA (80°C).
If / mA Vf / V Luminous flux / lm T lens bottom / °C
200 35.3 912 43

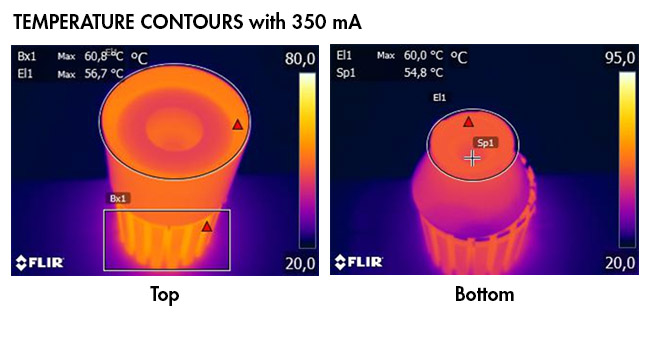

350 37.2 1520 60

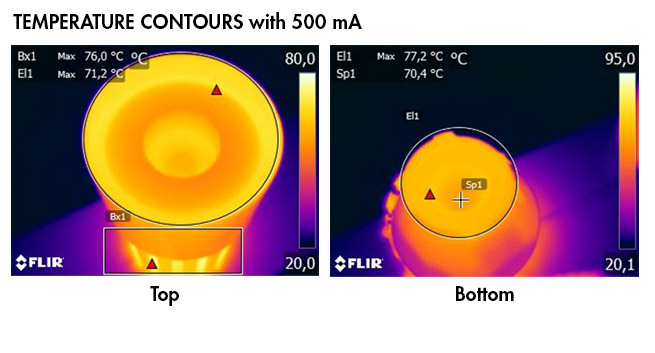

500 39.0 2037 77

ILONA

  • Ø50 mm TIR lens with excellent efficiency and colour-smoothing
  • Simple and quick mounting into our HEKLA sockets and connectors
Find all ILONA optics.
Find all our optics for track lighting

SETUP:

Beams: RS, SS, M, W
Connector: HEKLA-SOCKET-G
LED type: COB
LED size: 12.5 x 12.5 mm package and 4 mm LES
LED nominal CCT: 3000K
LED minimum CRI: 80
LED typical luminous flux: 1520 lm
LED typical luminous efficacy: 117 lm/W
Ambient temperature: 20-22°C

GO TO PRODUCT CARDS
ILONA

The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
