LUMINAIRE EXAMPLE

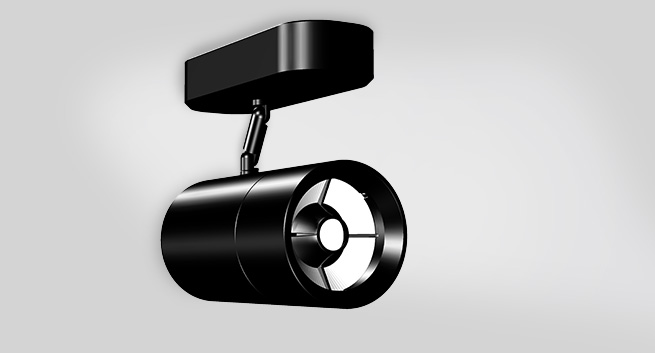

Track light luminaire with CARMEN-70 and CARMEN-70-SHD shade
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

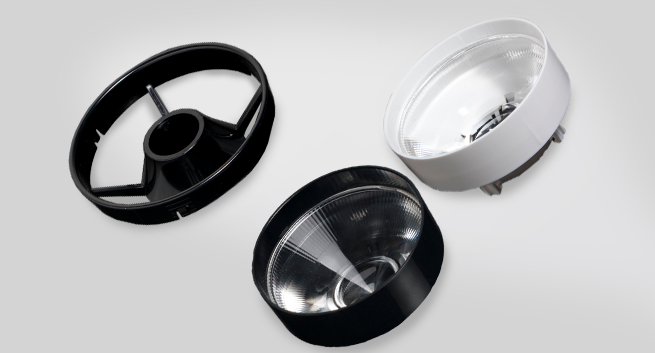

CARMEN-70-SHD is an optional accessory for 70 mm diameter CARMEN-SS and -RS variants that helps achieve an extremely tight cut-off in high contrast applications.
SETUP
LED: | COB package 13.5 x 13.5 mm |
COB LES size: | 9.8 mm |
Beams: | RS, SS |
Accessory: | CARMEN-70-SHD |
Luminaire output: | 950 lm (after optic) |
Luminaire power: | 9 W |
Luminaire efficiency: | 90 lm/W |
CP15916_CARMEN-RS-C | ||
CP16940_CARMEN-RS-C-WHT | ||
CP16601_CARMEN-SS-C | ||
CP16941_CARMEN-SS-C-WHT | ||
C16752_CARMEN-70-SHD |
