Application example
Track light example with ADELIA
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
ADELIA spot beam in 50, 70, 75 and 110 mm size

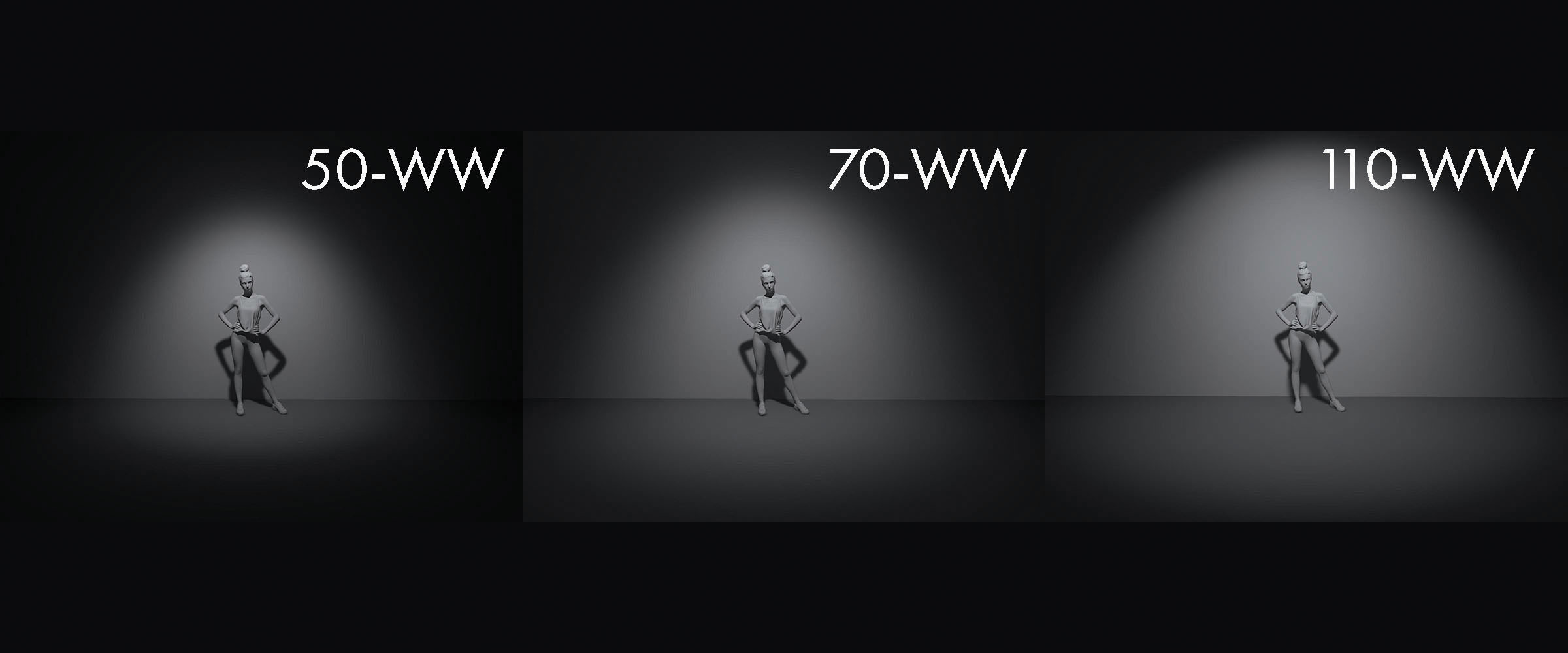

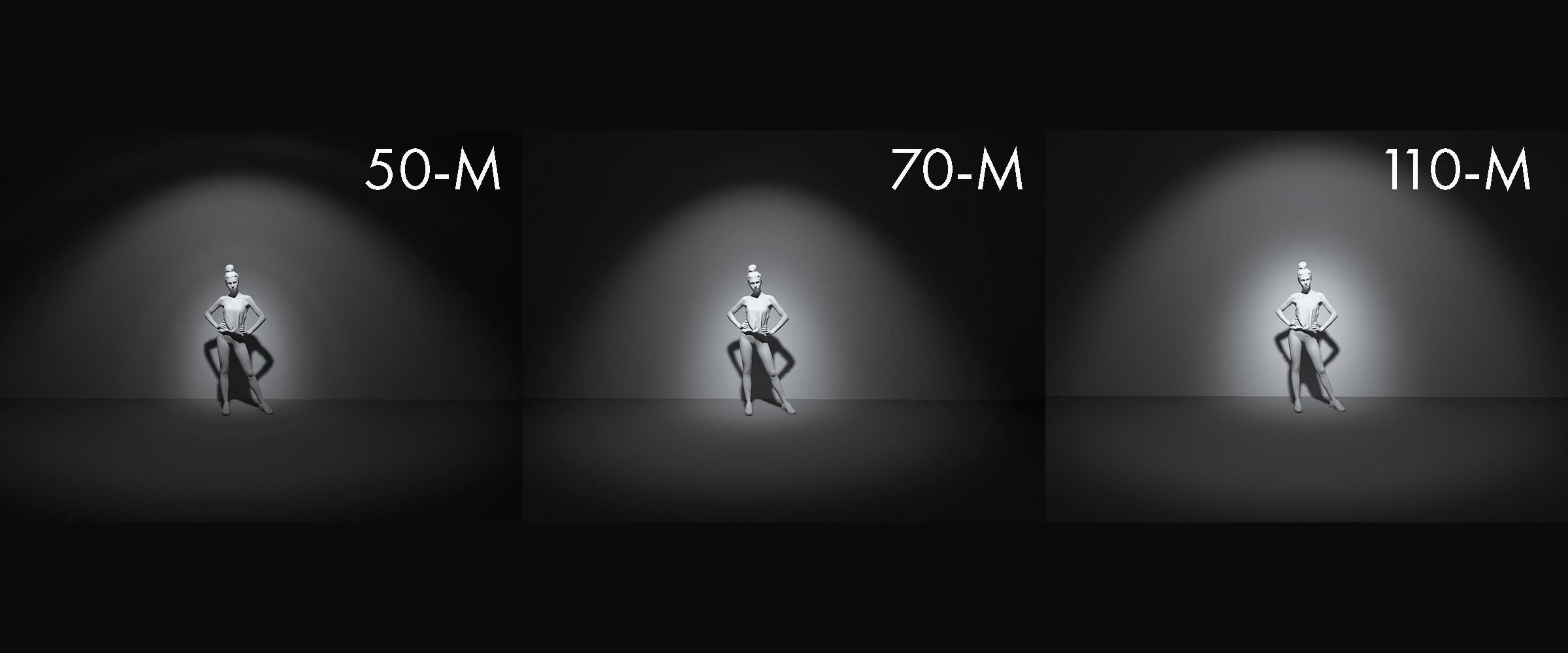

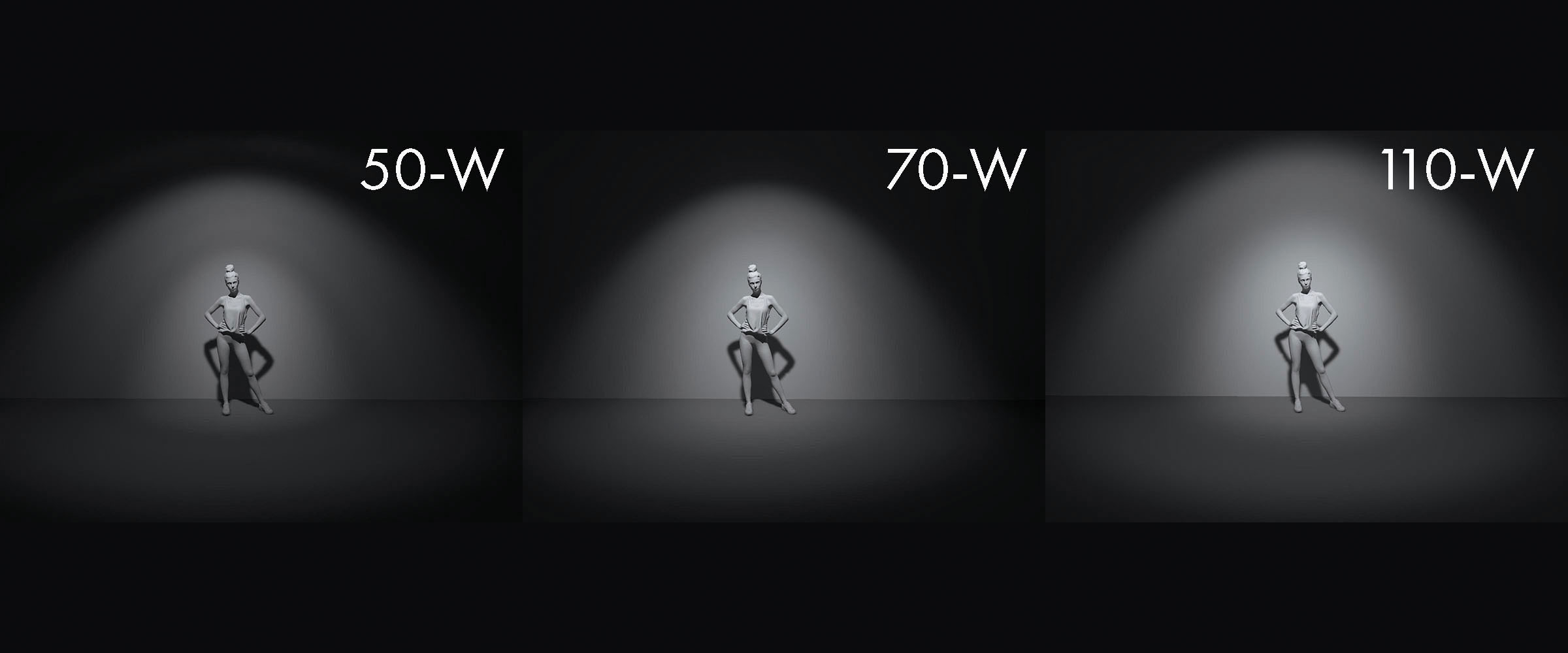

Track light example with ADELIA reflectors visualizing the different light effects.
Setup
| Application: | Retail lighting |
| LED (ADELIA-50): | COB LED / 10 mm LES size |
| LED (ADELIA-70): | COB LED / 13 mm LES size |
| LED (ADELIA-75): | COB LED / 13 mm LES size |
| LED (ADELIA-110): | COB LED / 18 mm LES size |
| Optics: | ADELIA-50 |
| Optics: | ADELIA-70 |
| Optics: | ADELIA-75 |
| Optics: | ADELIA-110 |
| Number of luminaires: | 1 |
| Number of optics in the luminaire: | 1 |
Track light example with ADELIA
