APPLICATION EXAMPLE
Supermarket lighting with FLORENCE-1R and 1R-GC
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
Application: | Retail lighting |
LED: | Mid-power 2835 LED |
General/Ambient lighting: | |
Mounting height: | 5 m |
Optics: |
FLORENCE-1R-Z2T25 (Double asymmetric) FLORENCE-1R-GC-Z25 (Asymmetric) |
Luminous flux (Luminaire): |
2500 lm/m (Double asymmetric) 1700 lm/m (Asymmetirc) |
Power (Luminaire): |
17 W/m (Double asymmetric) 12 W/m (Asymmetirc) |
Luminaire efficiency: | 143 lm/W (Incl. optics 90 % and driver 95 %) |
Shelf lighting | |
Mounting height: | 3 m |
Optics: |
FLORENCE-1R-Z2T25 (Double asymmetric) FLORENCE-1R-GC-Z25 (Asymmetric) |
Luminous flux (Luminaire): | 1700 lm/m |
Power (Luminaire): | 12 W/m |
Luminaire efficiency: | 143 lm/W (Incl. optics 90 % and driver 95 %) |

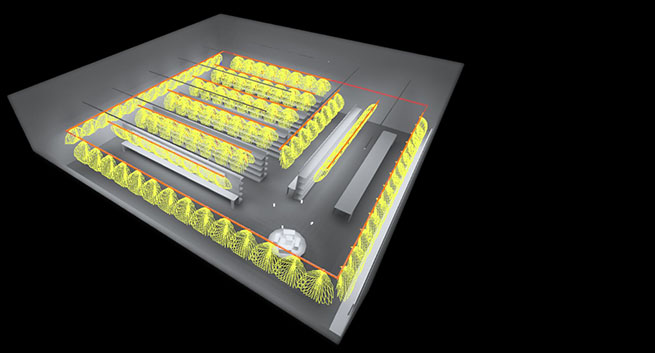

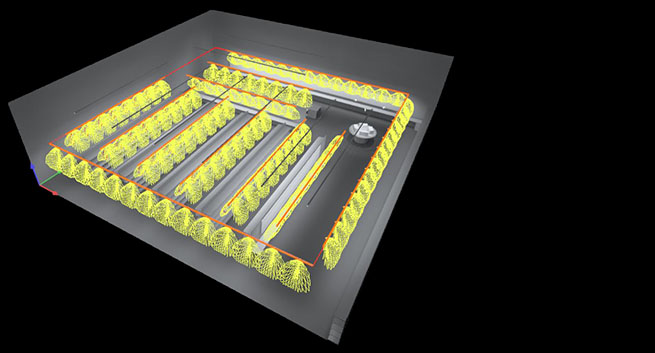

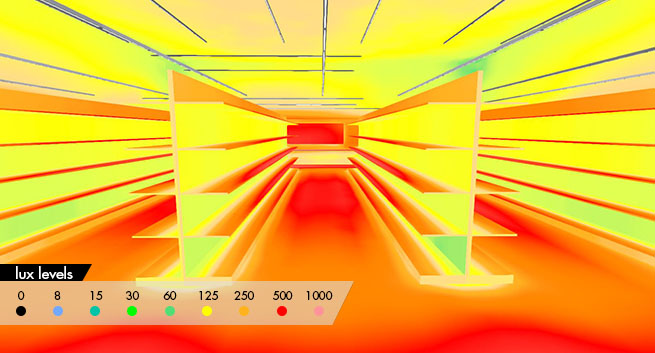

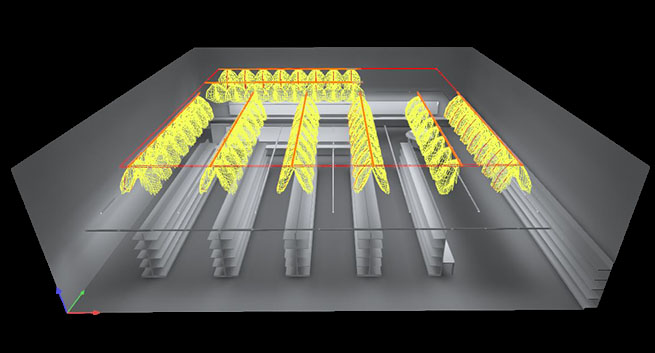

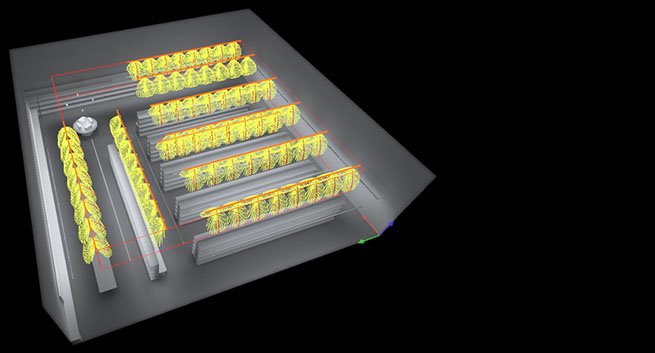

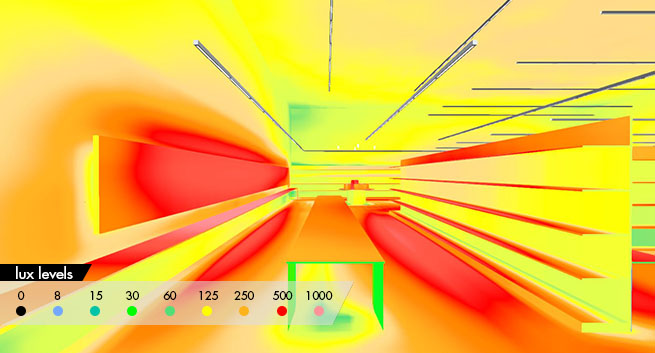

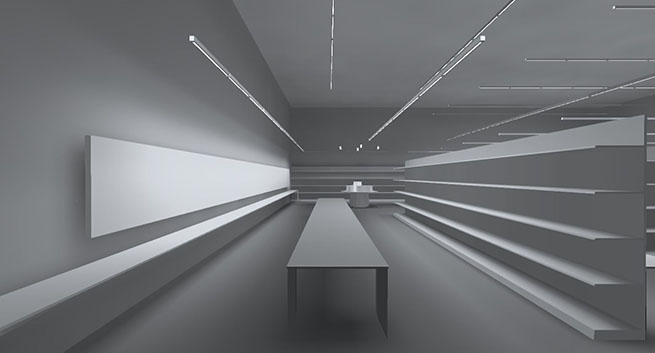

RESULTS:

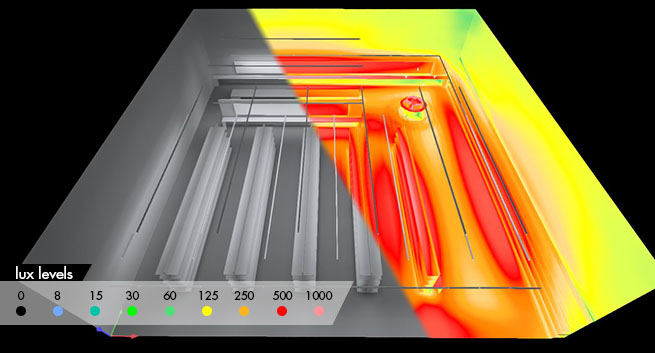

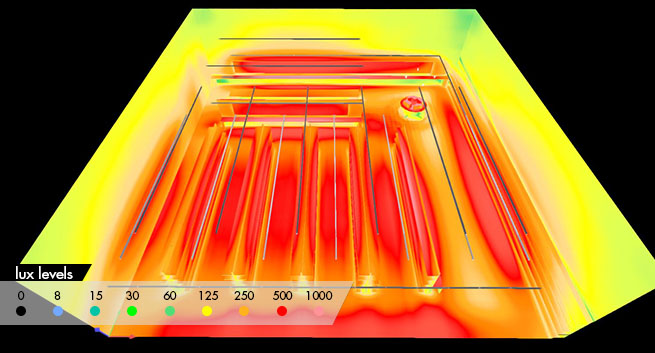

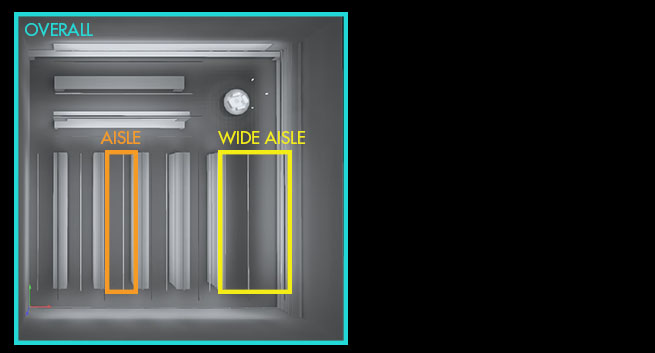

Aisle | |
Average (Floor): | 500 lx |
Average (Shelves): | 380 lx |
Uo (Floor): | 0.82 |
Uo (Shelves): | 0.61 |
UGR (Max): | 22 |
Wide aisle | |
Average (Floor): | 480 lx |
Average (Shelves): | 500 lx |
Uo (Floor): | 0.43 |
Uo (Shelves): | 0.71 |
UGR (Max): | 23 |
Overall | |
Average (Floor): | 410 lx |
Uo (Floor): | 0.41 |
UGR (Max): | 24 |
C14530_FLORENCE-1R-Z2T25 | ||
F15685_FLORENCE-1R-GC-ZT25 |
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
