APPLICATION EXAMPLE

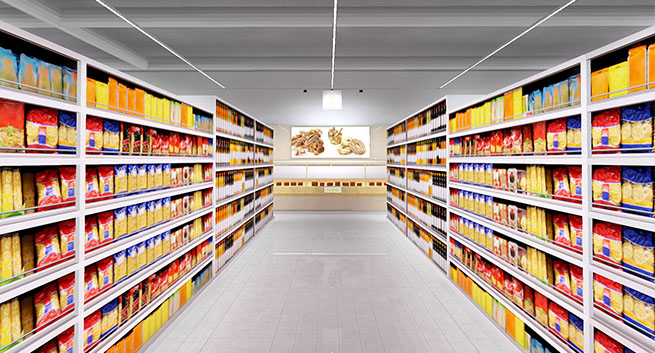

Supermarket aisle lighting with LINDA-Z2T25
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Installation height: | 3 m |
| Arrangement: | Continuous row |

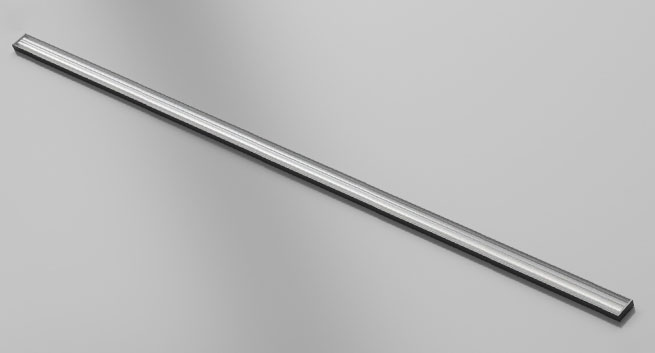

| Optics: | LINDA-Z2T25 |
| LEDs: | 2835 Mid-power |
| Number of LEDs: | 42 pcs/m |
| Output: | 2730 lm/m |
| Luminaire power: | 20 W/m |
| Luminaire efficiency: | 147 lm/W |
RESULTS:
| Average/shelves: | 510 lx |
| Uniformity/shelves: | 0.90 |
| Average/floor: | 440 lx |
| Uniformity/floor: | 0.80 |
| F16858_LINDA-Z2T25 |
