APPLICATION EXAMPLE

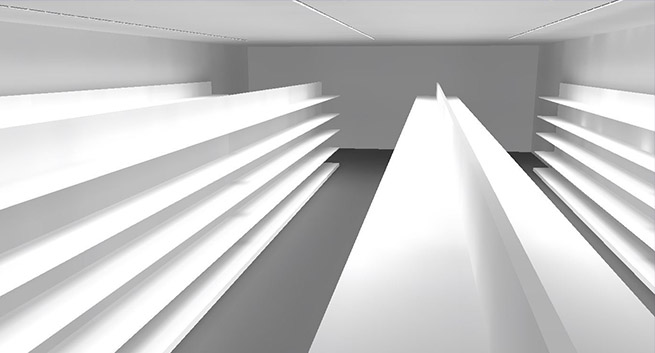

Supermarket aisle and shelf lighting with LINNEA-Z2T25
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Retail lighting |
| Optics: | LINNEA-Z2T25 |
| Luminaire arrangement: | Continuous row |
| Number of optics in a row: | 40 pcs |
| Total number of optics: | 120 pcs |
| Luminaire spacing: | 300 mm |
| Mounting height: | 3.2 m |
| Shelf height: | 2.2 m |
| Aisle width: | 2 m |
| Luminous flux (Luminaire): | 4000 lm/m |
| Power (Luminaire): | 8 W/m |
RESULTS:
| UGR in the middle at 1.2 m height | 24 |
| F15860_LINNEA-Z2T25 | ||
| F15999_LINNEA-Z2T25-B |
