APPLICATION EXAMPLE
Spotlight lighting with AMY
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
18-degree S beam
Spot lighting of a statue with different AMY-50 beam angles visualizing the different light effects.
SETUP
| Application: | Retail lighting |
| LED: | COB LED / 9 mm LES size |

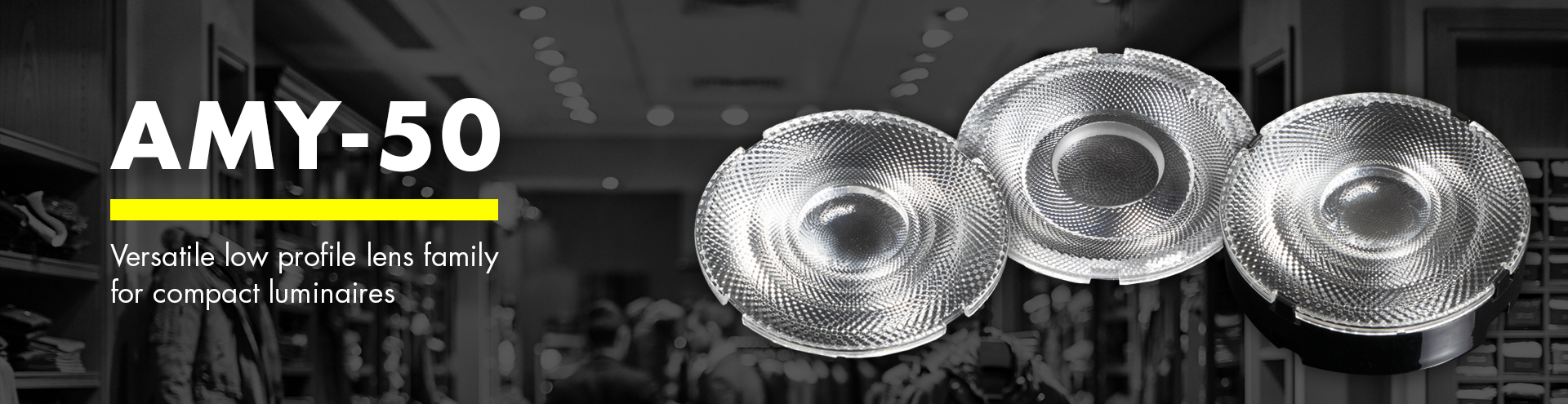

| Optics: | AMY-50 |
| Efficiency (Optics): | 88 - 92 % depending on the beam |
| Installation Height: | 2.5 m |
| Distance to model head: | 1.25 m |
| Distance to model feet : | 2.65 m |
| Number of luminaires: | 1 pcs |
| Number of optics in the luminaire: | 1 pcs |
| Luminaire output: | 500 lm |
| Luminaire power: | 4.5 W |
| Luminous efficacy: | 110 lm/W |
Spotlight lighting with AMY
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
