Application example

Spotlight example with AMY-35-ZOOM


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

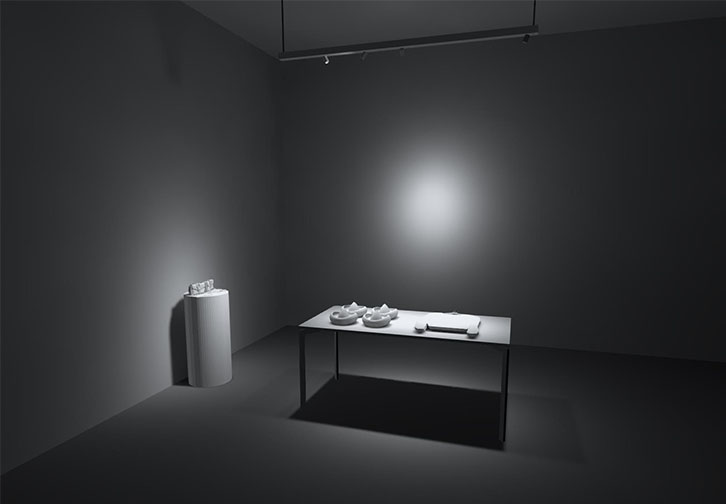

20-degree spot zoom beam

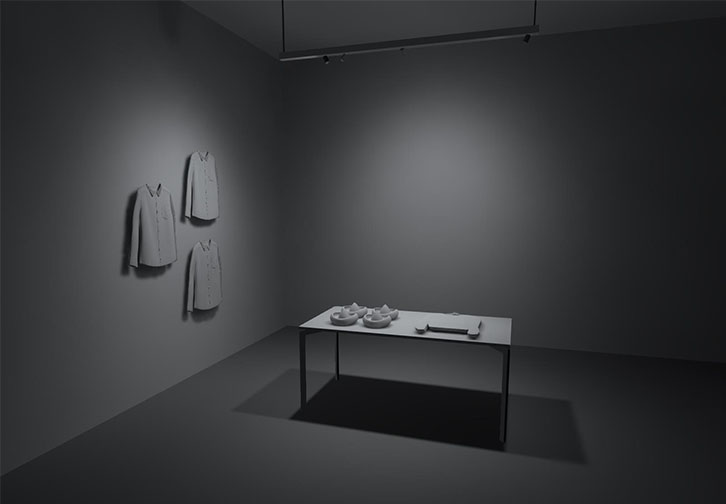

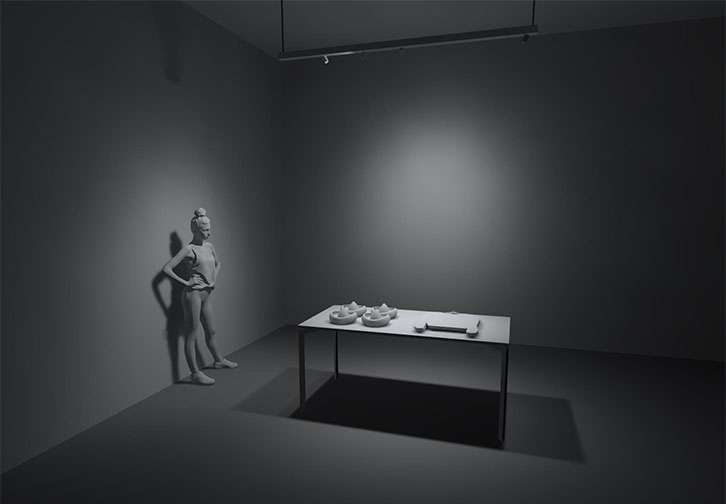

Spotlight example with AMY-35-ZOOM. Visualizing the different light effects that can be achieved with AMY-35-ZOOM when adjusting beam angles to match different retail lighting concepts.

Setup

Application:Retail lighting
LED:COB LED / 6 mm LES size
Optics:AMY-35-ZOOM
Zoom range:20° – 50°
Luminaire output:800 lm per luminaire
Installation Height:3 m
Number of luminaires:4 pcs
Number of optics in the luminaire:1 pcs
Find the products
AMY-35-ZOOM

Spotlight example with AMY-35-ZOOM


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
