APPLICATION EXAMPLE

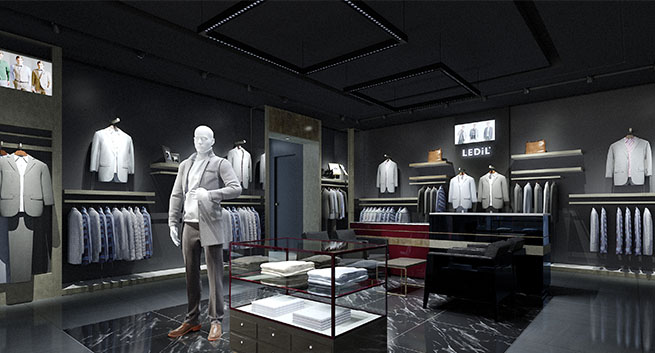

High contrast retail lighting with DAISY and ILONA


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

SETUP:

Application: Fashion retail
General lighting
Optics: DAISY-7X1-W
LEDs: Mid-power 2835
Number of LEDs under each optical element: 2 pcs
Installation height: 3 m
Number of optics in a luminaire: 16 pcs
Luminaire output: 9600 lm
Number of luminaires: 2 pcs
Track lighting
Optics: ILONA-RS
LEDs: COB LED / 6 mm LES size
Installation height: 3 m
Track distance from the wall: 1 m
Luminaire output: 1000 lm

RESULTS:

Average under DAISY luminaires: 660 lx
Average on illuminated objects: 1000 lx
GO TO PRODUCT CARDS
DAISY-7X1-W
C16686_ILONA-RS
