APPLICATION EXAMPLE
Restaurant table lighting with DAISY-MINI-M
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Restaurant table lighting example
SETUP
| Application: | Restaurant table lighting |
| LED: | 2835 Mid-Power |

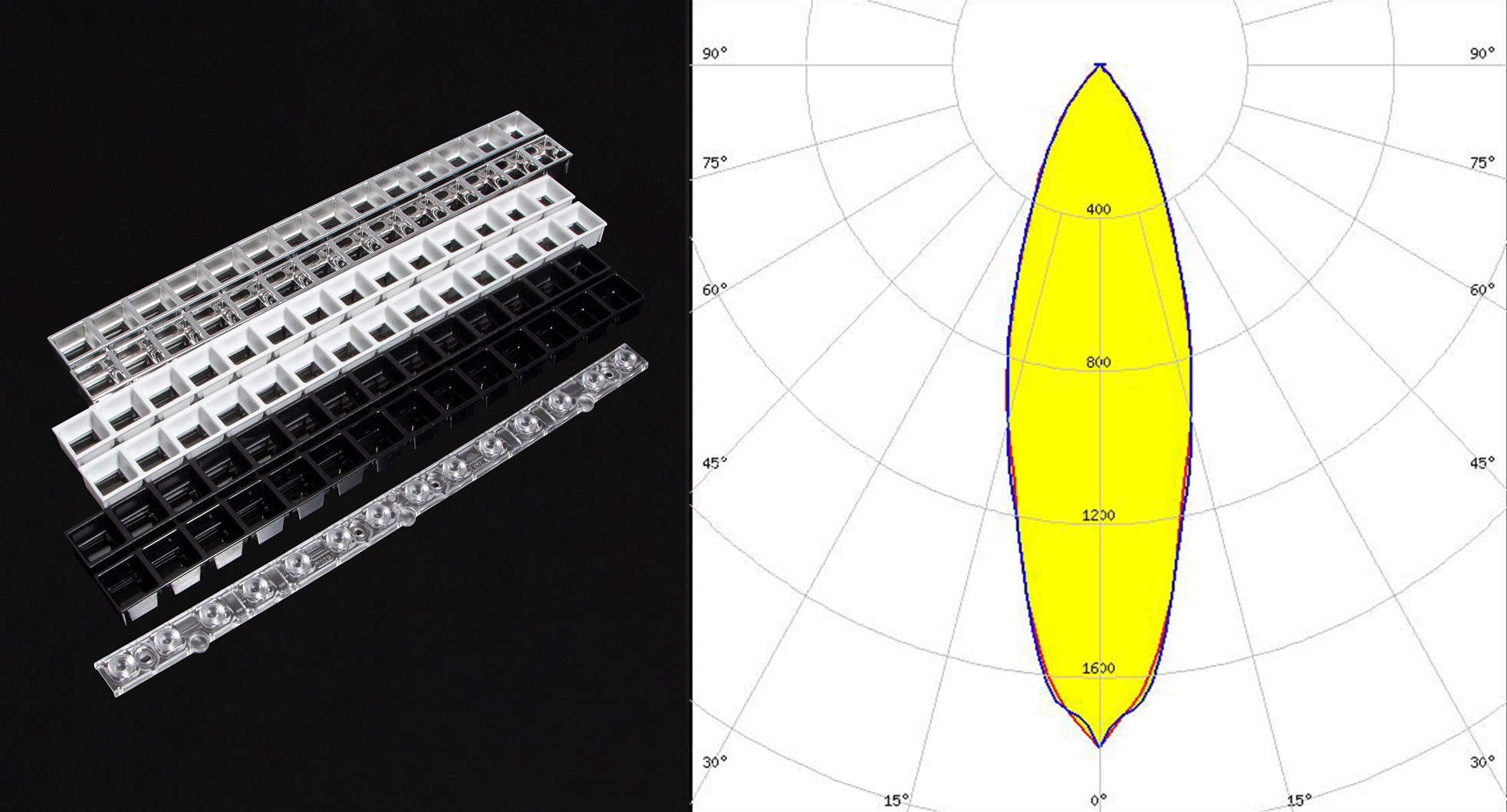

| Optics: | DAISY-MINI-M |
| Efficiency (Optics): | 82.3 % |
| Installation Height: | 2 m |
| Table height: | 0.8 m |
| Number of luminaires: | 1 pcs |
| Number of optics in the luminaire: | 1 pcs |
| Number of LEDs in the luminaire: | 14 pcs |
| Luminaire output (LEDs): | 800 lm |
| Luminaire output: | 660 lm |
| Luminaire power | 5.8 W |
| Luminous efficacy: | 113.6 lm/W |
| DAISY-MINI shade used: | black colour, matt finish |
Restaurant table lighting with DAISY-MINI-M
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
