APPLICATION EXAMPLE

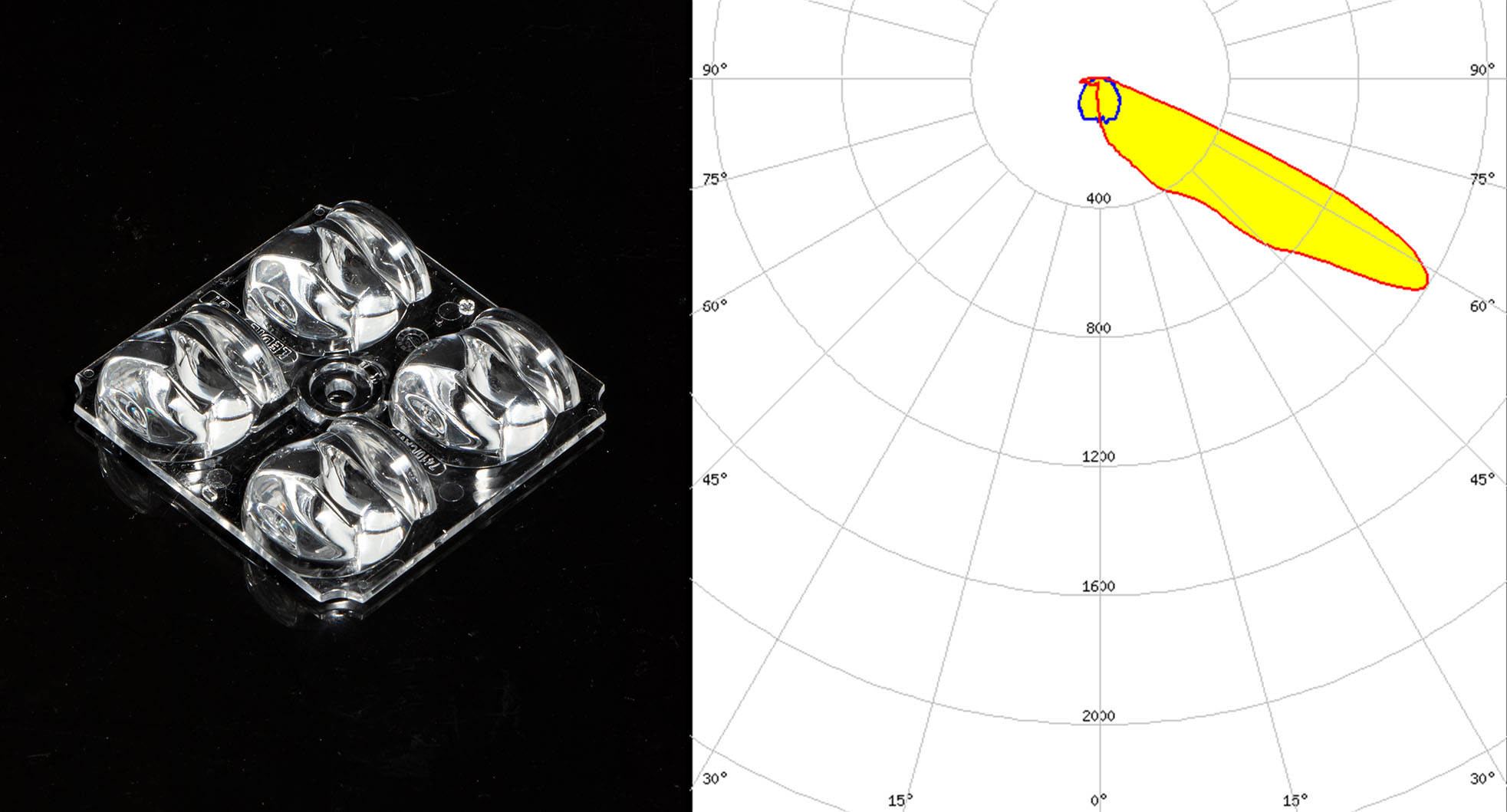

Padel court lighting with SPORT-2X2-FT6.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Sports lighting |
| Optics: | SPORT-2X2-FT6 |
| Number of poles: | 4 pcs |
| Number of luminaires: | 8 pcs |
| Mounting height: | 8 m |
| Field size: | 10 x 20 m |
| Total luminous flux (Luminaires) | 312 klm |

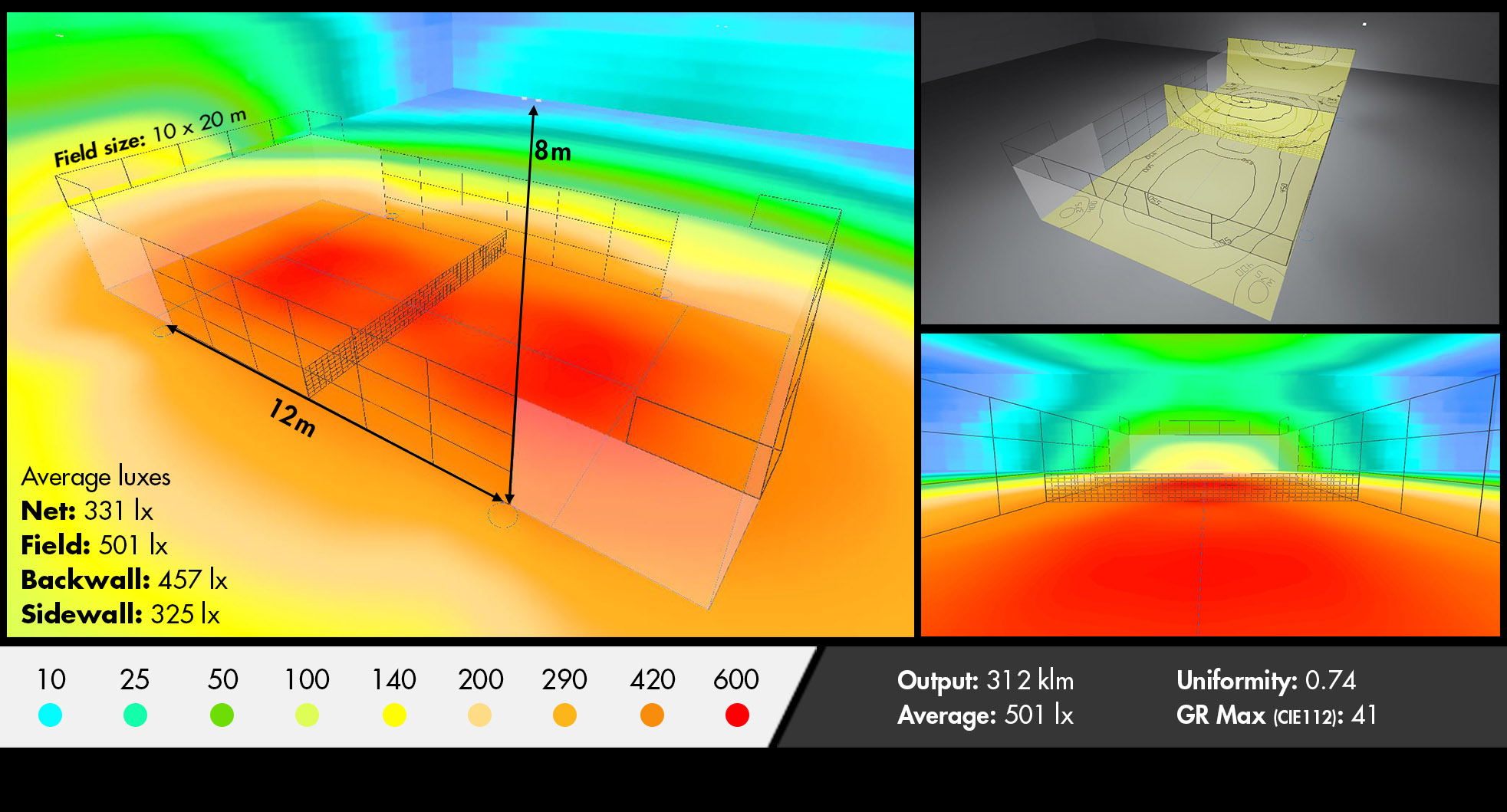

RESULTS:
| Playing field | |
| Average: | 501 lx |
| Min: | 369 lx |
| Max: | 590 lx |
| Min/Average: | 0.74 |
| GR Max (CIE112): | 41 |
| Net | |
| Average: | 331 lx |
| Min: | 204 lx |
| Max: | 559 lx |
| Min/Average: | 0.62 |
| Back wall | |
| Average: | 457 lx |
| Min: | 250 lx |
| Max: | 923 lx |
| Min/Average: | 0.55 |
| Side wall | |
| Average: | 325 lx |
| Min: | 263 lx |
| Max: | 384 lx |
| Min/Average: | 0.81 |
Padel court lighting with SPORT-2X2-FT6.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
