APPLICATION EXAMPLE
Office lighting with FLORENCE-1R-GC and FLORENCE-1R
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

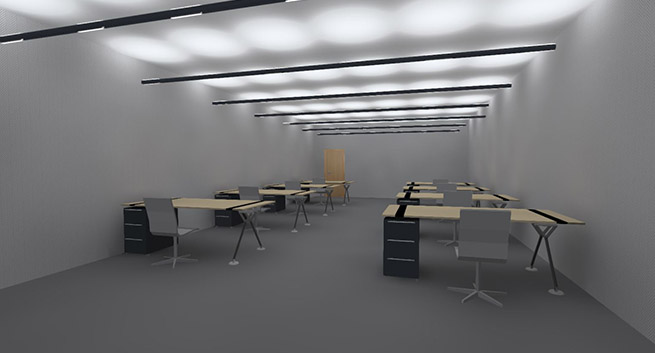

SETUP:
| Application: | Office lighting |
| Room height: | 3 m |
| Gap between luminaire rows: | 1 m |
| Downlight | |
| Optics: | FLORENCE-1R-GC-Z60 |
| Mounting height: | 2.54 m |
| Number of luminare rows: | 7 pcs |
| Number of luminaires in a row: | 6 pcs |
| Total number of luminaires and optics: | 42 pcs |
| Luminous flux (luminaire): | 847 lm |
| Power (Luminaire): | 9 W |
| Luminous efficacy: | 93 lm/W |
| Uplight | |
| Optics: | FLORENCE-1R-Z90 |
| Mounting height: | 2.58 m |
| Number of luminare rows: | 7 pcs |
| Number of luminaires in a row: | 6 pcs |
| Total number of luminaires and optics: | 42 pcs |
| Luminous flux (luminaire): | 2132 lm |
| Power (Luminaire): | 15 W |
| Luminous efficacy: | 139 lm/W |

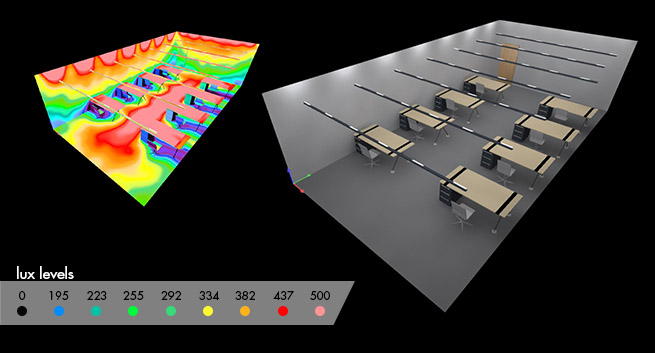

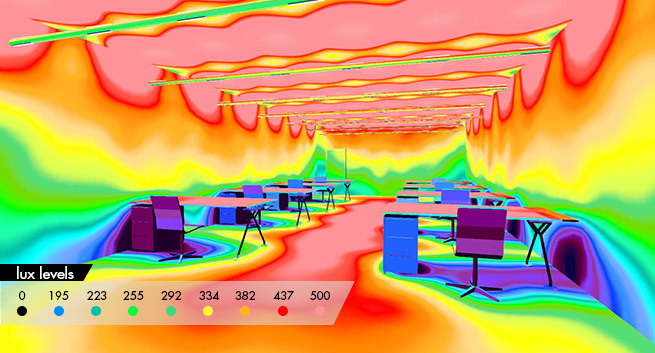

RESULTS:
| UGR at 0.8 m height : | <10 |

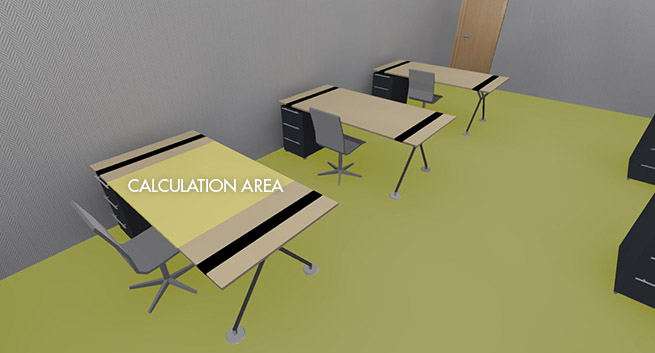

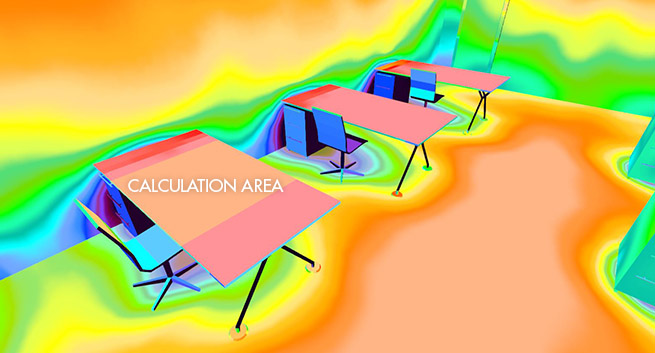

| On calculation surface at 0.8 m | |
| Average: | 546 lx |
| Average target: | ≥500 lx |
| Min: | 233 lx |
| Max: | 649 lx |
| Uo: | 0.43 |
| F15684_FLORENCE-1R-GC-Z60 | ||
| F14304_FLORENCE-1R-Z90 |
