APPLICATION EXAMPLE
ME4a with STRADA-FT and STRADA-FW
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

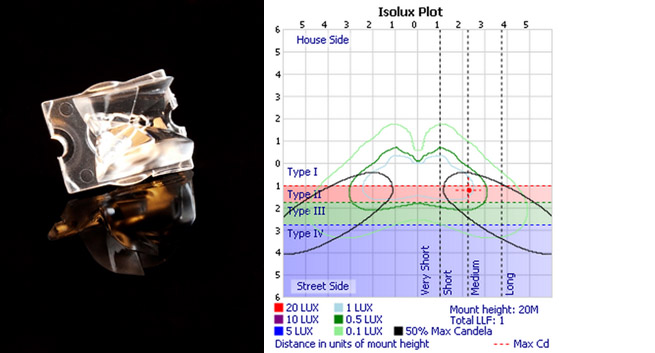

STRADA-FT has strong forward-throw light distribution that can be used in multiple applications.
STRADA-FW has Type IV medium light distribution that is suitable for many wider street setups.

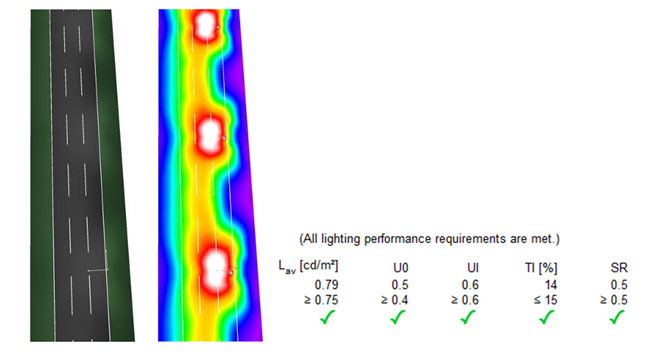

SETUP:
| Lighting class: | ME4a (EU) |
| Optics: | STRADA-FT and STRADA-FW |
| LED: | CREE XP-G |
| Road width: | 12 m |
| Number of lanes: | 3 |
| Arrangement: | Single row, bottom |
| Maintenance factor: | 1.0 |
| Luminous flux (Luminaire): | 4000 lm |
| Pole distance: | 32 m |
| Mounting height: | 8 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom length: | 0 m |
| C12049_STRADA-FT | ||
| C13476_STRADA-FT | ||
| CA12050_STRADA-FT | ||
| CA13477_STRADA-FT | ||
| C12086_STRADA-FW | ||
| C12226_STRADA-FW | ||
| CA12087_STRADA-FW |
