APPLICATION EXAMPLE
ME1 with STRADA-IP-2X6-ME
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Lighting class: | ME1 |
| Optics: | STRADA-IP-2X6-ME |
| Road width: | 10.5 m |
| Number of lanes: | 3 |
| Arrangement: | Single row, bottom |
| Luminous flux (Luminaire): | 28 779 lm |
| Power (Luminaire): | 210 W |
| Pole distance: | 37 m |
| Mounting height: | 12 m |

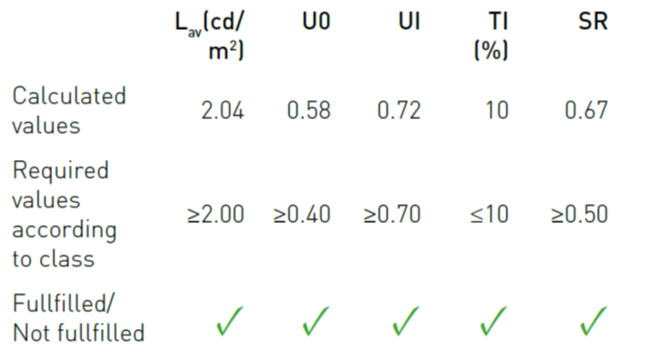

RESULTS:
| Maximum luminous intensities | |
| at 70°: | 807 cd/klm |
| at 80°: | 108 cd/klm |
| at 90°: | 28 cd/klm |
| CS14144_STRADA-IP-2X6-ME |
