APPLICATION EXAMPLE
M3 Street lighting with STRADELLA-8-HV-CSP-LM1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

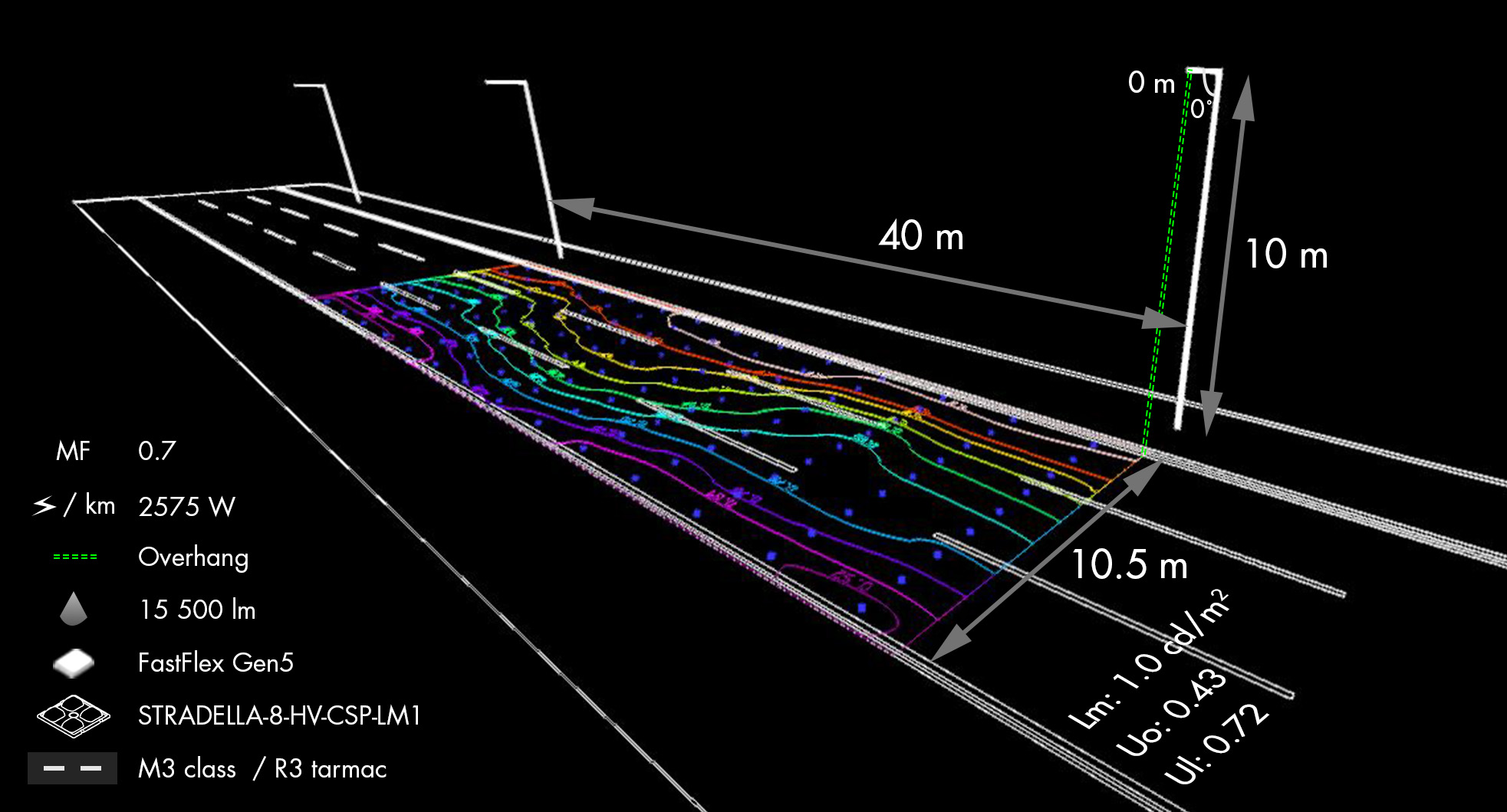

SETUP:
| Application: | Street lighting |
| Roadway class: | M3 |
| Tarmac: | R3 |

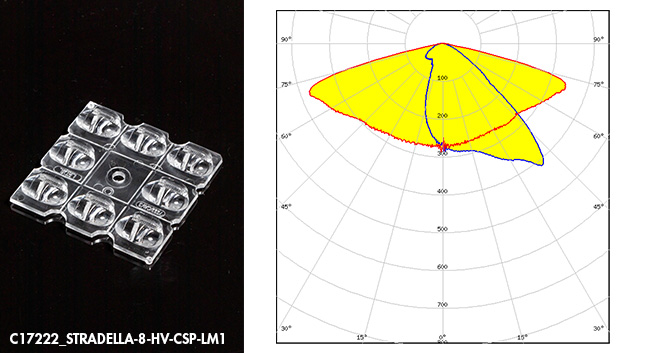

| Optics: | STRADELLA-8-HV-CSP-LM1 |
| LED: | FastFlex Gen5 |
| Road width: | 10.5 m |
| Number of lanes: | 3 |
| Arrangement: | single side, bottom |
| Pole distance: | 40 m |
| Mounting height: | 10 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom lenght: | 2 m |
| Maintenance factor: | 0.7 |
| Total lumen output/luminaire: | 15 500 lm |
| Power consumption/km: | 2575 W |
| Energy consumption/year: | 412 kWh |

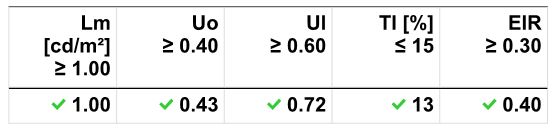

RESULTS (M3 class):
M3 Street lighting with STRADELLA-8-HV-CSP-LM1
