Application example

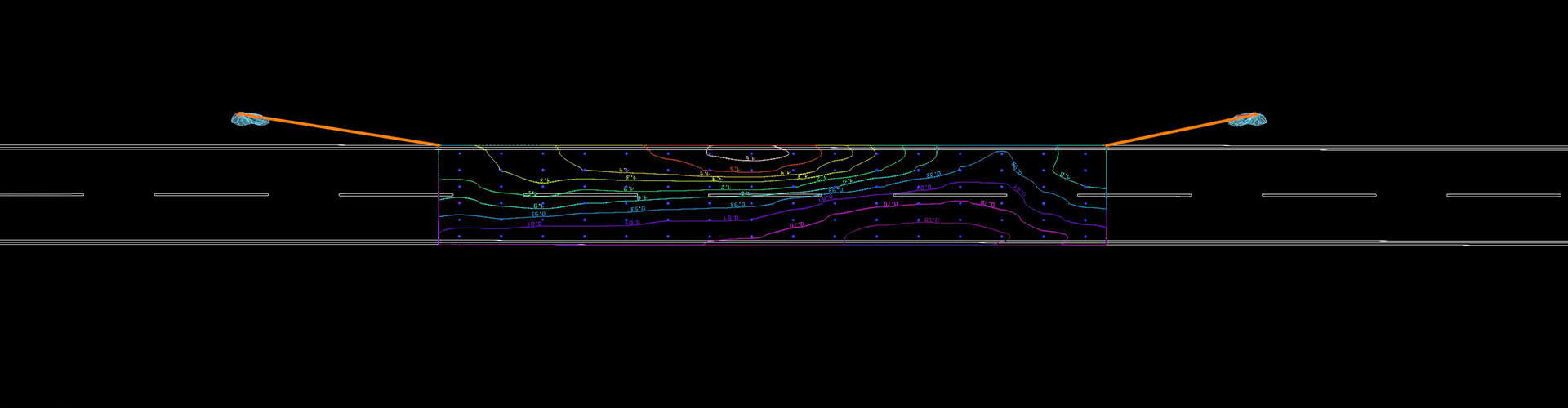

M3 street lighting with STRADA-IP-24-ME
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

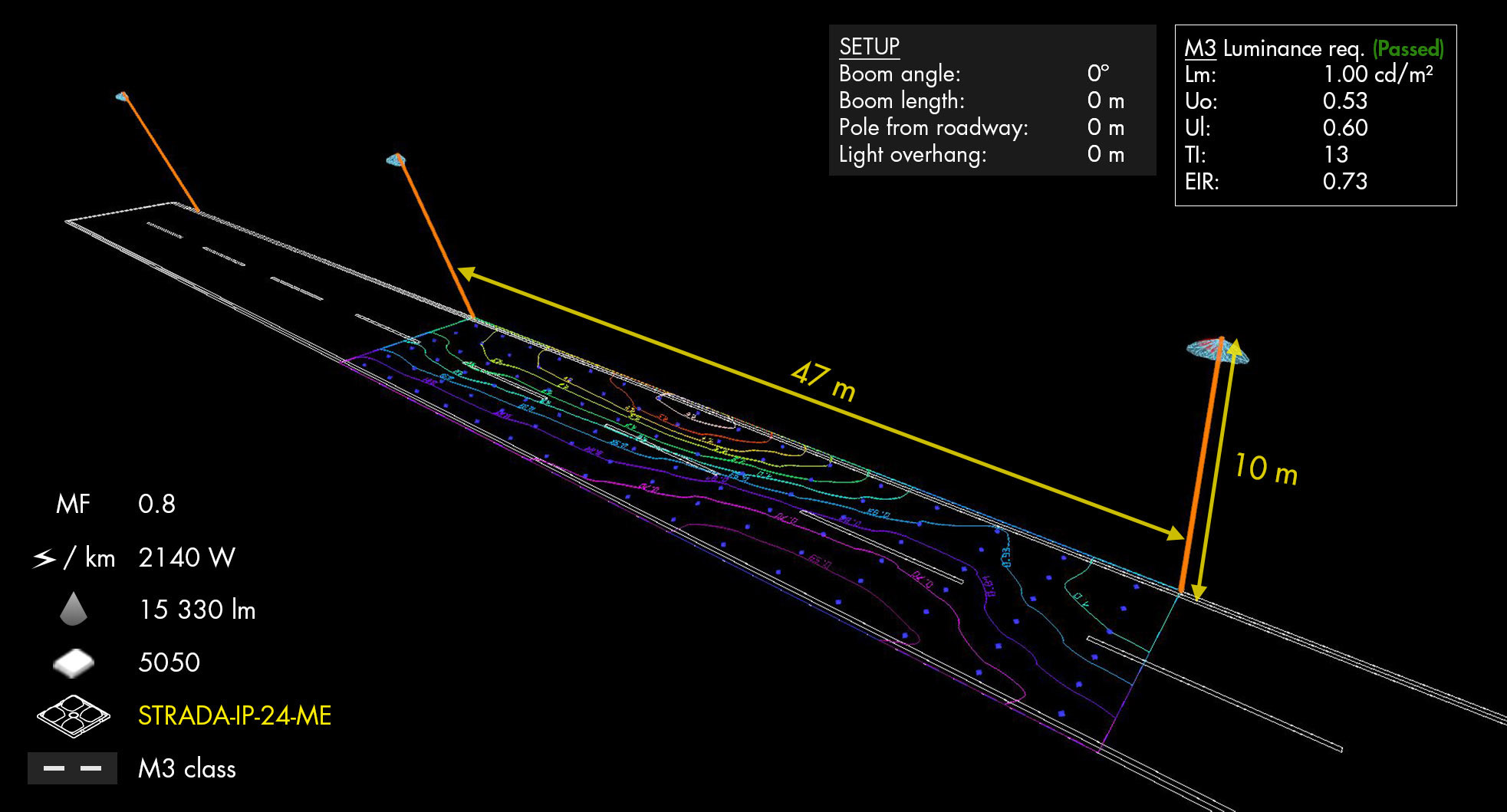

Setup:
| Application: | Street lighting |
| Roadway class: | M3 |
| Tarmac: | R3 |

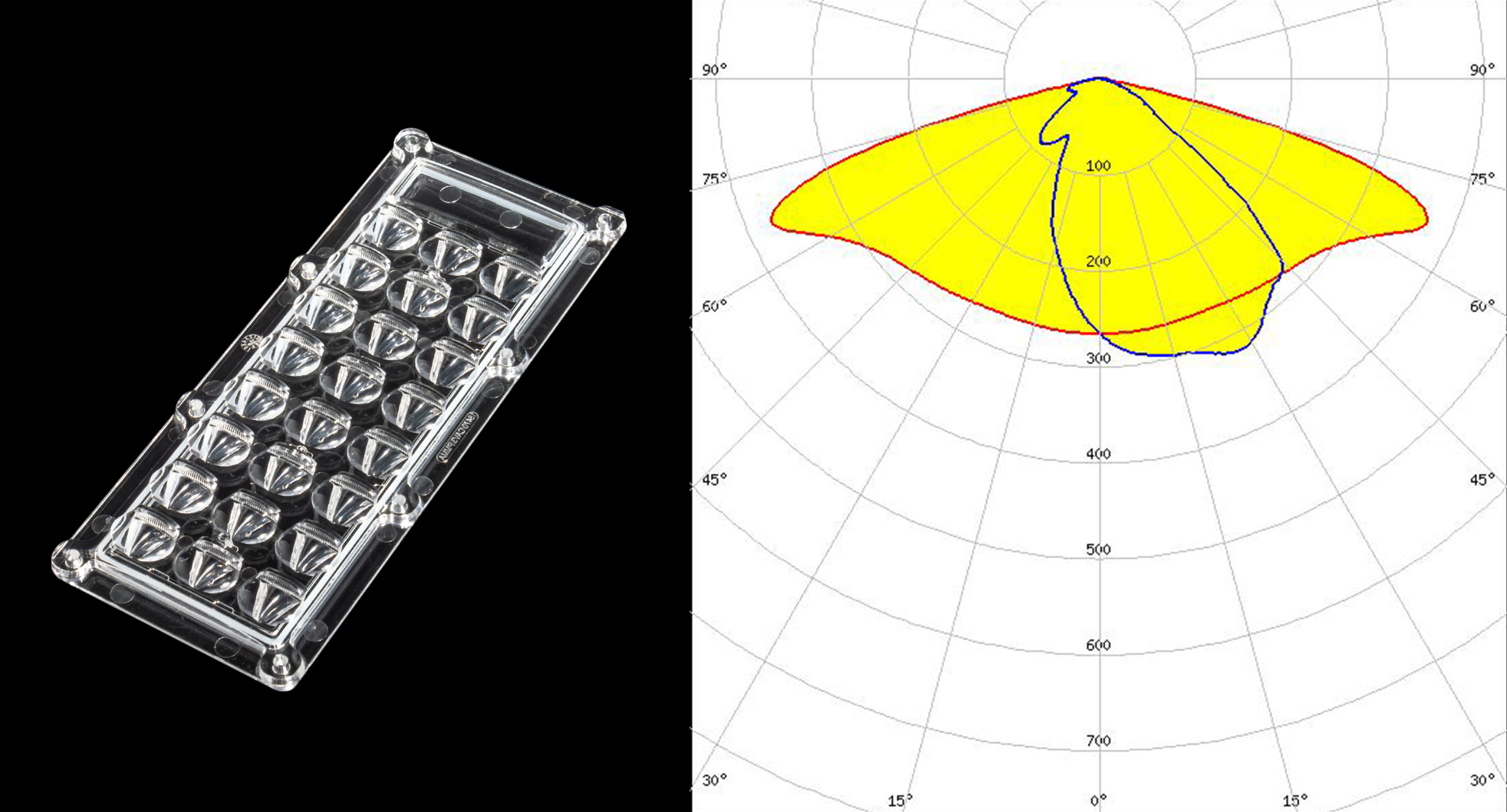

| Optics: | STRADA-IP-24-ME |
| LED: | 5050 |
| Road width: | 7 m |
| Number of lanes: | 2 |
| Pole distance: | 47 m |
| Mounting heigth: | 10 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom length: | 0 m |
| Pole distance from roadway: | 0 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 15 330 lm |
| Power consumption/km: | 2140 W |
| Energy consumption/year: | 408 kWh |
Results:
| Lm: | 1.00 cd/m2 |
| Uo: | 0.53 |
| Ul: | 0.60 |
| TI: | 13 |
| EIR: | 0.73 |
| M3 illuminance requirements: | passed |
M3 street lighting with STRADA-IP-24-ME
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
