Application example
M3 street lighting with STRADA-2X3-5050-ME (N2 wet)
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
2-lanes

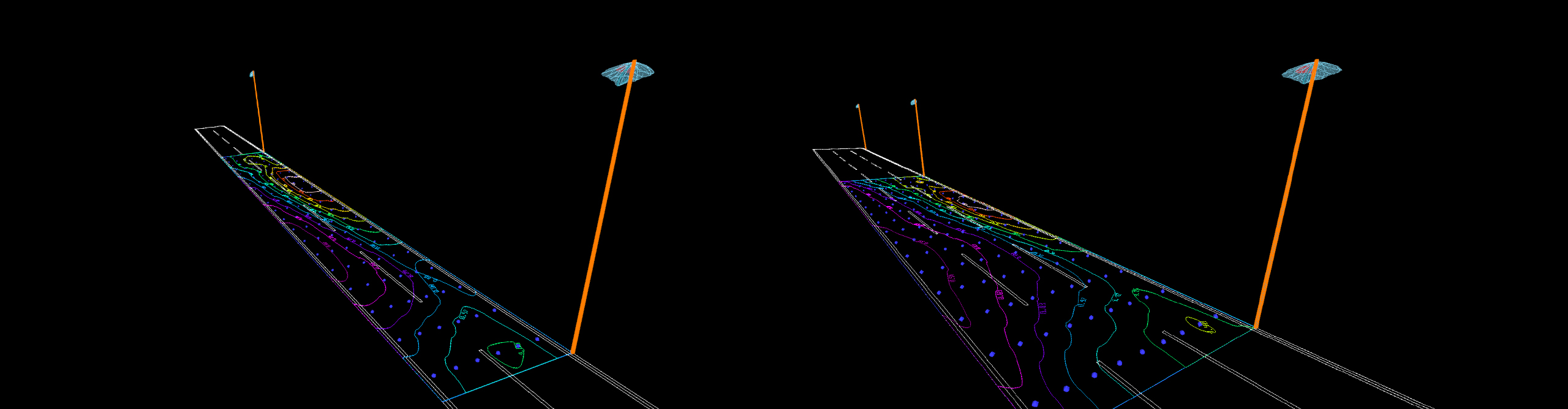

2- and 3-lane setups with STRADA-2X3-5050-ME.
See a compilation of different passing mounting height and pole distance calculations here: ME street lighting calculations>
Setup:
| Application: | Street lighting |
| Roadway class: | M3 |
| Tarmac: | R3 |
| Optics: | STRADA-2X3-5050-ME |
| LED: | 5050 |
| Road width: | 7 m (2-lanes) / 10.5 m (3-lanes) |
| Arrangement: | Single side |
| Pole distance: | 59 m / 48 m |
| Mounting heigth: | 10 m / 12 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom length: | 0 m |
| Pole distance from roadway: | 0 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 20 490 lm / 18 030 lm |
| Power consumption/km: | 2840 W/km / 3090 W/km |
Results:

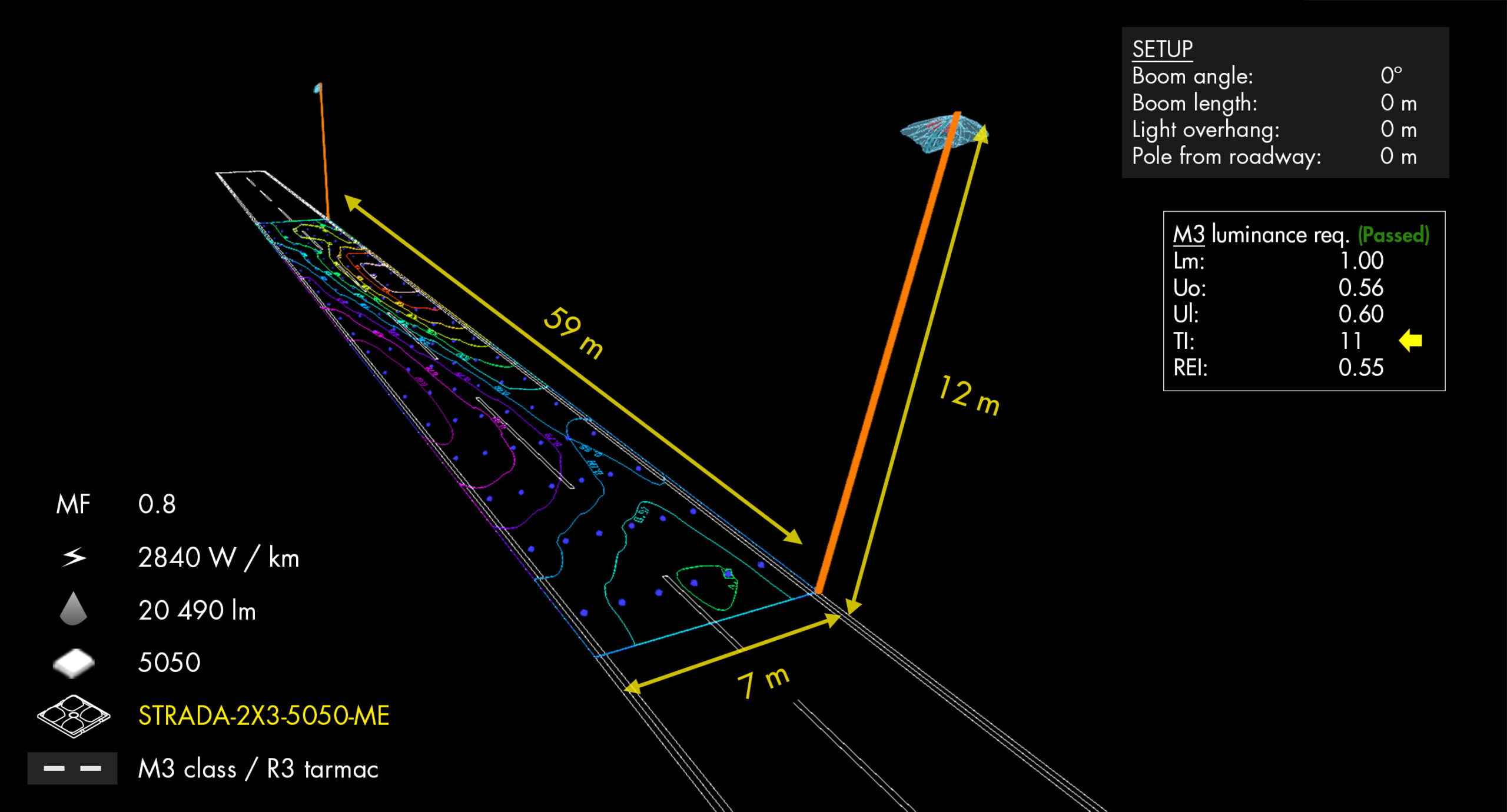

| 2-lanes | |
| Lm: | 1.00 |
| Uo: | 0.56 |
| Ul: | 0.60 |
| TI: | 11 |
| REI: | 0.55 |

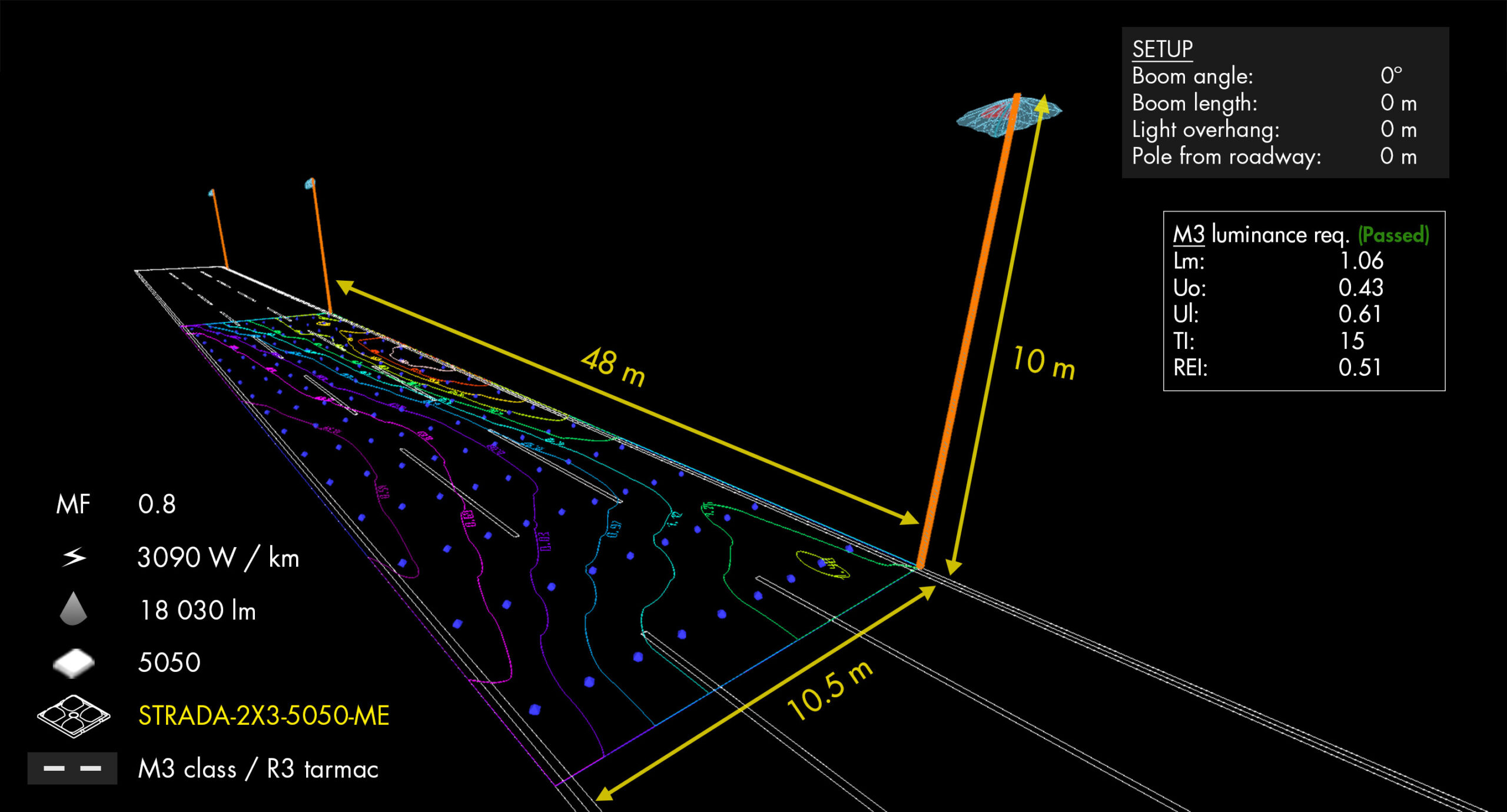

| 3-lanes | |
| Lm: | 1.06 |
| Uo: | 0.43 |
| Ul: | 0.61 |
| TI: | 15 |
| REI: | 0.51 |
