Application example

M3 Street lighting with STRADA-2X2-LW1


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support



Download the simulation using the form at the end of this page.

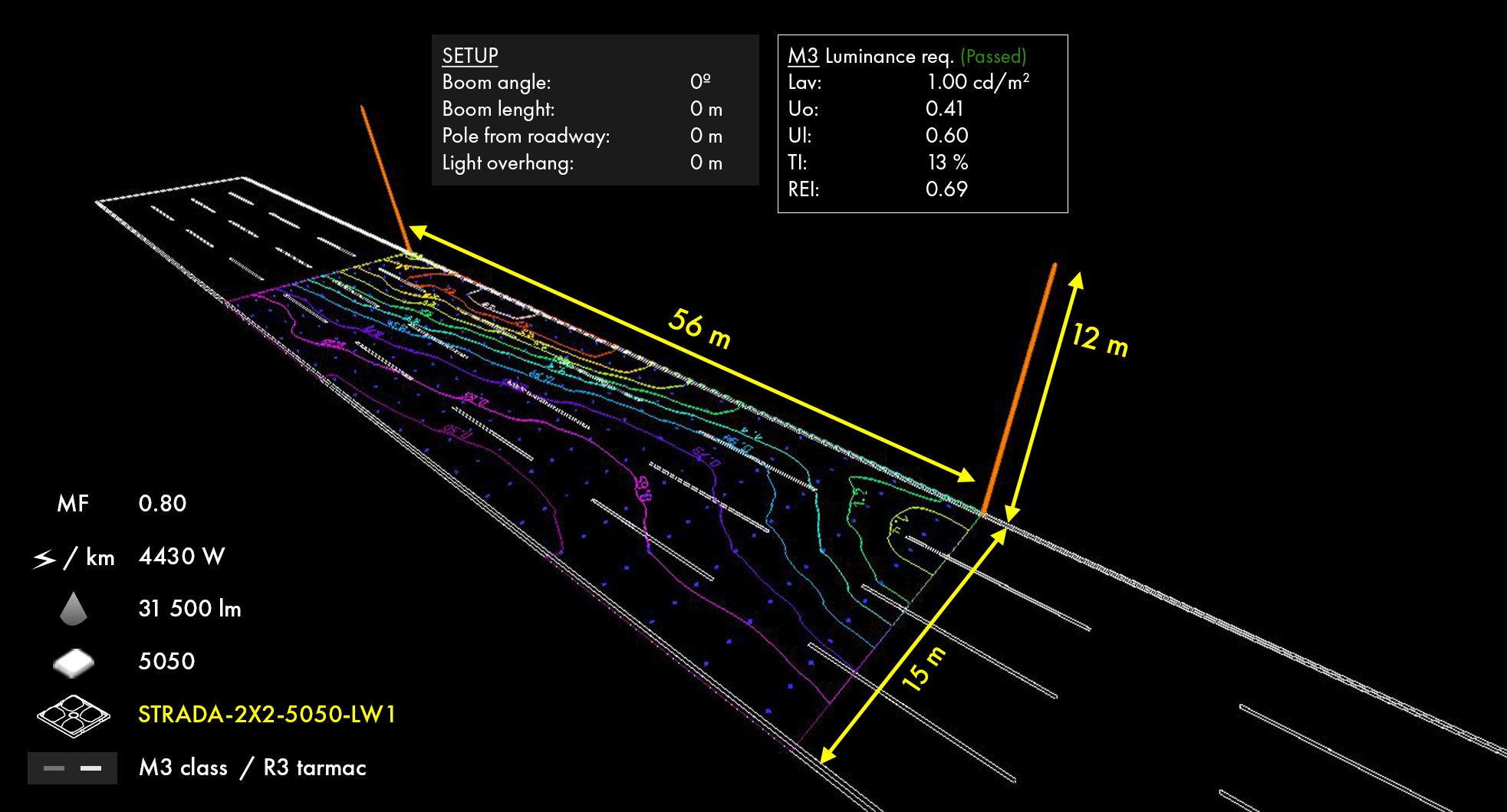

Setup:

Application:Street lighting
Roadway class:M3
Tarmac:R3
Optics:STRADA-2X2-5050-LW1
LED:Flat 5050
Road width:15 m
Number of lanes:4 pcs
Arrangement:single side, bottom
Pole distance:56 m
Mounting height:12 m
Overhang:0 m
Boom angle:
Boom lenght:0 m
Pole distance from roadway:0 m
Maintenance factor:0.8
Total lumen output/luminaire:31 500 lm
Power consumption/km:4430 W
Energy consumption/year:985 kWh

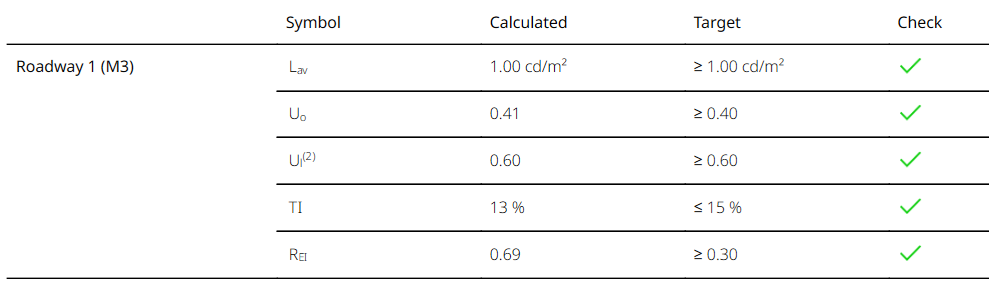

Results:

Ledil strada-2x2-5050-lw1 results

Find the products:
C17829_STRADA-2X2-5050-LW1

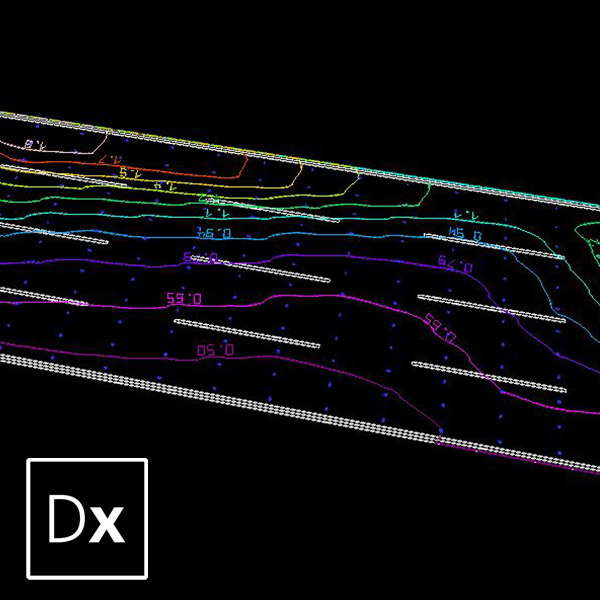

Download the simulation for STRADA-2X2-5050-LW1
