APPLICATION EXAMPLE
M3 and C3 Street lighting with STRADA-IP-24-DWC
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Street lighting |
| Roadway class: | M3 and C3 |

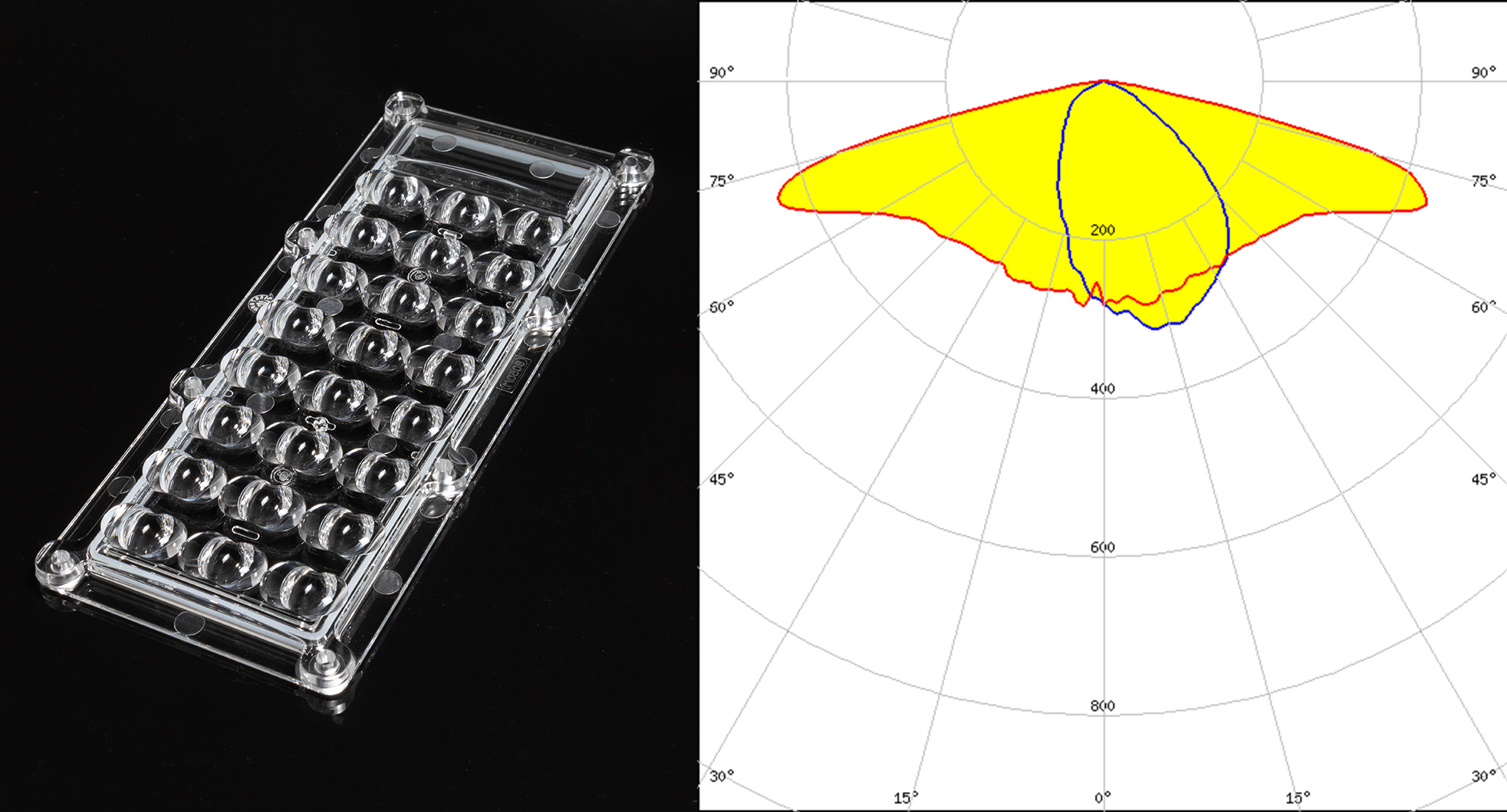

| Optics: | STRADA-IP-24-DWC |
| LED: | Flat 5050 |
| Road width: | 7 m |
| Number of lanes: | 2 pcs |
| Pole distance: | 33 m |
| Mounting height: | 8 m |
| Overhang: | 0 m |
| Boom angle: | 0° |
| Boom lenght: | 0 m |
| Pole distance from roadway: | 0 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 10 000 lm |
| Power consumption/km: | 2160 W |
| Energy consumption/year: | 290 kWh |

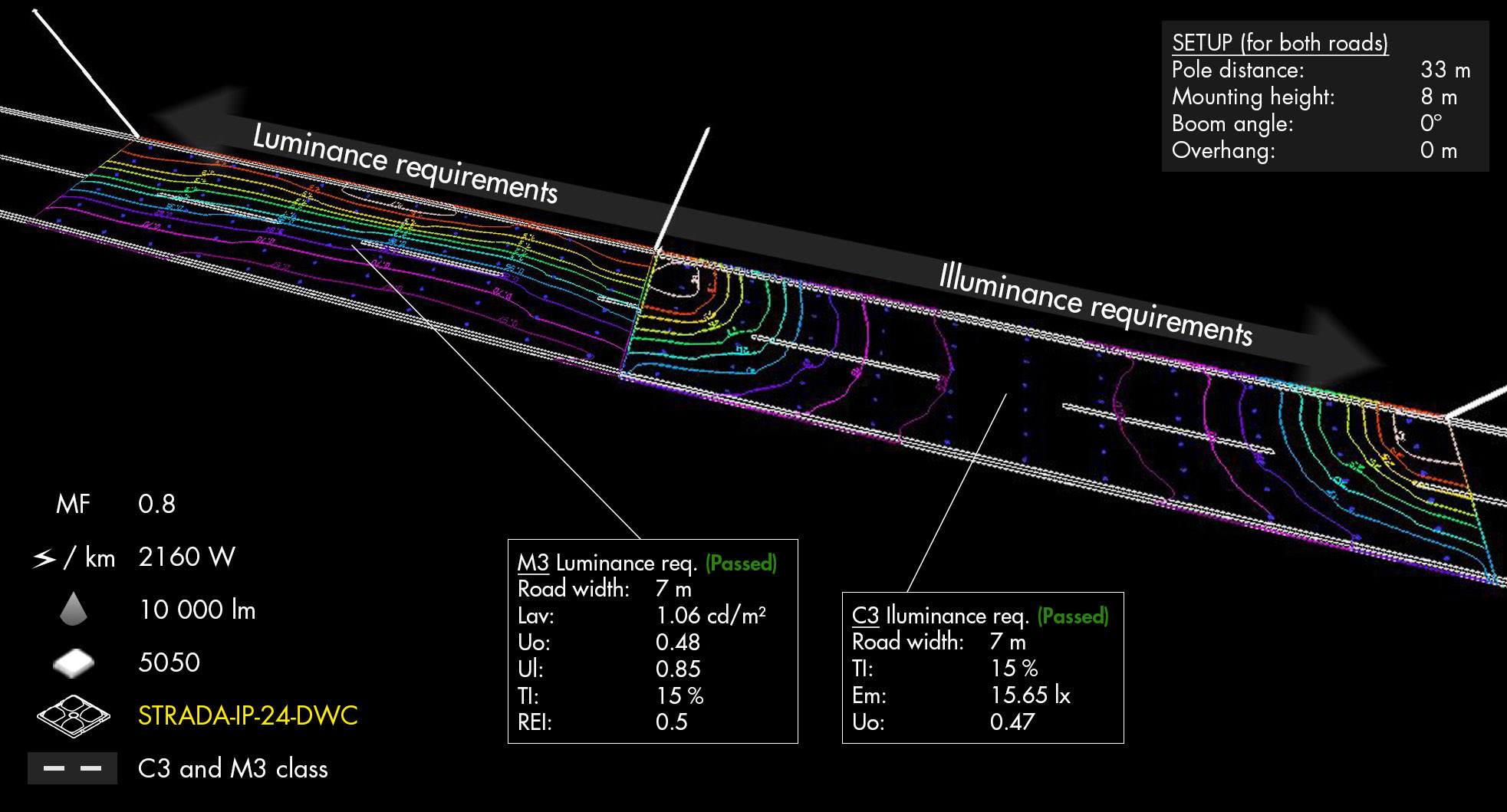

RESULTS:
| M3 Luminance requirements | (Passed) |
| Lav: | 1.06 d/m2 |
| Uo: | 0.48 |
| Ul: | 0.85 |
| TI: | 15 % |
| REI: | 0.5 |
| C3 Illuminance requirements | (Passed) |
| TI: | 15 % |
| Em: | 15.65 lx |
| Uo: | 0.47 |
M3 and C3 Street lighting with STRADA-IP-24-DWC
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
