APPLICATION EXAMPLE
M1 Street lighting with STRADA-2X2-LN1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

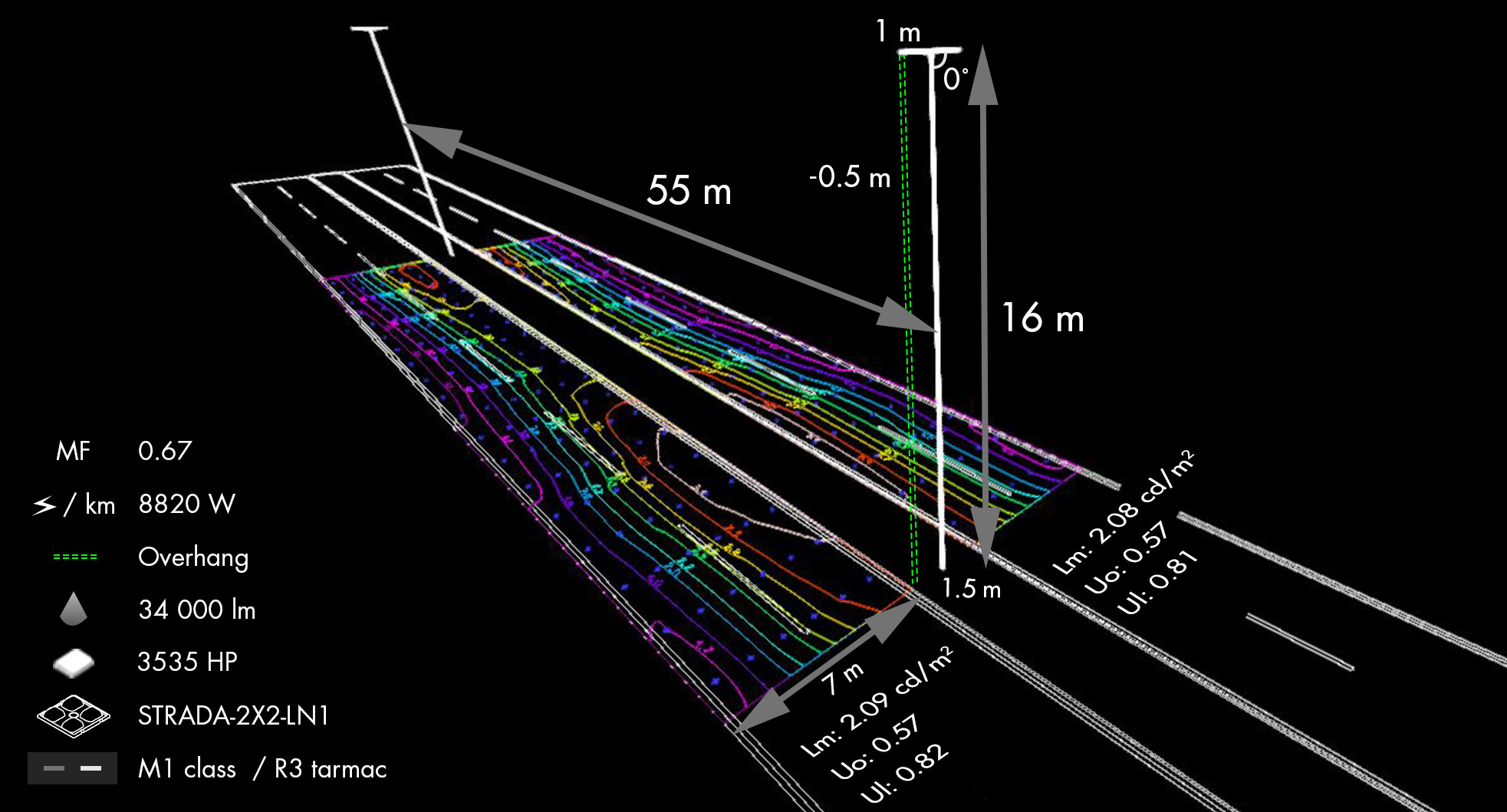

SETUP:
| Application: | Street lighting |
| Roadway class: | M1 |
| Tarmac: | R3 |
| Optics: | STRADA-2X2-LN1 |
| LED: | 3535 High-Power |
| Road width: | 7 m |
| Number of lanes: | 2 |
| Arrangement: | Median |
| Pole distance: | 55 m |
| Mounting height: | 16 m |
| Overhang: | -0.5 m |
| Boom angle: | 0° |
| Boom lenght: | 1 m |
| Pole distance from roadway: | 1.5 m |
| Maintenance factor: | 0.67 |
| Total lumen output/luminaire: | 34 000 lm |
| Power consumption/km: | 8820 W |
| Energy consumption/year: | 1960 kWh |

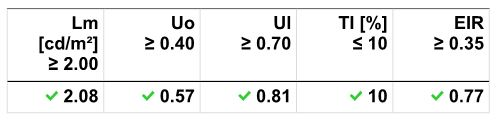

RESULTS (M1 class):
M1 Street lighting with STRADA-2X2-LN1
