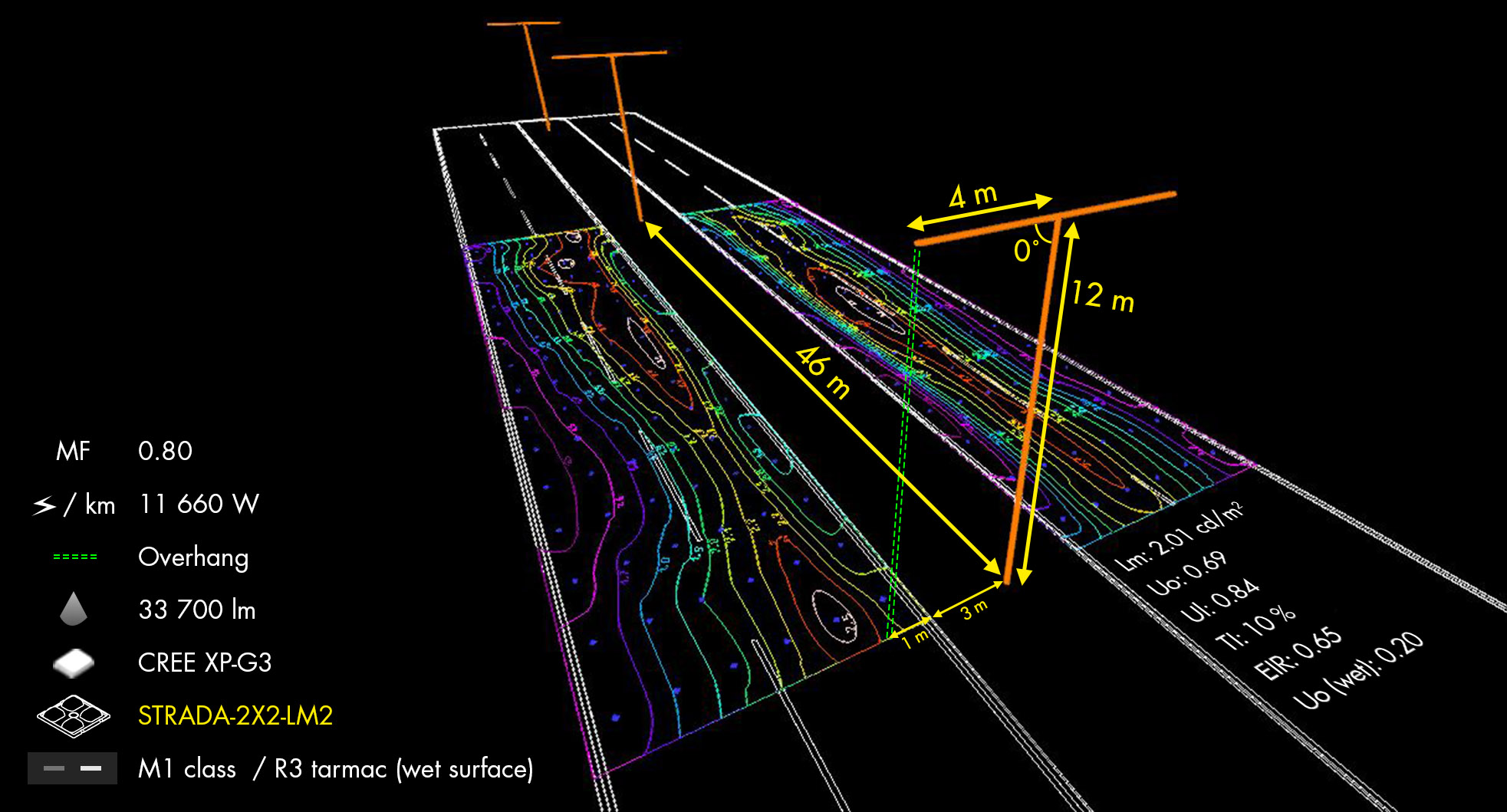

M1 Street lighting with STRADA-2X2-LM2
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Street lighting |
| Roadway class: | M1 |
| Tarmac: | R3 |
| Optics: | STRADA-2X2-LM2 |
| LED: | Flat 5050 |
| Road width: | 10 + 10 m |
| Number of lanes: | 4 |
| Arrangement: | Median |
| Pole distance: | 46 m |
| Mounting height: | 12 m |
| Overhang: | 1 m |
| Boom angle: | 0° |
| Boom lenght: | 4 m |
| Pole distance from roadway: | 3 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 33 700 lm |
| Power consumption/km: | 11 600 W |
| Energy consumption/year: | 2120 kWh |
RESULTS:
| Lm: | 2.01 cd/m2 |
| Uo: | 0.69 |
| Ul: | 0.84 |
| TI: | 10 % |
| EIR: | 0.65 |
| Uo (wet): | 0.20 |
