LUMINAIRE EXAMPLE
LINNEA
Versatile luminaires with free pitch design and wide LED board compatibility
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

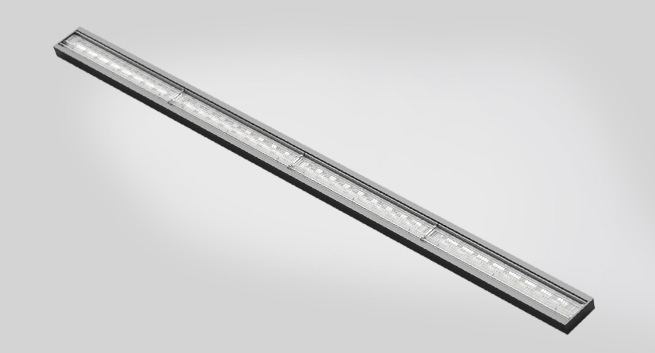

Linear example luminaire with LINNEA
SETUP
| Luminaire length: | 1150mm (4 lenses) |
| Beams: | 90, 60, O, Z2T25, ZT25, UP |
| LEDs: | 2835 Mid-power |
| Number of LEDs: | 96 pcs (24 pcs/lens) |
| Output: | 5900 lm (after optic) |
| Luminaire power: | 48 W |
| Luminaire efficiency: | 116 lm/W |

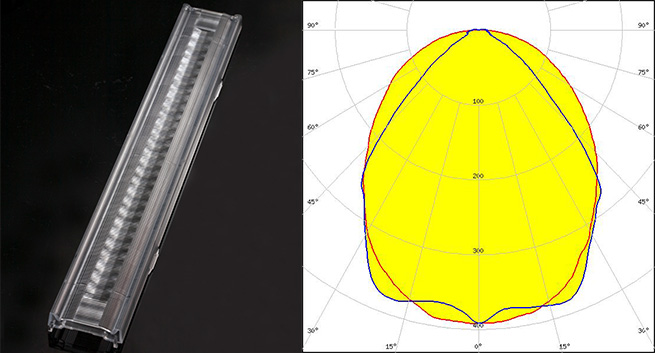

| LINNEA-90 Product listing | ||

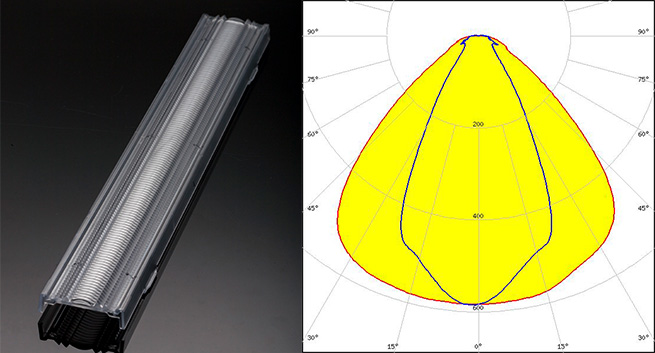

| LINNEA-60 Product listing | ||

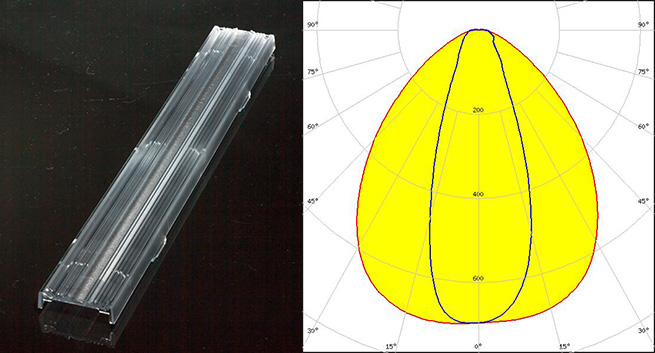

| LINNEA-O Product listing | ||

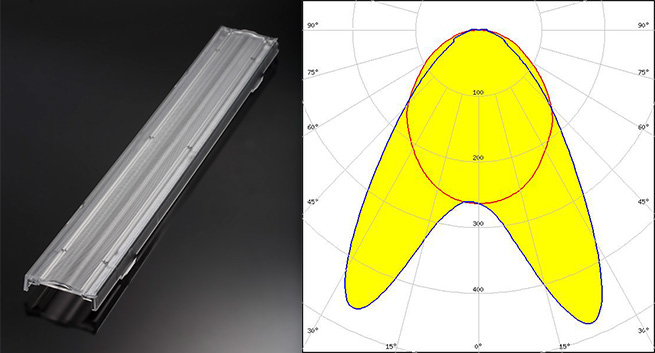

| LINNEA-Z2T25 Product listing | ||

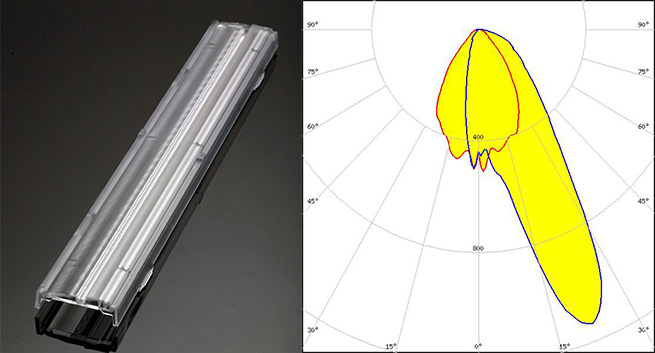

| LINNEA-ZT25 Product listing | ||

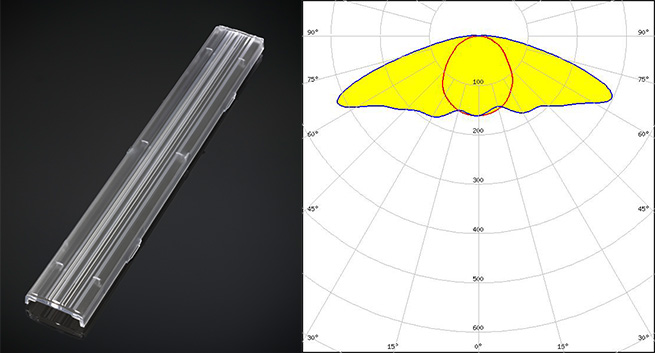

| LINNEA-UP Product listing |
LINNEA
Versatile luminaires with free pitch design and wide LED board compatibility
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
