LUMINAIRE EXAMPLE

CLAUDIA

Compact luminaires with excellent glare control and fixed LED pitch


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

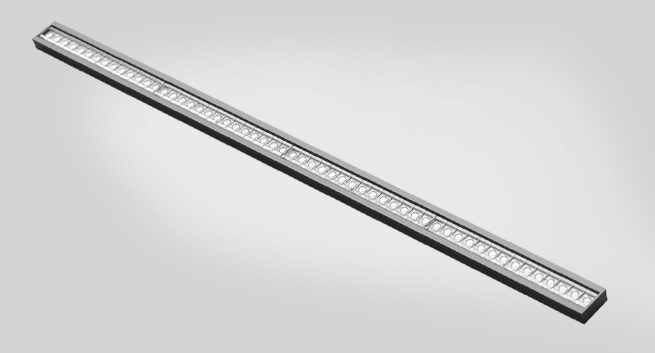

Linear luminaire with CLAUDIA

SETUP

Luminaire length:1150mm (4 lenses)

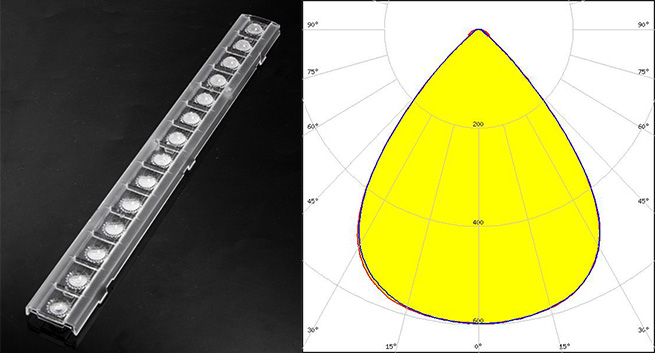

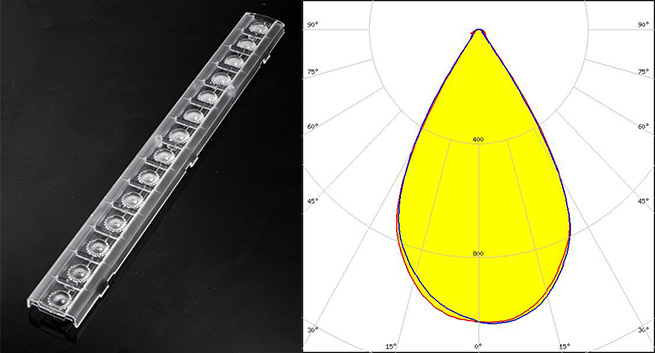

Beams:90, 60
LEDs:2835 Mid-power
Number of LEDs:112 pcs, (28 pcs/lens)
Output:7650 lm (after optic)
Luminaire power:56 W
Luminaire efficiency:130 lm/W

CLAUDIA

Compact luminaires with excellent glare control and fixed LED pitch


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
