APPLICATION EXAMPLE
Industrial lighting with FLORENCE2-Z90 and LINNEA-UP
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Industrial lighting |
| Luminaire type: | Linear down- and uplights |
| Downlight | |
| Optics: | FLORENCE2-Z90 |
| Luminous flux / LED module: | 650 lm |
| Uplight | |
| Optics: | LINNEA-UP |
| Luminous flux / LED module: | 650 lm |

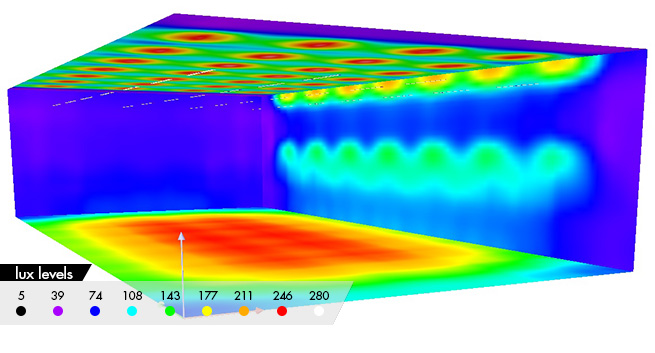

RESULTS:
| At 0.85 m height | |
| Average: | 621 lx |
| Min: | 199 lx |
| Max: | 835 lx |
| Uo: | 0.32 |
| UGR: | Max 17 |
| F16007_FLORENCE2-Z90 | ||
| F16048_LINNEA-UP |
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
