LUMINAIRE EXAMPLE
ILONA-RS with LensVector beam shaping lens
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

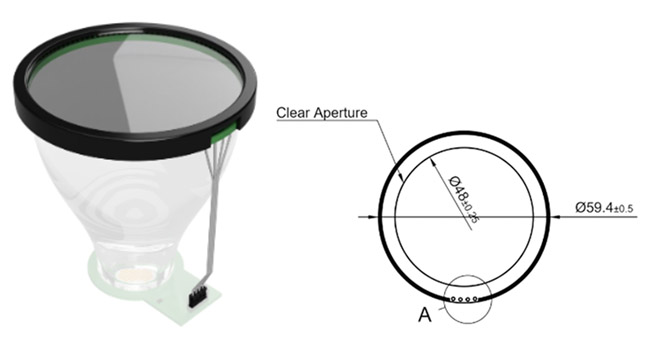

LensVector beam shaping lens
- ILONA beam can be controlled with LensVector from 10˚ to 50˚ (tested with Bridgelux V4 HD LES 4 mm and LensVector’s LV-S3 series)
- LensVector BeamShaper application can be installed on phone (iPhone, Android). Also traditional wall switchers available.
| lmax (cd/lm) | FWHM C0-C180 (°) | FWHM C90-C270 (°) | 10% C0-C180 (°) | 10% C90-C270 (°) | LOR (%) | |

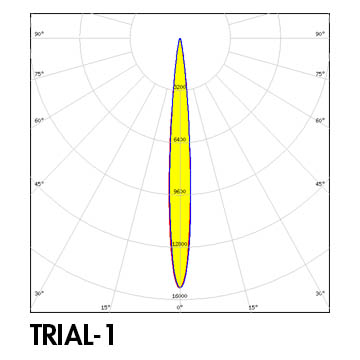

| Trial-1 | 15.306 | 10 | 10 | 20 | 20 | 77.5 |

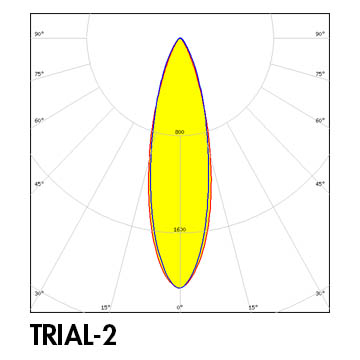

| Trial-2 | 2.055 | 30 | 27.5 | 58 | 61.5 | 76.4 |

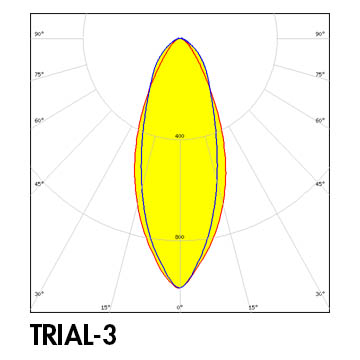

| Trial-3 | 0.988 | 44 | 37 | 84 | 102.5 | 74.1 |

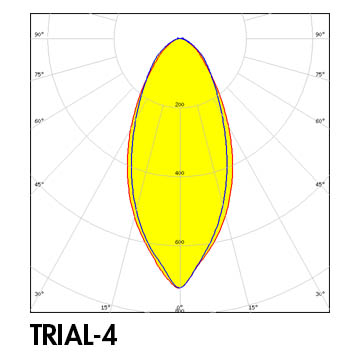

| Trial-4 | 0.724 | 51.5 | 47 | 107 | 112.5 | 72.6 |
| Trial-5 | 0.752 | 53 | 49.5 | 110 | 103.5 | 73.7 |
