APPLICATION EXAMPLE
Football pitch lighting with SPORT-2X2
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Lighting setup qualifies for post-curfew E2 (CIE 1917, IESNA 1999)
SETUP
| Application: | Football pitch lighting |
| Mounting height: | 16 m |
| Pitch size: | 110 x 72 m |
| Optics: | SPORT-2X2-FT6 (corners) & SPORT-2X2-FT6W (centre) |
| Luminous flux (Corner poles): | 220 klm |
| Luminous flux (Centre poles): | 254 klm |
| Total luminous flux (Luminaires): | 1390 klm |
| Total luminous flux (Leds): | 1520 klm |
| Number of optics (total): | 380 pcs |
| LED output: | 1000 lm |
| Number of LEDs (total): | 1520 pcs |
| Total power: | 10 400 W |
| Luminous efficacy: | 134 lm/W |
| Maintenance factor: | 0.7 |

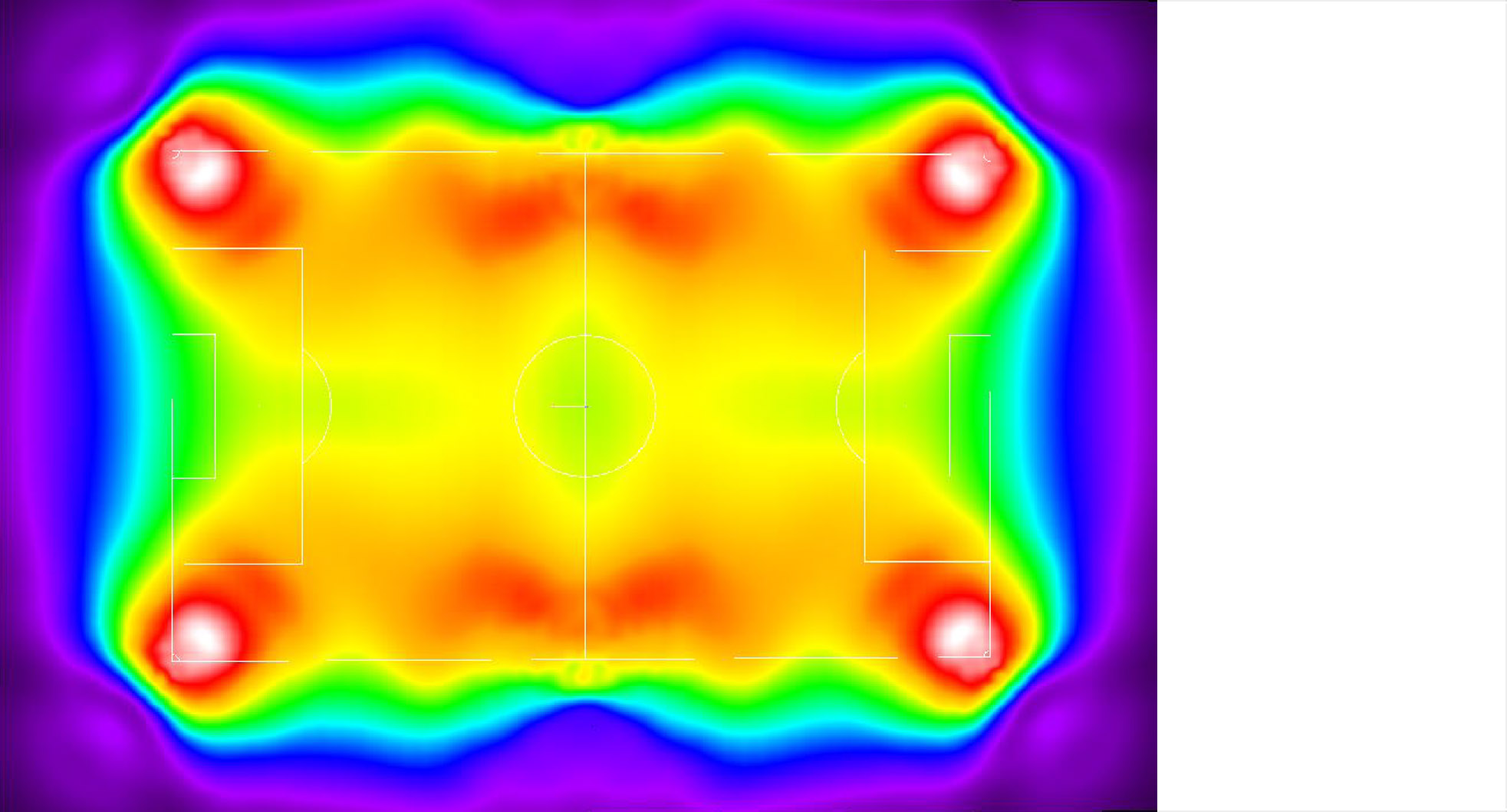

RESULTS

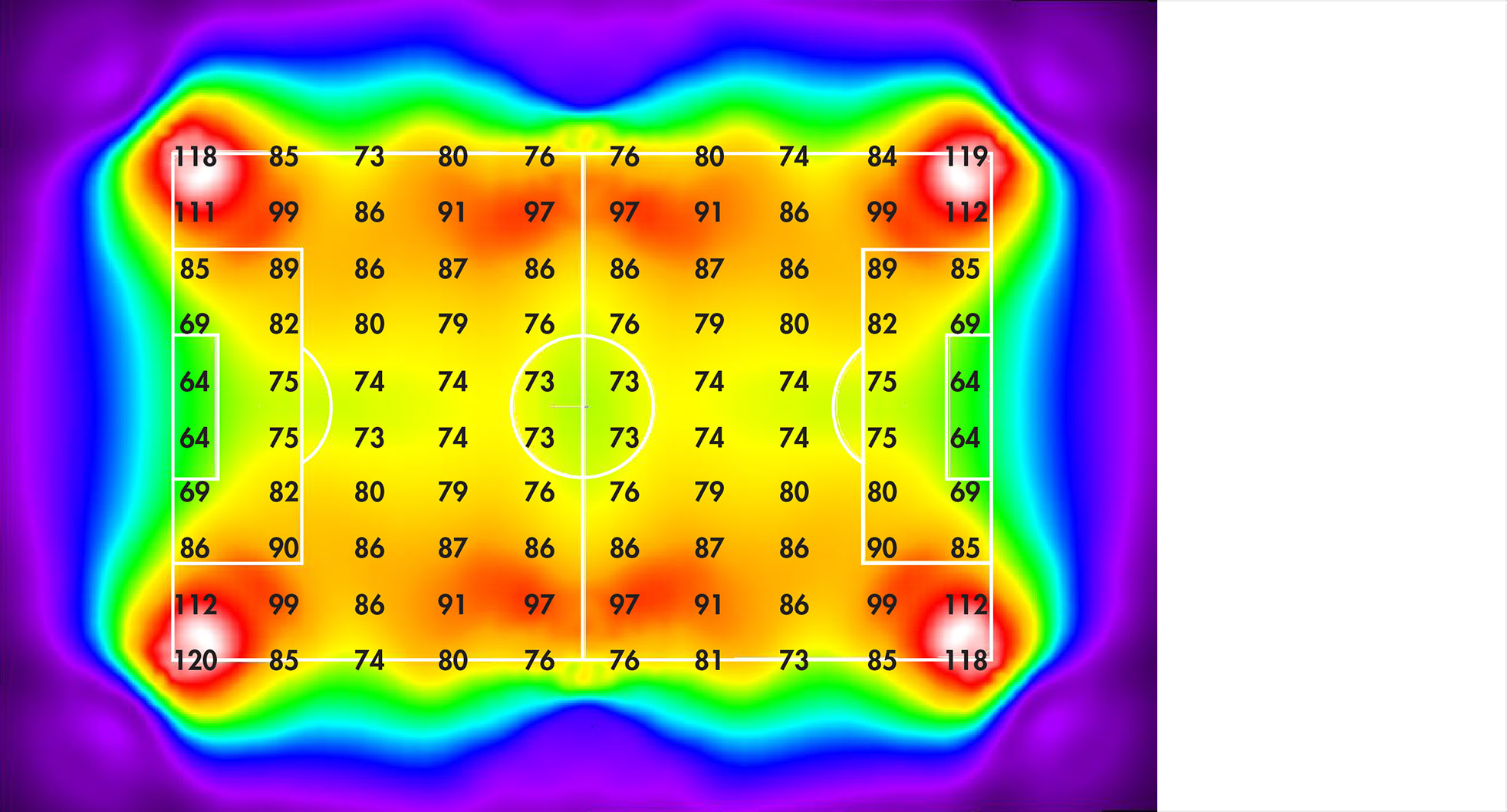

| E Average (requirement ≥75 lx): | 84 lx |
| E Min: | 64 lx |
| E Max: | 120 lx |
| Uo (requirement ≥0.7): | 0.77 |
| Upwards light ratio (ULR): | 1.0 % |
| Source intensity at 140 m: | Max 0.3 kcd |

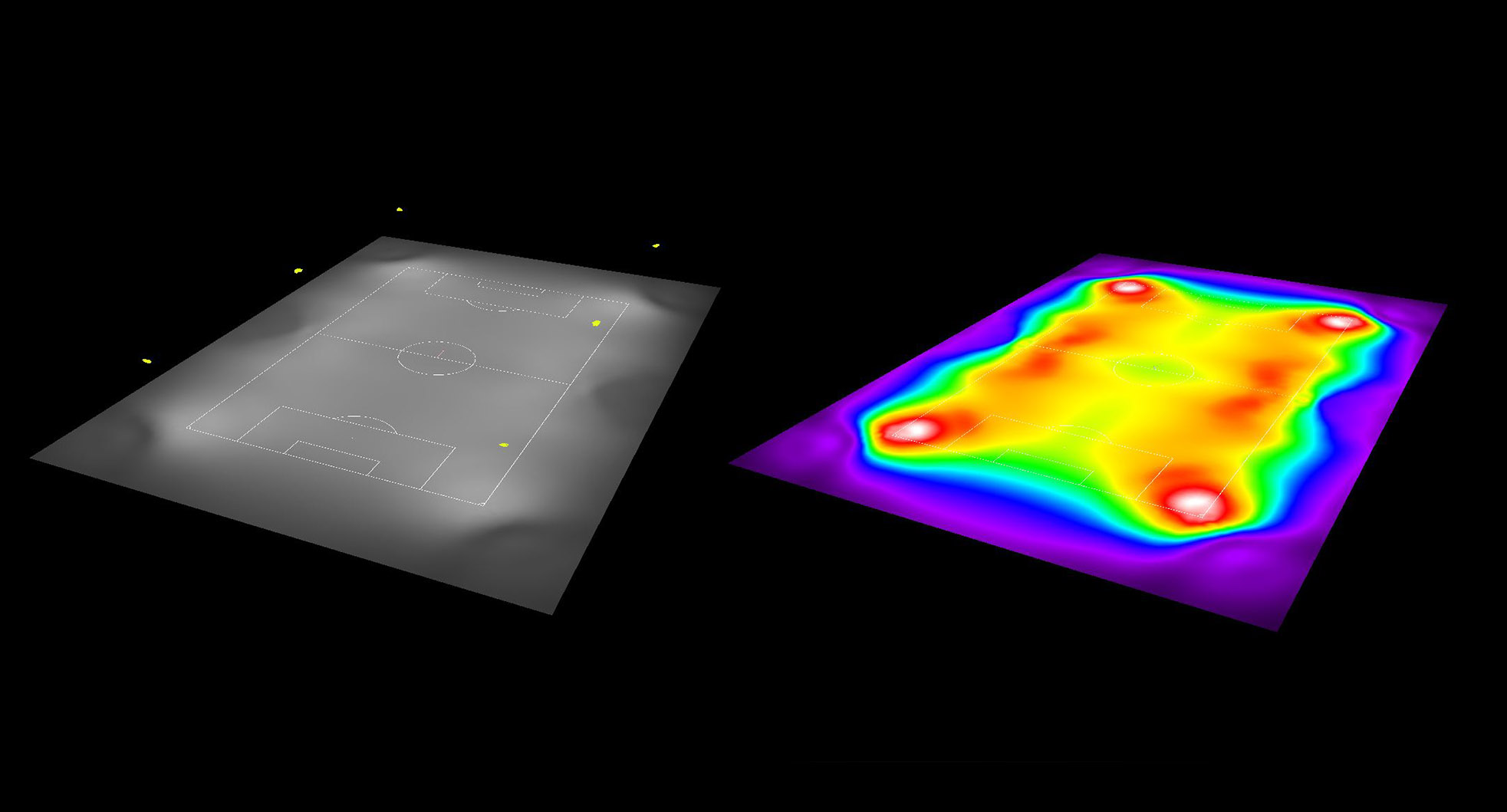

Football pitch lighting with SPORT-2X2
