APPLICATION EXAMPLE
Football field lighting with SPORT-2X2-FT6.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Sports lighting |
| Optics: | SPORT-2X2-FT6 |
| Number of poles: | 6 pcs |
| Mounting height: | 18 m |
| Luminous flux (total): | 6000 klm |
| Power (total): | 52 140 W |

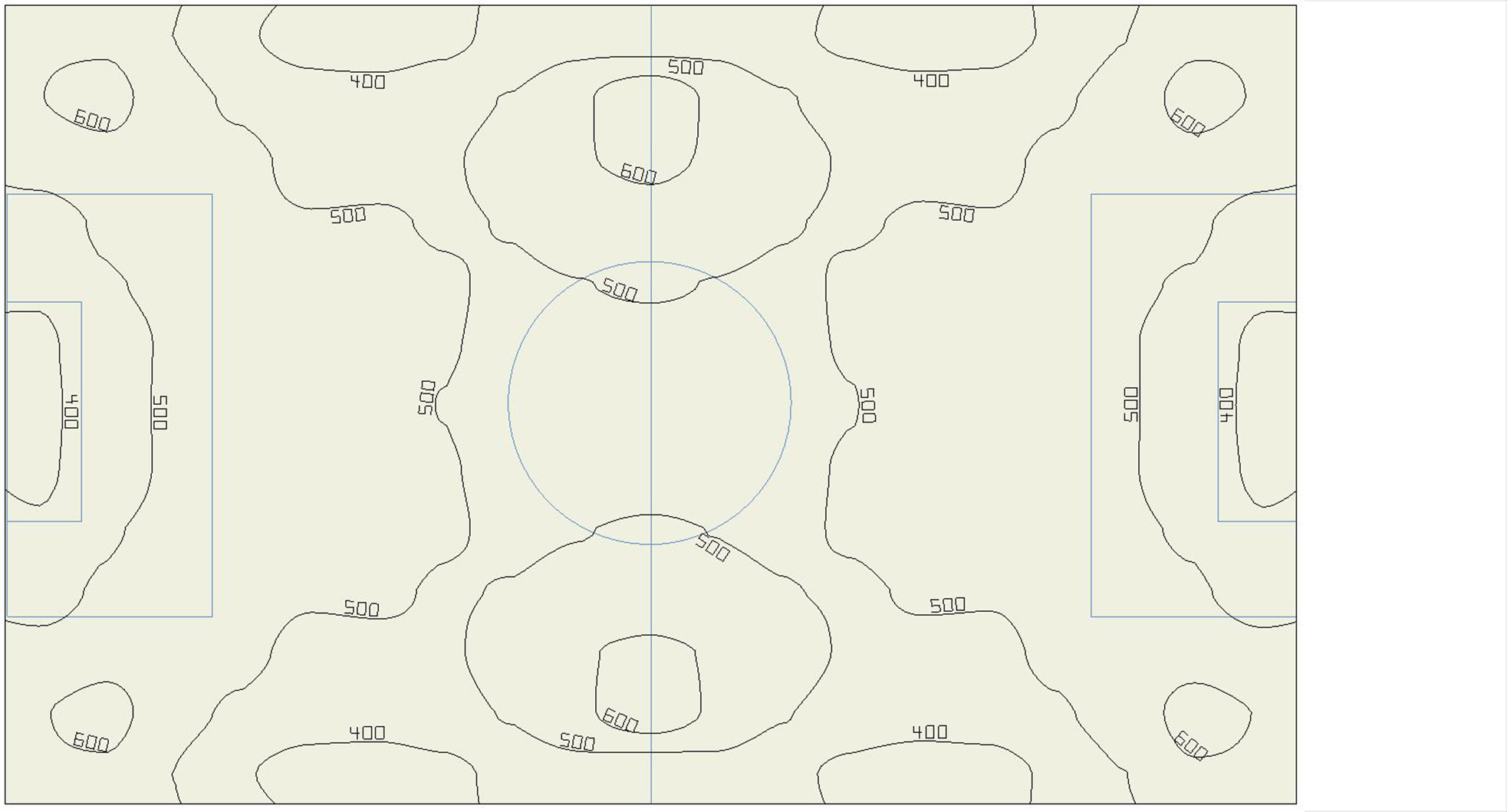

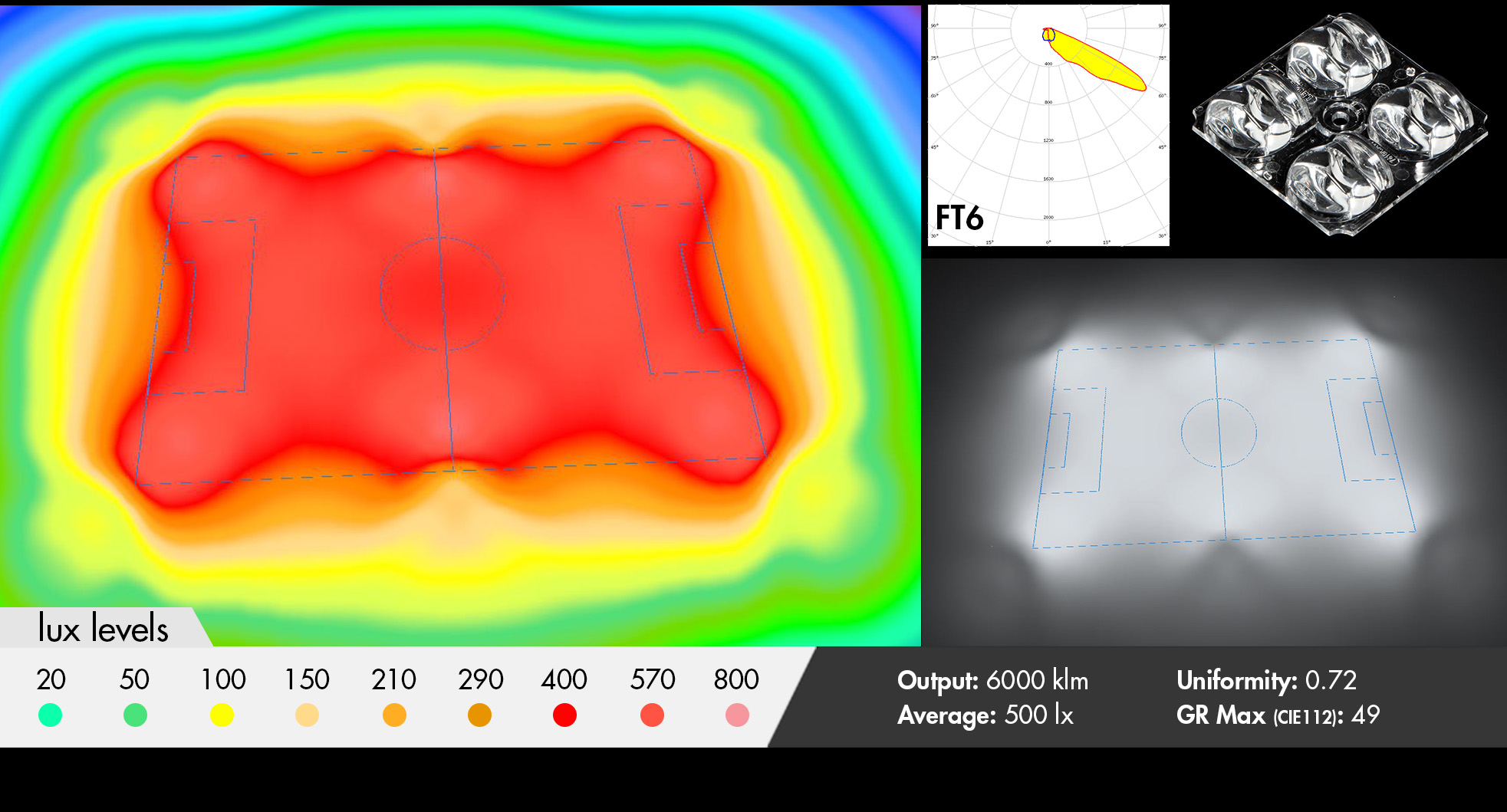

RESULTS:
| Average: | 500 lx |
| Min: | 358 lx |
| Max: | 664 lx |
| Min/Average: | 0.72 |
| GR Max (CIE112): | 49 |
Football field lighting with SPORT-2X2-FT6.
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
