APPLICATION EXAMPLE

Football field lighting with JENNY-FT45


For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

The advantages of using asymmetric light instead of symmetric when designing luminaires for sports fields.

+ No need for aiming individual luminaires in a pole
+ Reduce of skyglow
+ More efficient
+ Easier to install
+ Easier to design

SETUP:

Application: Sports field lighting
Optics: JENNY-FT45
Luminous flux (Luminaire) 114 klm
Number of luminaires in a pole: 10 pcs
Number of optics in a luminaire: 60 pcs
Optic grid in luminaire: 6 x 10 pcs
Number of poles: 8 pcs
Pole spacing: 28 m
Mounting height: 18 m
Maintenance factor: 0.8

RESULTS:

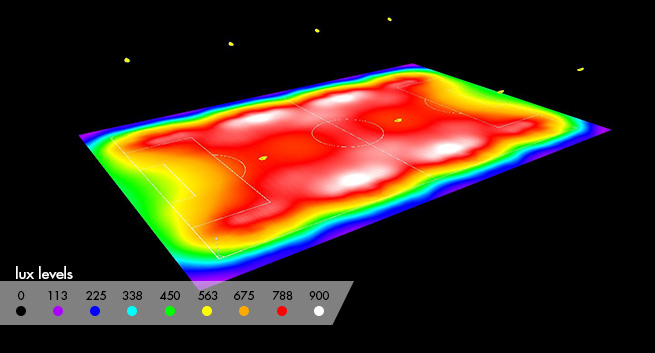

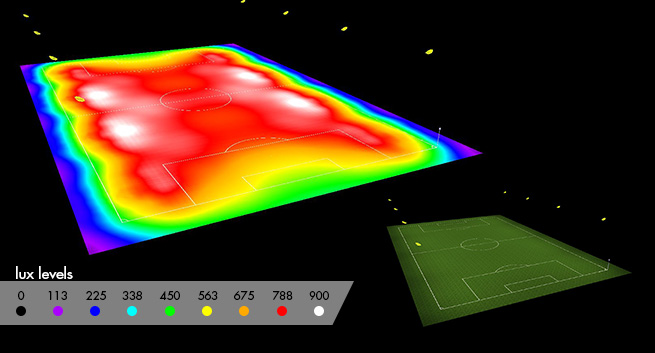

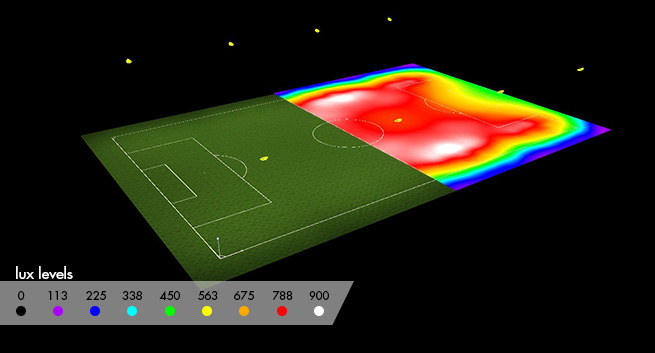

Football field - horizontal. Meets the FIFA Class III (Non-televised) National game requirements.
Average: 751 lx
Average requirement (Class III): ≥750 lx
Uo: 0.71
Uo requirement (Class III): ≥0.70
GO TO PRODUCT CARDS
F15596_JENNY-FT45
F15574_JENNY-8X1-FT45
