APPLICATION EXAMPLE
Emergency equipment lighting with EMERALD-FS & -ER1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

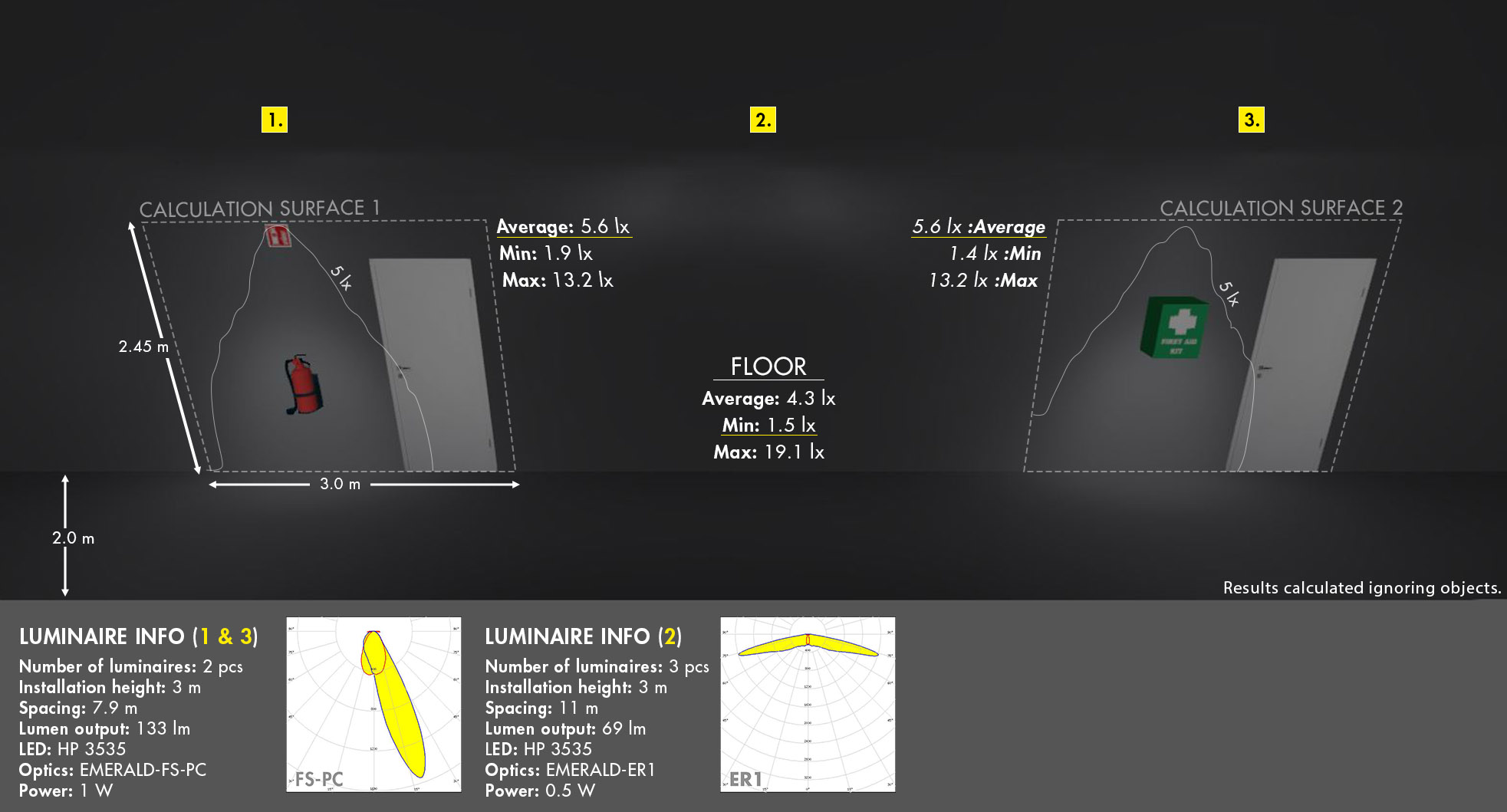

SETUP:
| Application: | Emergency lighting |
| LED: | HP 3535 |
| Installation height: | 3 m |
| Luminaire info (1 & 3) | |
| Optics: | EMERALD-FS |
| Number of luminaires: | 2 pcs (One for each equipment) |
| Spacing: | 7.9 m |
| Lumen output: | 133 lm |
| Power: | 1 W |
| Luminaire info (2) | |
| Optics: | EMERALD-ER1 |
| Number of luminaires: | 3 pcs (Along the hallway) |
| Spacing: | 11 m |
| Lumen output: | 69 lm |
| Power: | 0.5 W |

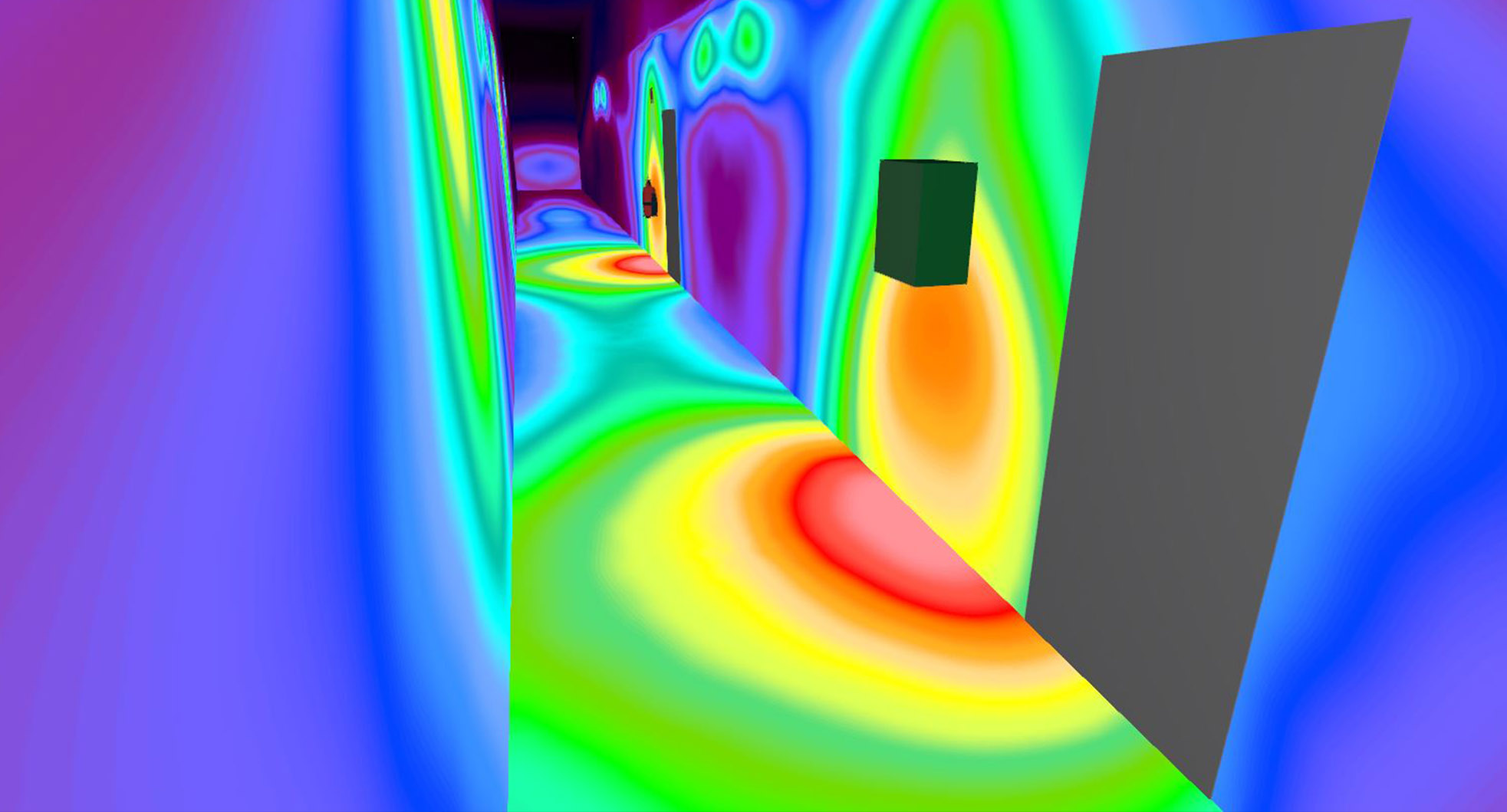

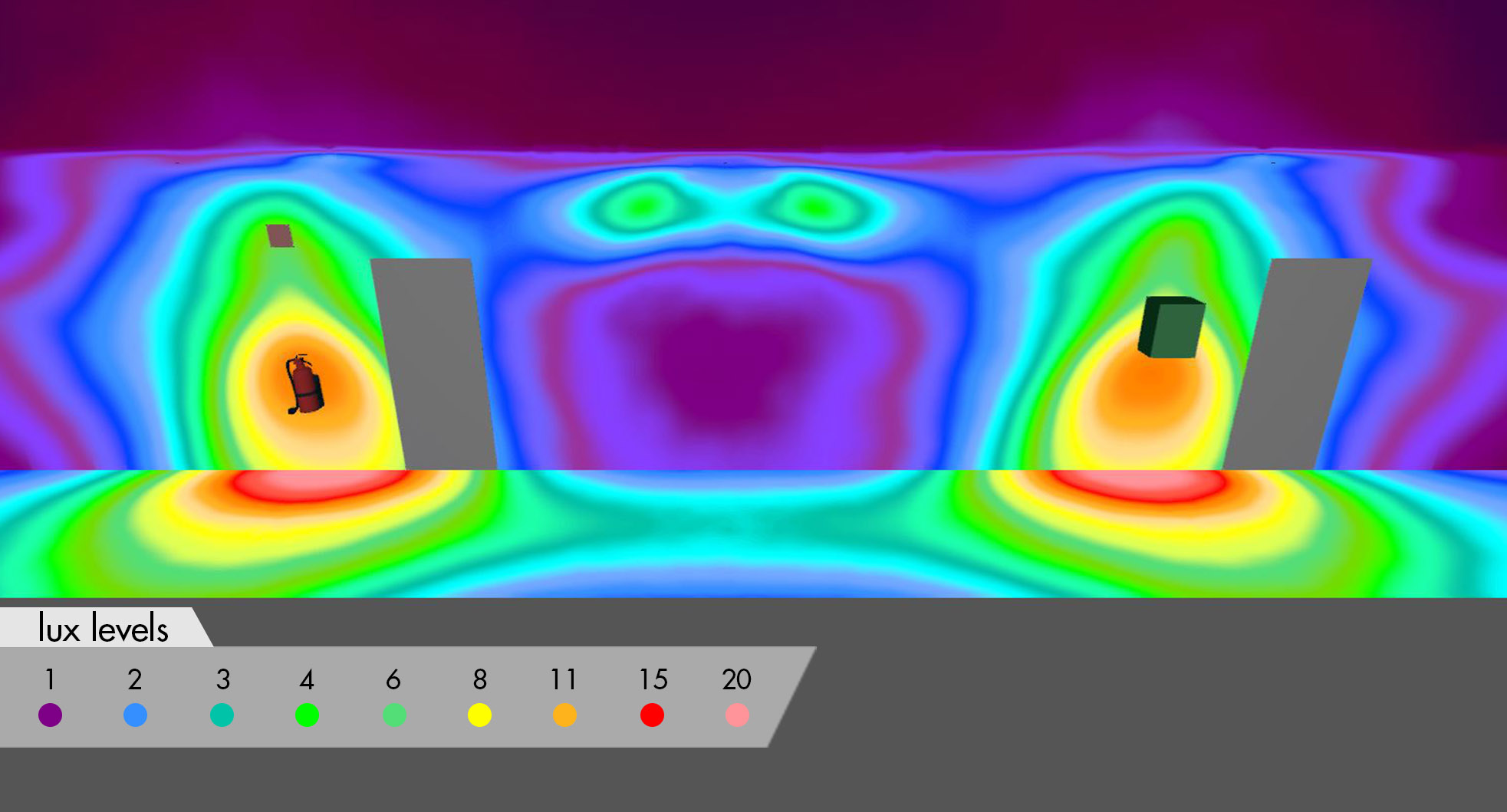

RESULTS:
| Results are calculated ignoring objects. | |
| Calculation surface 1 | |
| Average: | 5.6 lx |
| Min: | 1.9 lx |
| Max: | 13.2 lx |
| Calculation surface 2 | |
| Average: | 5.6 lx |
| Min: | 1.4 lx |
| Max: | 13.2 lx |
| Floor | |
| Average: | 4.3 lx |
| Min: | 1.5 lx |
| Max: | 19.1 lx |
| C18138_EMERALD-FS-PC | ||
| CA18139_EMERALD-FS-PC | Variant with installation tape. | |
| C17718_EMERALD-ER1-PC | ||
| CA17721_EMERALD-ER1-PC | Variant with installation tape. |
