Luminaire example
Downlight luminaires with DAISY-1X1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

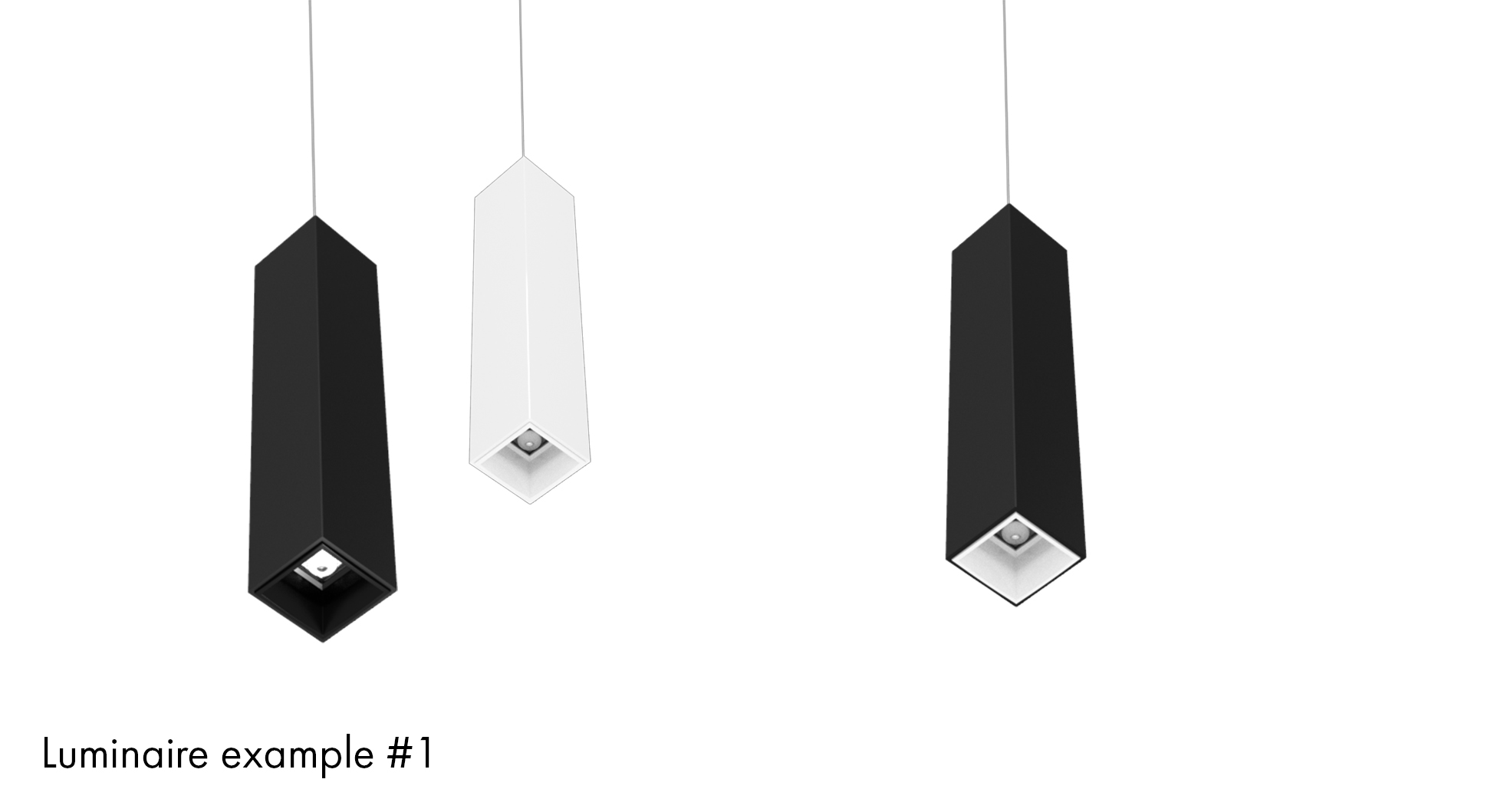

Luminaire example #1
| Optics: | DAISY-1X1 |
| Number of optics: | 1 |
| Luminaire size: | 40 x 40 mm |
| LED: | 2835 Mid-power |
| LEDs/each optical element: | 4 |
| Luminous flux (luminaire): | 400 lm (118 lm/LED) |

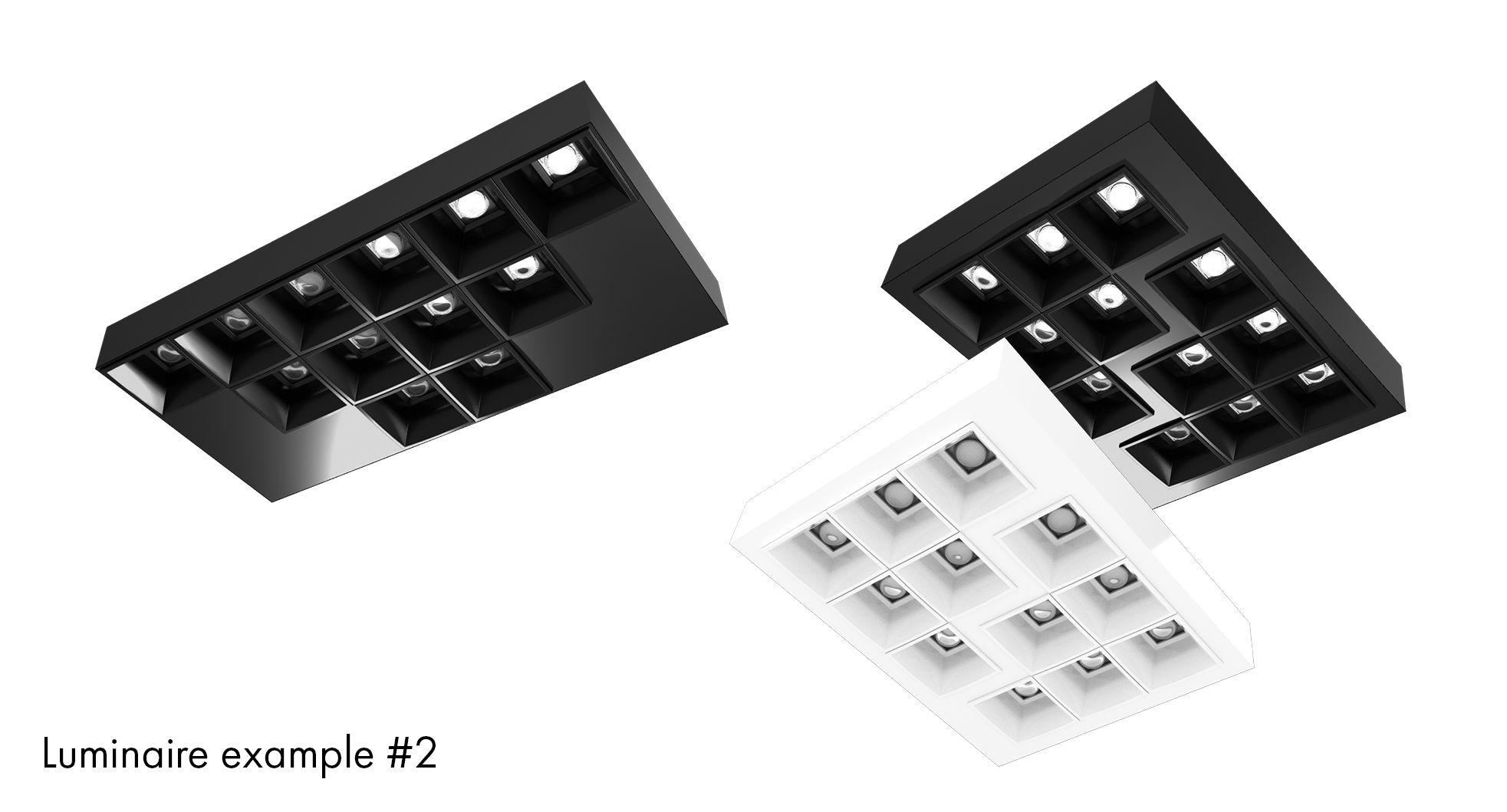

Luminaire example #2
| Optics: | DAISY-1X1 |
| Number of optics: | 12 |
| Luminaire size: | 120 x 160 mm |
| LED: | 2835 Mid-power |
| LEDs/each optical element: | 4 |
| Luminous flux (luminaire): | 1600 lm (37.5 lm/LED) |

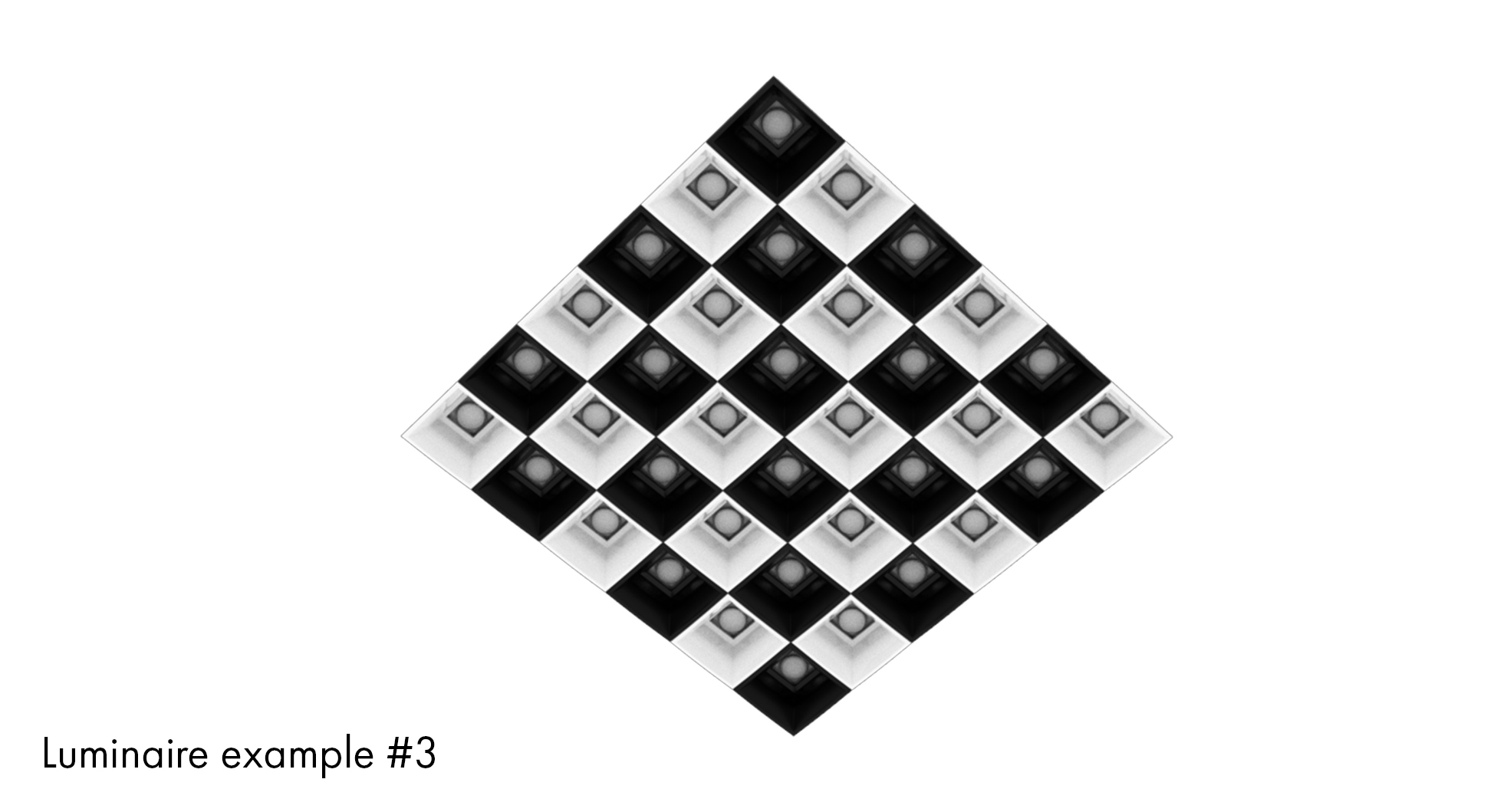

Luminaire example #3
| Optics: | DAISY-1X1 |
| Number of optics: | 36 |
| Luminaire size: | 240 x 240 mm |
| LED: | 2835 Mid-power |
| LEDs/each optical element: | 4 |
| Luminous flux (luminaire): | 4500 lm (37.5 lm/LED) |
Downlight luminaires with DAISY-1X1
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
The information contained herein is the property of LEDiL Oy, Joensuunkatu 13, FI-24100 SALO, Finland and is subject to change without notice. Please visit lediloptics.cn for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
