APPLICATION EXAMPLE

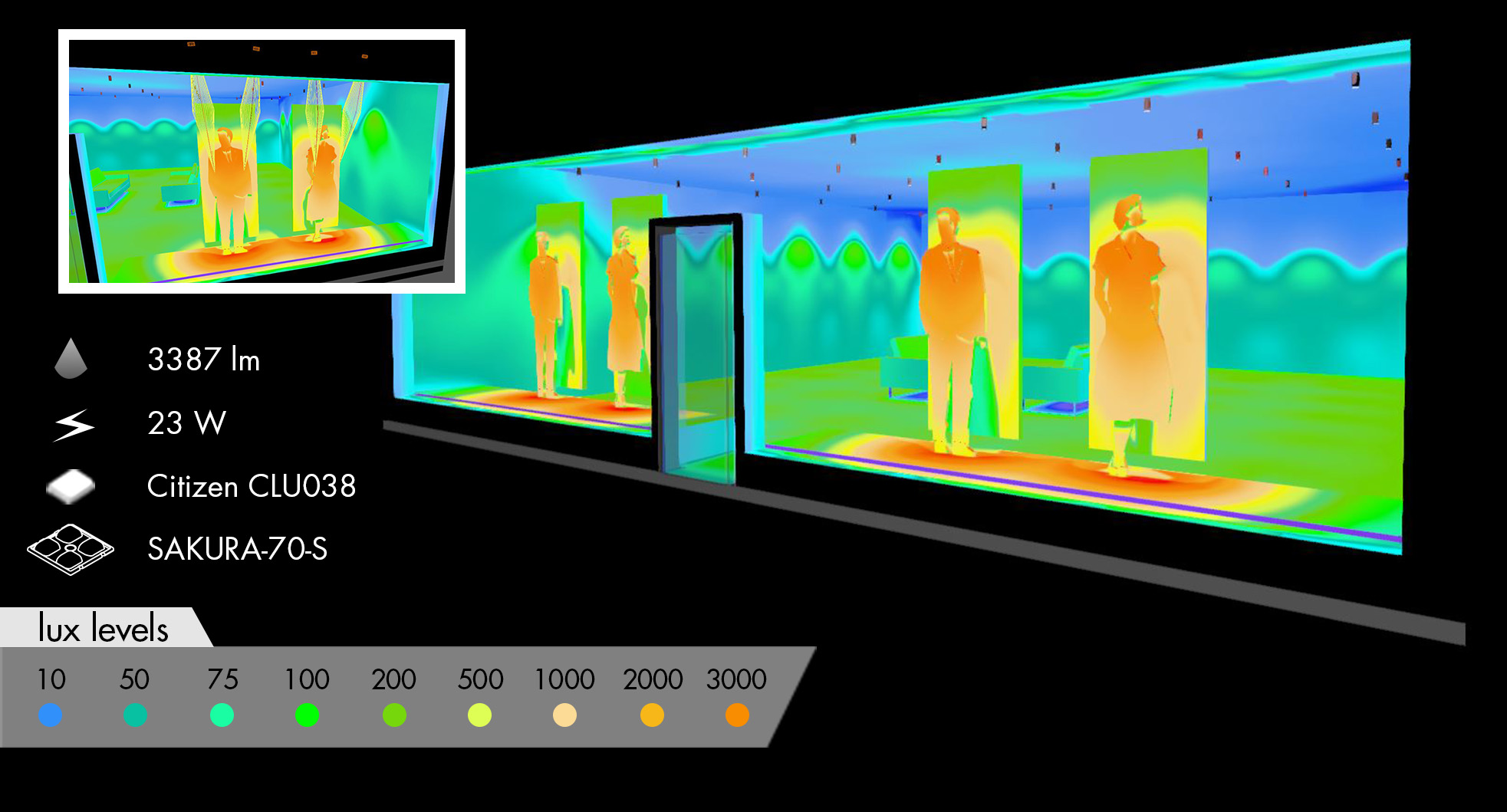

Display window lighting with SAKURA-70-S
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Retail lighting |
| Optics: | SAKURA-70-S |
| LED: | COB - 14.5 mm LES |
| Efficiency (Optics): | 90 % |
| Installation height: | 3 m |
| Distance to model head (y): | 0.9 m |
| Distance to model feet (y): | 2.7 m |
| Number of optics in a luminaire: | 1 pcs |
| Luminaire output: | 3387 lm |
| Number of luminaires/model: | 2 pcs |
| Luminaire power: | 23 W |

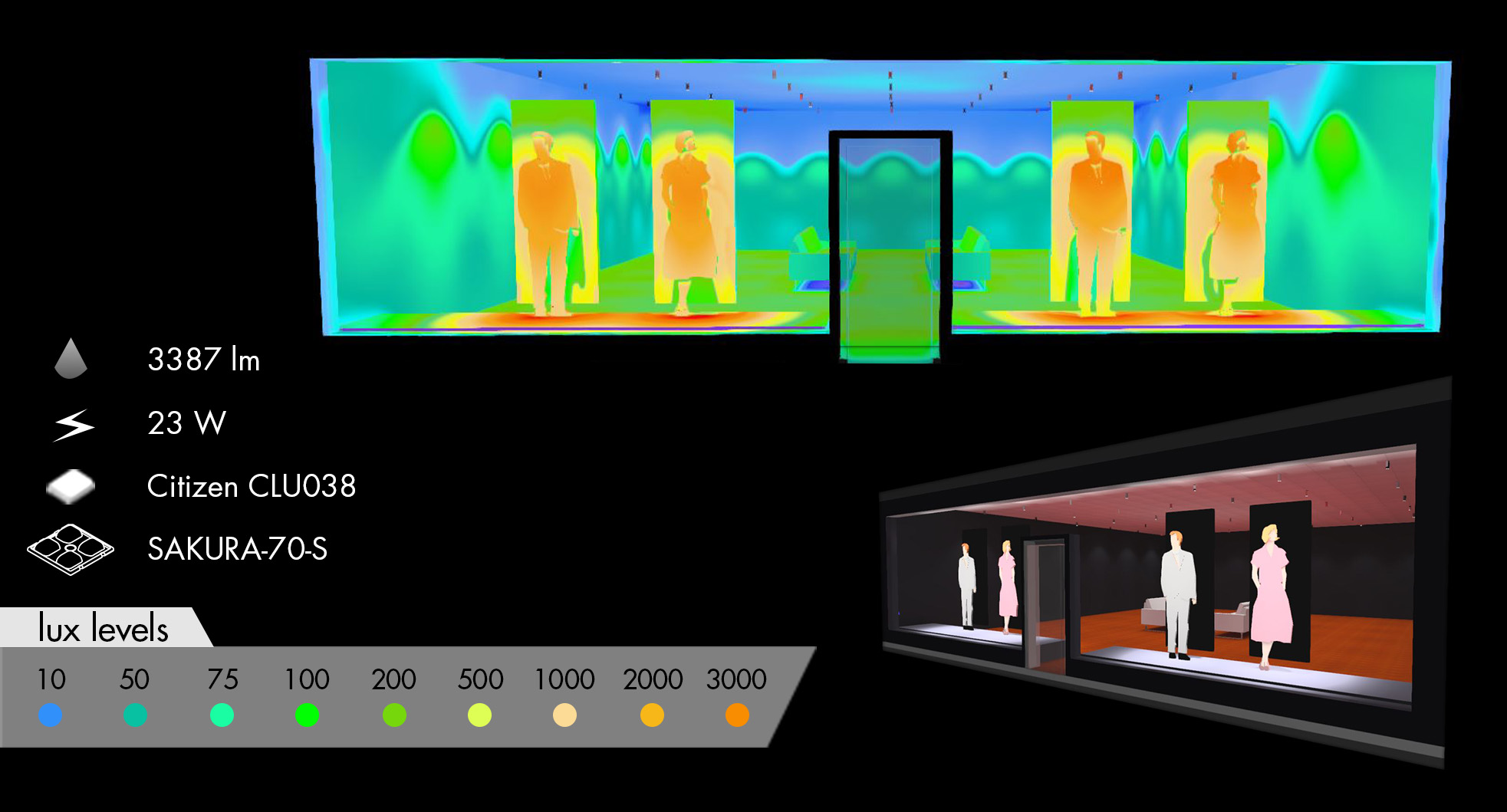

Display window lighting with SAKURA-70-S
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
