APPLICATION EXAMPLE

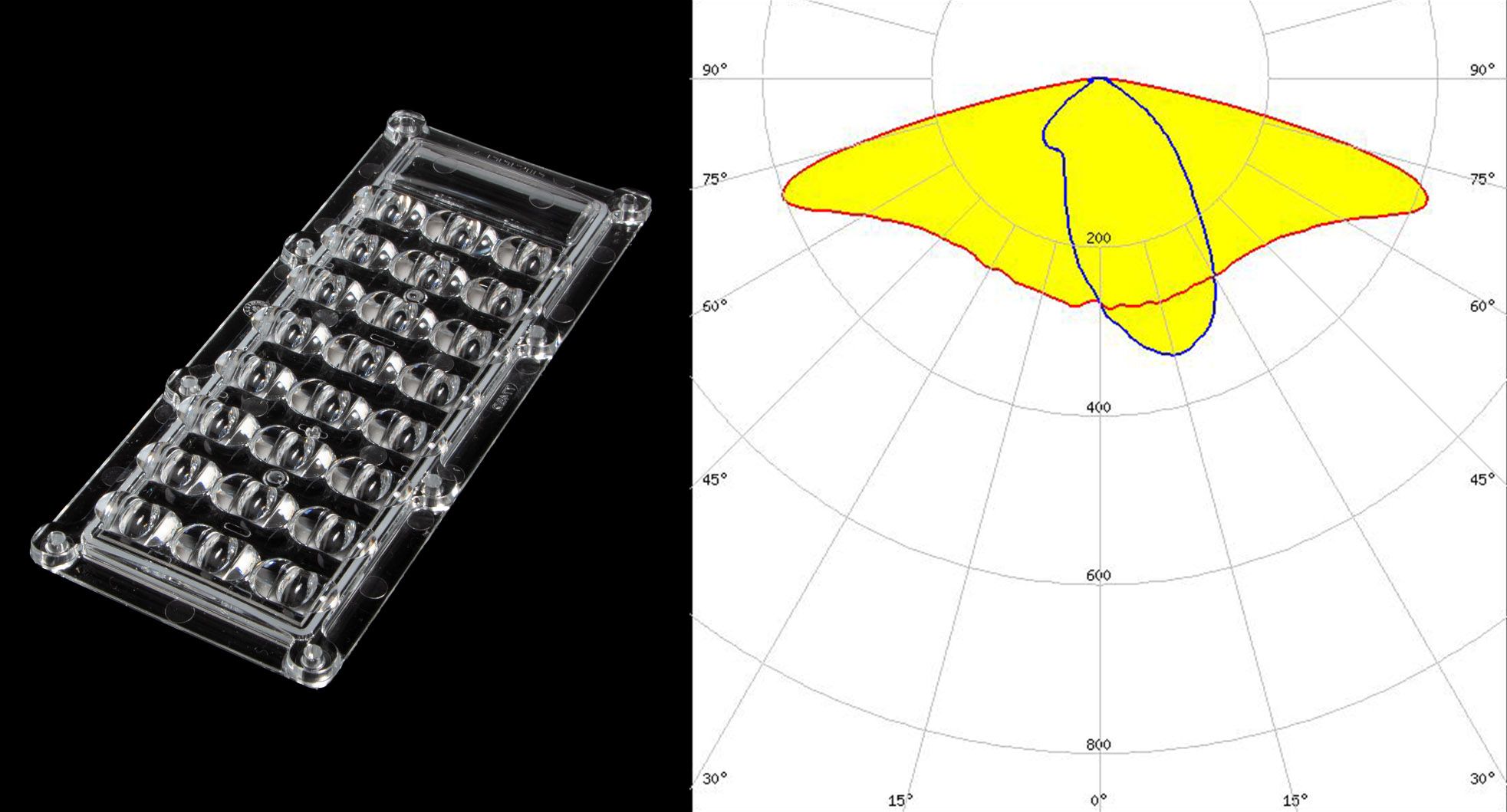

C3 Street lighting with STRADA-IP-24-T2-M-PC
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Street lighting |
| Roadway class: | C3 |
| Tarmac: | R3 |
| Optics: | STRADA-IP-24-T2-M-PC |
| LED: | Flat 5050 |
| Road width: | 10 m |
| Number of lanes: | 2 |
| Pole distance: | 35 m |
| Mounting height: | 8 m |
| Overhang: | 1.5 m |
| Boom angle: | 0° |
| Boom lenght: | 0 m |
| Pole distance from roadway: | -1.5 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 10 000 lm |
| Power consumption/km: | 2085 W |
| Energy consumption/year: | 288 kWh |

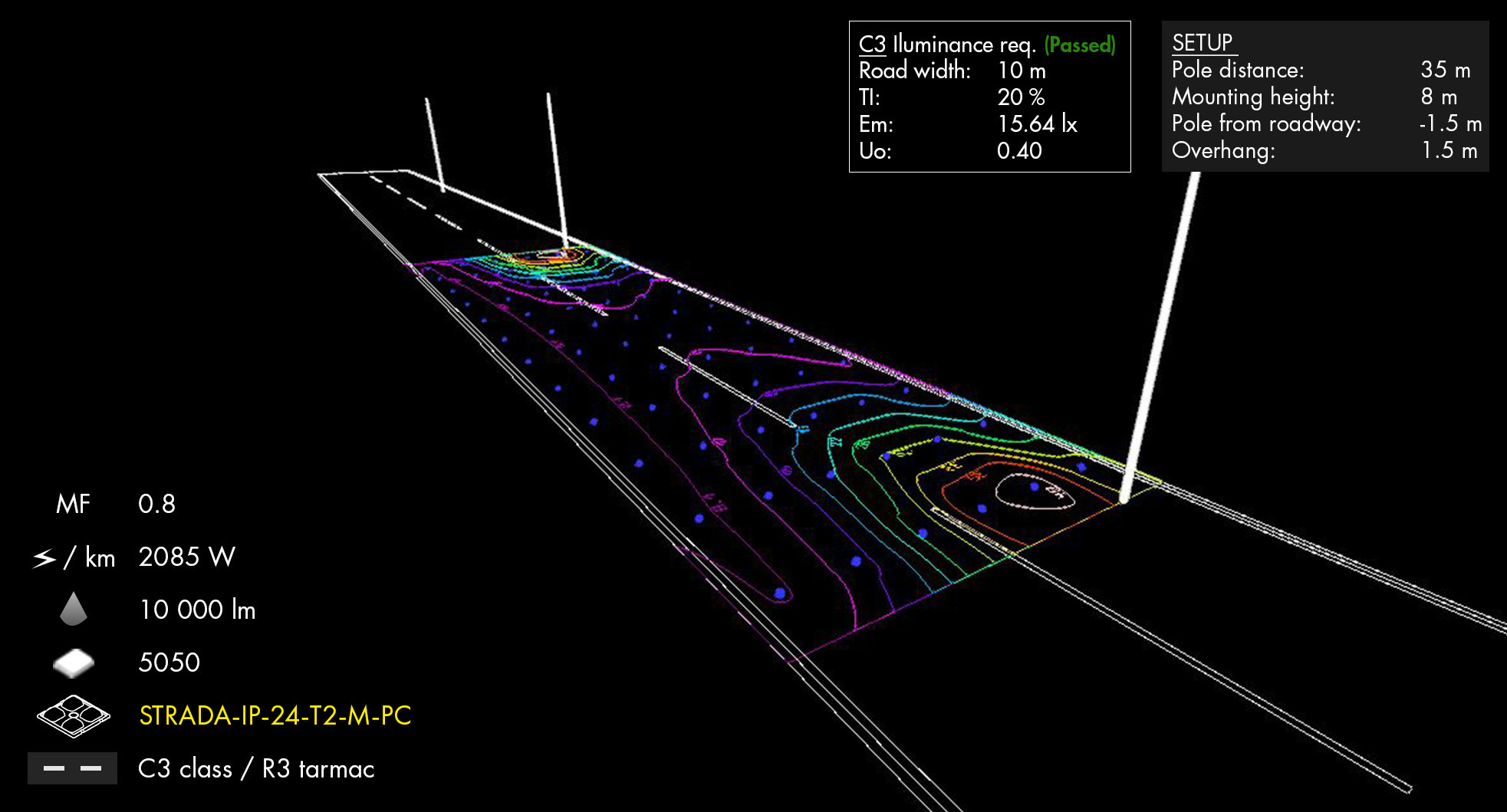

RESULTS:
| C3 illuminance requirements: | Passed |
| TI: | 20 % |
| Em: | 15.64 lx |
| Uo: | 0.40 |
C3 Street lighting with STRADA-IP-24-T2-M-PC
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
