APPLICATION EXAMPLE
Billboard lighting with BILLIE-A
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
SETUP:
| Application: | Billboard lighting |
| Optics: | BILLIE-A |
| Billboard size: | 5.0 x 2.5 m |
| Installation height: | 0.75 m above the billboard |
| Distance from billboard: | 1.2 m |
| Luminaire spacing: | 1.3 m |

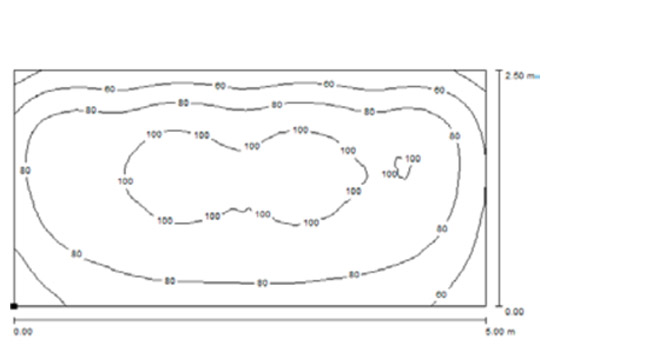

RESULTS:
| Average: | 83 lx |
| Max: | 109 lx |
| Uo: | 0.34 |
| FCA13329_BILLIE-A | ||
| FN13888_BILLIE-A |
