APPLICATION EXAMPLE
2-lane Street lighting with C17922_STRADA-2X2-5050-T2-C3
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support

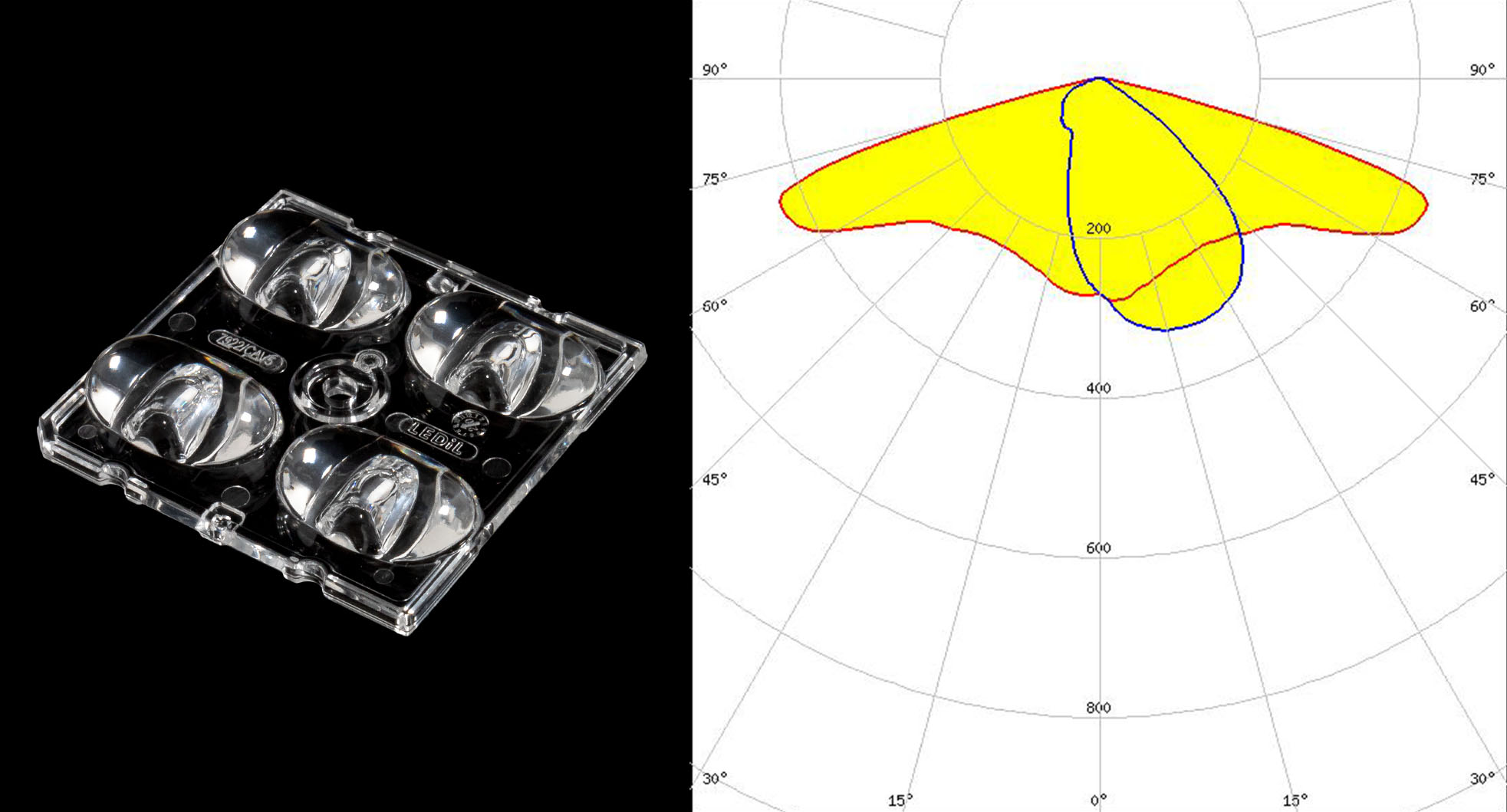

SETUP:
| Application: | Street lighting |
| Optics: | C17922_STRADA-2X2-5050-T2-C3 |
| LED: | 5050 High-Power |
| Efficiency (Optics + 4 mm protective plate): | 84 % |
| Road width: | 8 m |
| Sidewalk width: | 2 m |
| Number of lanes: | 2 |
| Pole distance: | 35 m |
| Mounting height: | 8 m |
| Overhang: | 1.5 m |
| Tilt: | 5° |
| Maintenance factor: | 0.8 |
| Luminous flux (Luminaire): | 12 600 lm |
| Power consumption (Luminaire): | 94 W |

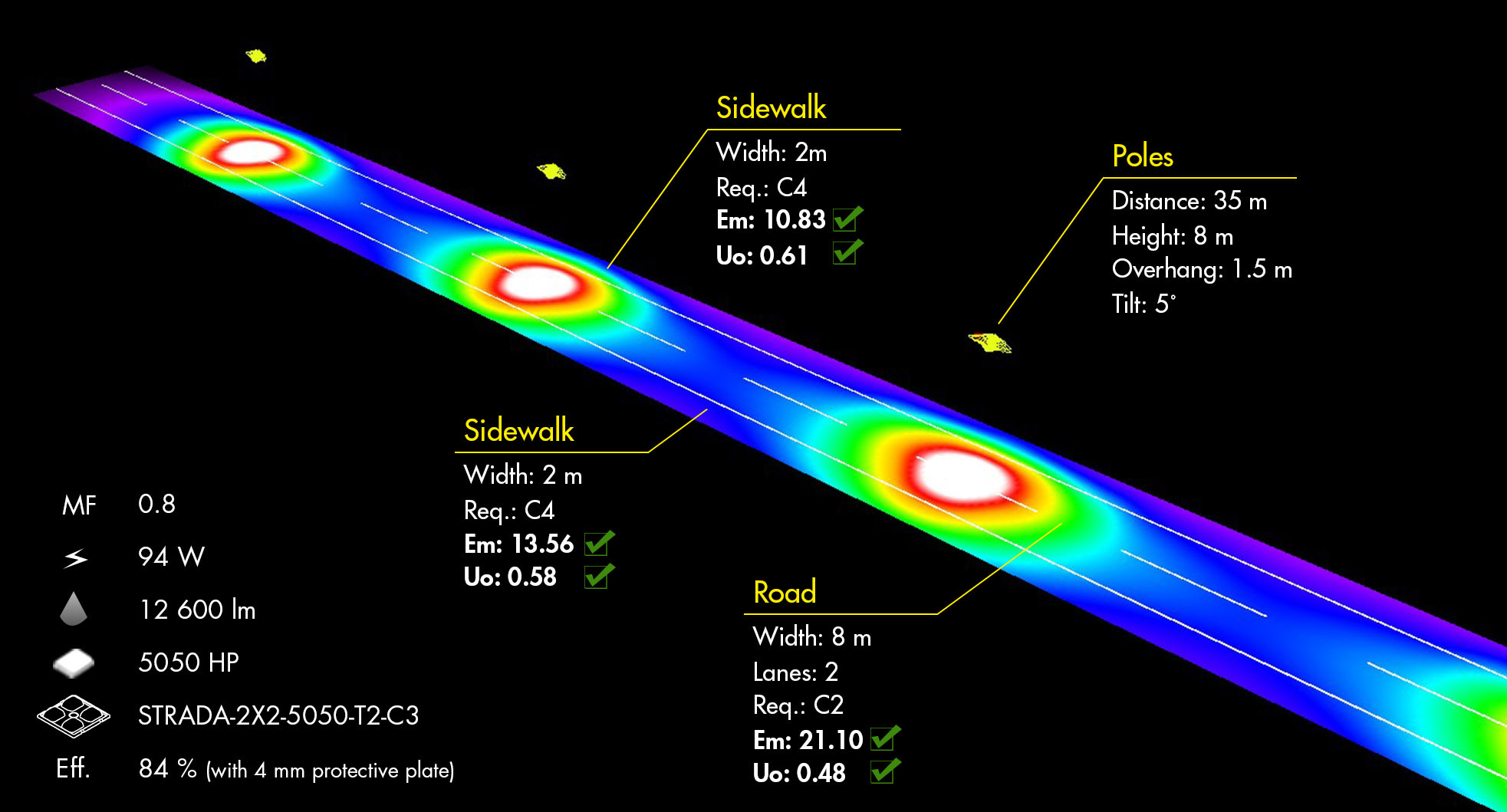

RESULTS:
| Road | |
| Em: | 21.10 |
| Em requirement (C2): | ≥20 |
| Uo: | 0.48 |
| Uo requirement (C2): | ≥40 |
| Sidewalks | |
| Em: | 13.56 / 10.83 |
| Em requirement (C4): | ≥10 |
| Uo: | 0.58 / 0.61 |
| Uo requirement (C4): | ≥40 |
2-lane Street lighting with C17922_STRADA-2X2-5050-T2-C3
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
